The Hager modular change-over switch 3P+N 20A ensures safe source transfer for three-phase+neutral circuits in residential and commercial boards. Rated 380-415 V, 20 A, AC-1 13 kW, with 8 kV impulse withstand, Ui 800 V, Icw 1.26 kA and up to 50 kA Icc with gl/gG fuses. Compact 8-module unit with short rotary handle, interlockable, IP20, 50-60 Hz, −20…70 °C. Accepts 1.5-16 mm² conductors.

EAN

3250613140540

Packaging

1 Piece

Earth leakage add-on block 4P 63A 300mA Type AC S double output HIM402

Accessories
Technical properties
Environmental value
Documentations
More products

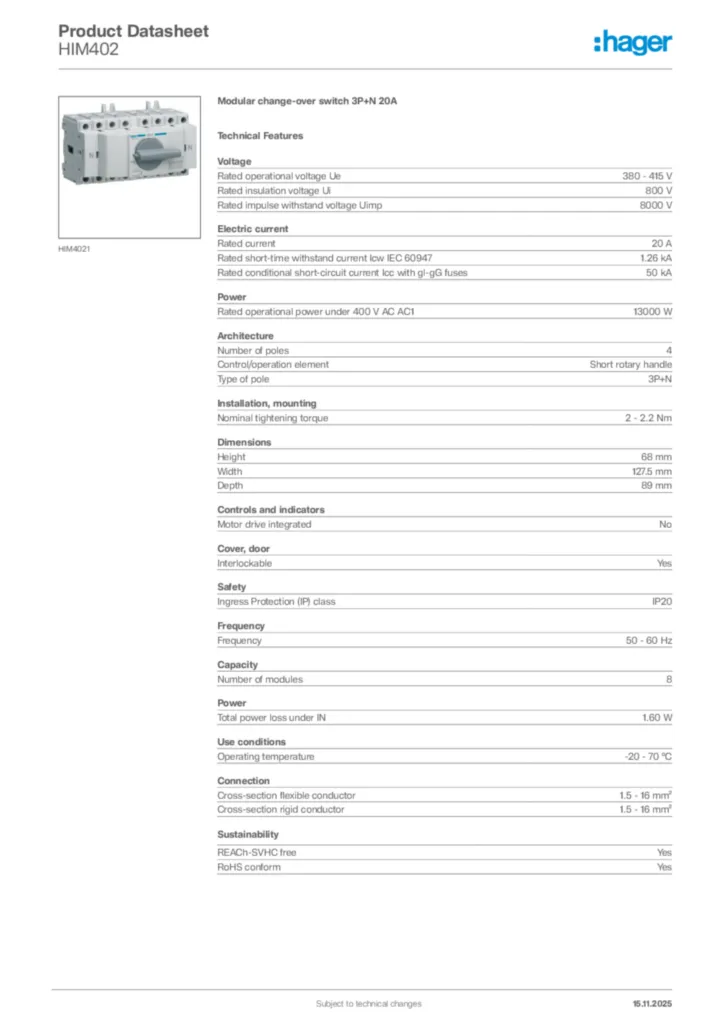

Download the data sheet

Complete your system

Switch operating shaft 3 products available
Terminal cover 1 products available
Door coupling handle for switchgear 1 products available
Auxiliary contact block 2 products available
Accessories/spare parts for low-voltage switch technology 1 products available

Technical properties

Rated operational voltage Ue

380 - 415 V
Rated insulation voltage Ui

800 V
Rated impulse withstand voltage Uimp

8000 V

Rated current IN

20 A
Rated short-time withstand current Icw IEC 60947

1.26 kA
Rated conditional short-circuit current Icc with gl-gG fuses

50 kA

Rated operational power under 400 V AC AC1

13000 W
Power dissipation at IN

1.60 W

Number of poles

4
Control/operation element

Short rotary handle
Type of pole

3P+N

Nominal tightening torque

2 - 2.2 Nm

Height

68 mm
Width

127.5 mm
Depth

89 mm

Motor drive integrated

No

Interlockable

Yes

Ingress Protection (IP) class

IP20

Number of modules

8

Frequency

50 - 60 Hz

Operating temperature

-20 - 70 °C

Cross-section flexible conductor

1.5 - 16 mm²
Cross-section rigid conductor

1.5 - 16 mm²

Environmental value

We are committed to bettering our environmental performance by reducing our footprint while acting as a sustainability enabler for our customers. Learn More

RoHS conform Yes

REACh-SVHC free Yes
