The Hager 4P 160A change-over switch enables safe manual transfer between two power sources in 4-pole systems. With Ui 800 V, Uimp 8 kV, Icw 12 kA and conditional Icc 100 kA (with gG fuses), it offers strong fault withstand. AC-1 power 105 kW at 400 V. Long rotary handle and interlockable design enhance safety. Suits 35-95 mm² conductors, 50-60 Hz, -20 to 70°C. Ideal for mains/backup switching.
EAN
3250613190026
Packaging
1 Piece
Change-over switch 4P 630A Ui 1000V Icc 50kA long rotary handle HI452
Login to create a product list
You need to be logged into your myHager account to create product lists
Complete your system
Optional accessories
-
Auxiliary contact block 1 products available -
Door coupling handle for switchgear 1 products available -
Terminal cover 2 products available -
Switch operating shaft 2 products available -
Accessories/spare parts for low-voltage switch technology 1 products available
Technical properties
Voltage
-
Rated insulation voltage Ui800 V
-
Rated impulse withstand voltage Uimp8000 V
Electric current
-
Rated current160 A
-
Rated short-time withstand current Icw IEC 609477 kA
-
Rated conditional short-circuit current Icc with gl-gG fuses100 kA
Power
-
Rated operational power under 400 V AC AC1105000 W
-
Total power loss under IN9 W
Architecture
-
Number of poles4
-
Control/operation elementLong rotary handle
-
Type of pole4P
Installation, mounting
-
Nominal tightening torque9 - 9.9 Nm
Controls and indicators
-
Motor drive integratedNo
Cover, door
-
InterlockableYes
Safety
-
Ingress Protection (IP) classIP00
Frequency
-
Frequency50 - 60 Hz
Use conditions
-
Operating temperature-20 - 70 °C
Connection
-
Cross-section rigid conductor50 - 95 mm²
Downloads
-
Product datasheet

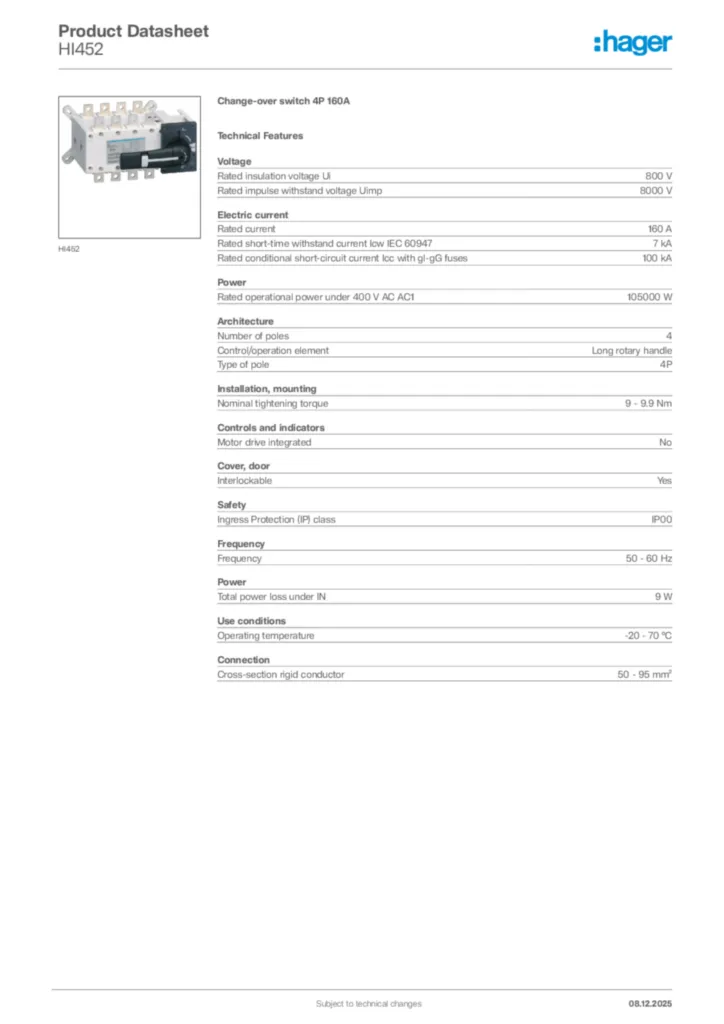

Hager Product data sheet HI452
