The Hager 4P 1250A change-over switch ensures safe source transfer for high-power industrial and commercial installations. Rated Ui 1000 V, Uimp 12 kV, with Icw 64 kA and Icc 100 kA (gG fuses) for strong fault withstand. AC-1 822 kW at 400 V, 50-60 Hz. Long rotary handle, interlockable, -20 to 70 °C. Accepts 4×185 mm² conductors. IP00 for enclosure mounting.

EAN

3250613190194

Packaging

1 Piece

Change-over switches

Motor Operator P250 230-240VAC 50-60Hz with Auto-Reset HI462

Accessories
Technical properties
Environmental value
Documentations
More products

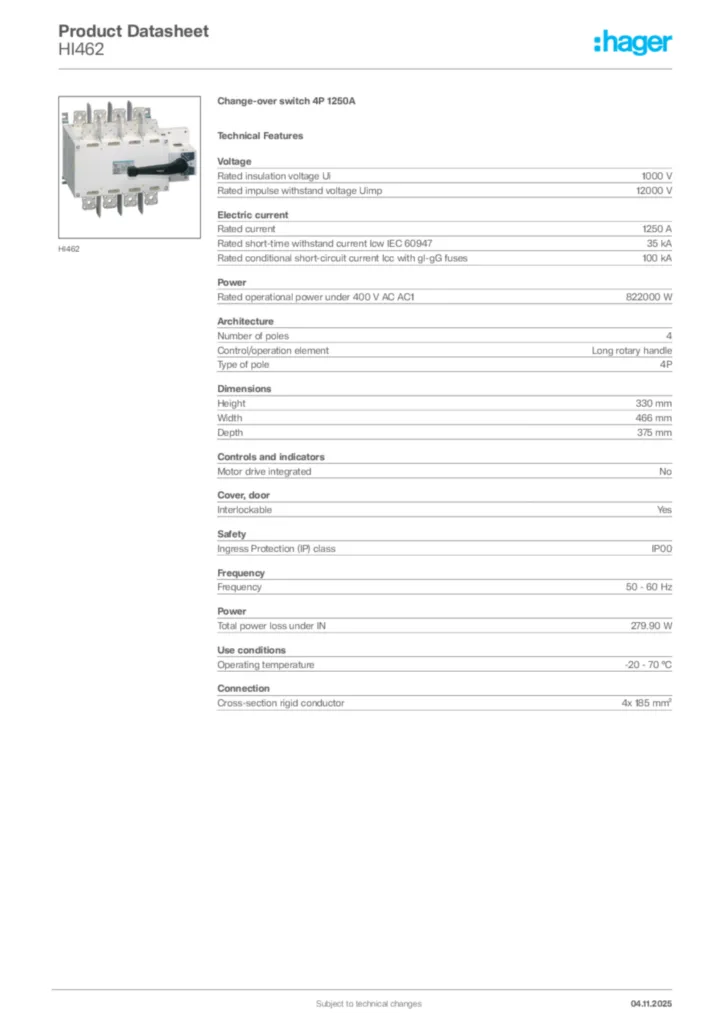

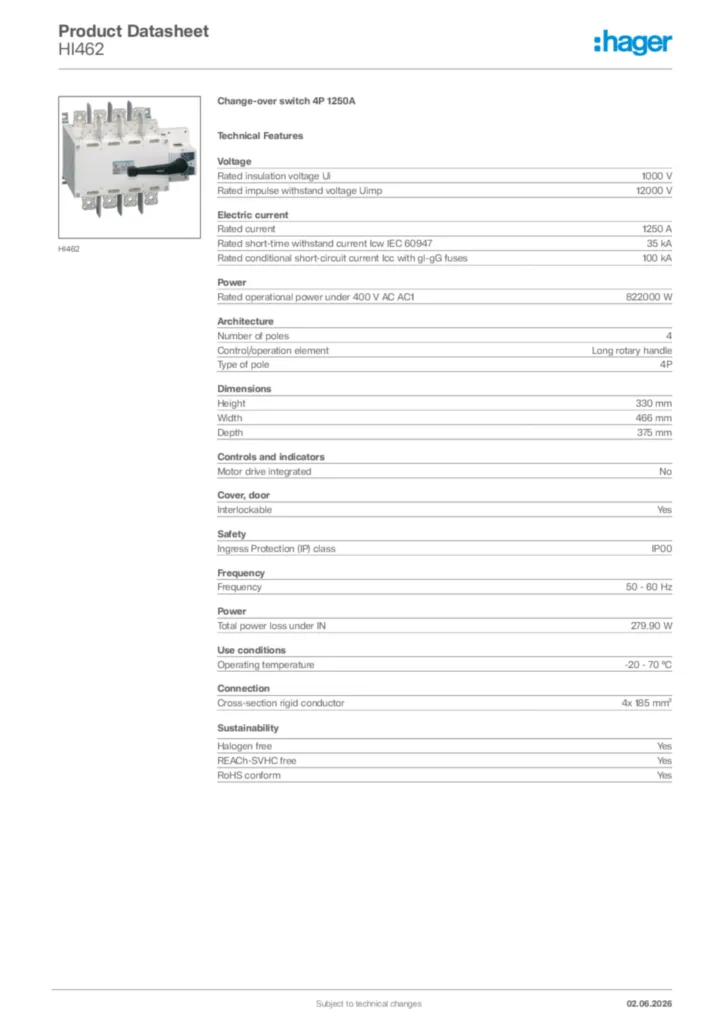

Download the data sheet

Complete your system

Terminal cover 1 products available
Accessories/spare parts for low-voltage switch technology 2 products available
Auxiliary contact block 1 products available
Door coupling handle for switchgear 1 products available

Referenced by 1 products available

Technical properties

Rated insulation voltage Ui

1000 V
Rated impulse withstand voltage Uimp

12000 V

Rated current

1250 A
Rated short-time withstand current Icw IEC 60947

35 kA
Rated conditional short-circuit current Icc with gl-gG fuses

100 kA

Rated operational power under 400 V AC AC1

822000 W
Total power loss under IN

279.90 W

Number of poles

4
Control/operation element

Long rotary handle
Type of pole

4P

Height

330 mm
Width

466 mm
Depth

375 mm

Motor drive integrated

No

Interlockable

Yes

Ingress Protection (IP) class

IP00

Frequency

50 - 60 Hz

Operating temperature

-20 - 70 °C

Cross-section rigid conductor

4x 185 mm²

Environmental value

We are committed to bettering our environmental performance by reducing our footprint while acting as a sustainability enabler for our customers. Learn More

RoHS conform Yes

REACh-SVHC free Yes

Halogen free Yes
