The Hager h3+ P250 Energy 3P3D 100A moulded case circuit breaker safeguards three-phase circuits in commercial/industrial boards. Icu 70 kA at 400/415 V (85 kA at 240 V) and Ics 50 kA ensure high fault interruption. Adjustable LTD, STD (1.5-10×In, 50-400 ms) and instantaneous 3-15×In enable precise coordination. Fixed, toggle-operated, IP4X, 220-690 V, Ui 800 V, Uimp 8 kV. Accepts Cu/Al 35-185 mm².
EAN
3250613141738
VPE
1 piece
Moulded Case Circuit Breaker 3P 160A 70kA Icu Energy trip h3+ P250 HET100NR
catalog.lists.product_addition.login_popup.title
catalog.lists.product_addition.login_popup.descriptive_text
product.page.accessories.title
product.page.accessories.associated-products
-
Mechanic accessories for low-voltage components 1 product.page.accessories.products-available -
Shunt release 5 product.page.accessories.products-available -
Connection Functions 7 product.page.accessories.products-available -
Handle with interlock for power breaker 1 product.page.accessories.products-available -
DC power supply 1 product.page.accessories.products-available -
Handle for power circuit breaker 1 product.page.accessories.products-available
product.page.accessories.title-modal
-
HXA003H
Shunt trip 100-120V AC (x160-P160-x250-P250-x630-P630)
-
HXA005HShunt trip 380-450V AC (x160-P160-x250-P250-x630-P630)
-
HXA002HShunt trip 48V DC (x160-P160-x250-P250-x630-P630)
-
HXA001HShunt trip 24V DC (x160-P160-x250-P250-x630-P630)
-
HXA004HShunt trip 200-240V AC (x160-P160-x250-P250-x630-P630)
-
HYT065H
Cage terminal P250 cage version Cu/Al 3P 6x 6-35mm²
-
HYT007HCage terminal P250 cage version Cu/Al 3P 2x 35-120mm²
-
HYT005HCage terminal P250 cage version Al 3P 1x 50-185mm²
-
HYT001HCage terminal P250 cage version Cu/Al 3P 1x 10-150mm²
-
HYB011HSpreader (x/P250-P250) 3P
-
HYT328HL connection terminal Plug-in (P250-h250) 1P
-
HYB031HRear connection (x/P250-P250) - 3P
-
HXA055HUVR delayed 380-450V AC (x160-P160-x250-P250)
-
HXA011HUndervoltage release 24V DC (x160-P160-x250-P250-x630-P630)
-
HXA051HUVR delayed 24V DC (x160-P160-x250-P250-x630-P630)
-
HXA015HUndervoltage release 380-450V AC (x160-P160-x250-P250-x630-P630)
-
HXA014HUndervoltage release 200-240V AC (x160-P160-x250-P250-x630-P630)
-
HXA054HUVR delayed 220-240V AC (x160-P160-x250-P250-x630-P630)
-
HXA053HUVR delayed 110-120V AC (x160-P160-x250-P250-x630-P630)
-
HXA013HUndervoltage release 100-120V AC (x160-P160-x250-P250-x630-P630)
-
HTC370HCIP - Adaptor for h3+ length 10 m
-
HTC360HCIP - Adaptor for h3+ length 5 m
-
HTC350HCIP - Adaptor for h3+ length 3 m
-
HTC340HCIP - Adaptor for h3+ length 1, 5 m
-
HTC330HCIP - Adaptor for h3+ length 0, 5 m
-
HTC150HZSI - Adaptor for h3+ length 1, 20 m
-
HTC140HCIP - 24 V Adaptor length 1, 20 m
-
HTC130HOAC/PTA adaptor for h3+ length 1, 20 m
-
HYT052HEarth plate for Spread terminal extension P250 3P
-
HYT050HEarth plate for Straight terminal extension P250 3P
-
HYT025HTerminal cover for Rear & Plug-in connection P250 3P
-
HYT023HTerminal cover for Spread terminal extension P250 3P
-
HYT021HTerminal cover for Straight terminal extension P250 3P
-
HYC321HPM Terminal Cover Base Plug In (P250-h250) LSI 3P
-
HXT044HKMotor Operator P250 230-240VAC without Auto-Reset + key
-
HXT040HMotor Operator P250 24VDC with Auto-Reset
-
HXT040HKMotor Operator P250 24VDC with Auto-Reset + key
-
HXT041HMotor Operator P250 100-110VAC/DC with Auto-Reset
-
HXT041HKMotor Operator P250 100-110VAC/DC with Auto-Reset + key
-
HXT042HMotor Operator P250 230-240VAC with Auto-Reset
-
HXT042HKMotor Operator P250 230-240VAC with Auto-Reset + key
-
HXT043HMotor Operator P250 24VDC without Auto-Reset
-
HXT043HKMotor Operator P250 24VDC without Auto-Reset + key
-
HXT044HMotor Operator P250 230-240VAC without Auto-Reset
-
HXT049HKMotor Operator P250 48VDC without Auto-Reset +key
-
HXT045HMotor Operator P250 200-220VAC/DC with Auto-Reset
-
HXT045HKMotor Operator P250 200-220VAC/DC with Auto-Reset +key
-
HXT046HMotor Operator P250 100-110VAC/DC without Auto-Reset
-
HXT046HKMotor Operator P250 100-110VAC/DC without Auto-Reset + key
-
HXT047HMotor Operator P250 200-220VAC/DC without Auto-Reset
-
HXT047HKMotor Operator P250 200-220VAC/DC without Auto-Reset +key
-
HXT048HMotor Operator P250 48VDC with Auto-Reset
-
HXT048HKMotor Operator P250 48VDC with Auto-Reset +key
-
HXT049HMotor Operator P250 48VDC without Auto-Reset
Technical characteristics
Electric current
-
Rated current IN100 A
-
Rated ultimate short-circuit breaking capacity Icu under 400 V AC IEC 60947-270 kA
-
Rated ultimate short-circuit breaking capacity Icu under 240 V AC IEC 60947-285 kA
-
Rated ultimate short-circuit breaking capacity Icu under 415 V AC IEC 60947-270 kA
-
Rated ultimate short-circuit breaking capacity Icu under 690 V AC IEC 60947-26 kA
-
Rated service breaking capacity Ics under 220 V AC according to IEC 60947-285 kA
-
Rated service breaking capacity Ics under 230 V AC according to IEC 60947-285 kA
-
Rated service breaking capacity Ics under 240 V AC according to IEC 60947-285 kA
-
Rated service breaking capacity Ics under 380 V AC according to IEC 60947-250 kA
-
Rated service breaking capacity Ics under 400 V AC according to IEC 60947-250 kA
-
Rated service breaking capacity Ics under 415 V AC according to IEC 60947-250 kA
-
Rated service breaking capacity Ics under 690 V AC according to IEC 60947-26 kA
-
Rated current at 10°C according to IEC 60947100 A
-
Rated current at 15°C according to IEC 60947100 A
-
Rated current at 20°C according to IEC 60947100 A
-
Rated current at 25°C according to IEC 60947100 A
-
Rated current at 30°C according to IEC 60947100 A
-
Rated current at 35°C according to IEC 60947100 A
-
Rated current at 40°C according to IEC 60947100 A
-
Rated current at 45°C according to IEC 60947100 A
-
Rated current at 50°C according to IEC 60947100 A
-
Rated current at 55°C according to IEC 60947100 A
-
Rated current at 60°C according to IEC 60947100 A
-
Rated current at 65°C according to IEC 60947100 A
-
Rated current at 70°C according to IEC 60947100 A
Architecture
-
Number of poles3
-
Control/operation elementToggle
-
Device construction typeFixed built-in
-
Neutral positionWithout neutral
Frequency
-
Frequency50 - 60 Hz
Voltage
-
Rated impulse withstand voltage Uimp8000 V
-
Rated insulation voltage Ui800 V
-
Rated operational voltage Ue220 - 690 V
Functions
-
Trip unitENERGY
Power
-
Power dissipation at IN7.20 W
Endurance
-
Electric endurance in number of cycles10000
-
Number of mechanical operations40000
Installation, mounting
-
Nominal tightening torque12 - 12 Nm
-
Mounting-/Connection PositionFront
Safety
-
Ingress Protection (IP) classIP4X
Connection
-
Cross-section flexible conductor35 - 150 mm²
-
Cross-section rigid conductor35 - 185 mm²
Cover, door
-
InterlockableYes
Cable
-
Cable materialCopper, Aluminium
Compatibility
-
Compatible with RDC AOBNo
-
Suitable for DIN RailNo
-
Suitable for distribution boardYes
Dimensions
-
Height165 mm
-
Width105 mm
-
Depth97 mm
Settings
-
Adjustment range short-term delayed short-circuit release60 - 1000 A
Electrical protection
-
Long-time overload protection (ltd): delay (tr)0.5 s, 1.5 s, 2.5 s, 5 s, 7.5 s, 9 s, 10 s, 12 s, 14 s, 16 s
-
Short-time protection (std): current (Isd)1.5, 2, 2.5, 3, 3.5, 4, 4.5, 5, 5.5, 6, 6.5, 7, 7.5, 8, 8.5, 9, 9.5, 10
-
Short-time protection (std): delay (tsd)50 ms, 100 ms, 200 ms, 300 ms, 400 ms
-
Instantaneous protection (li): dial setting coefficient3, 3.5, 4, 4.5, 5, 5.5, 6, 6.5, 7, 7.5, 8, 8.5, 9, 9.5, 10, 10.5, 11, 11.5, 12, 12.5, 13, 13.5, 14, 14.5, 15
catalog.pageproduct.title_sustainability.h2
We are committed to bettering our environmental performance by reducing our footprint while acting as a sustainability enabler for our customers. Learn More
catalog.pageproduct.sustainability_block.downloads_h3
Downloads
-
GeneratedProductDatasheet

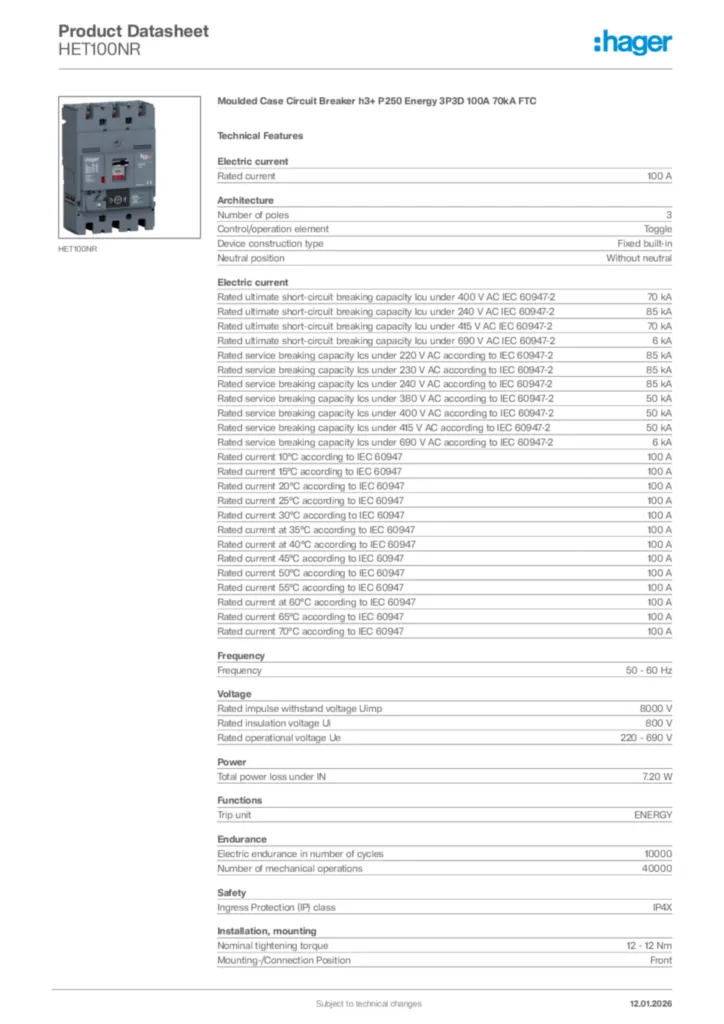

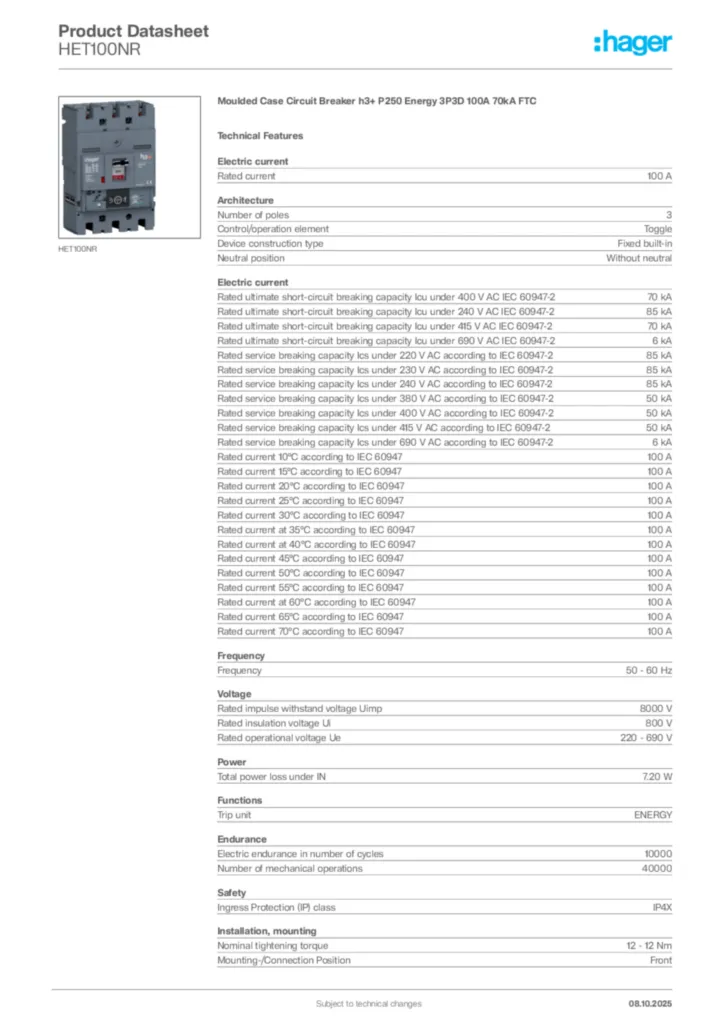

Hager Product data sheet HET100NR
