Enclosure, NewVegaD, 1287x550x150mm, 168 modules, flush-mounted, distribution FU72DN

EAN
3250612710768
Packaging
1 Piece

You have to log in with your myHager profile to see prices and to order.

Add to a list
Add to a list

Login to create a product list

You need to be logged into your myHager account to create product lists

Create an account Sign in

Enclosure, NewVegaD, 1287x550x150mm, 168 modules, flush-mounted, distribution

FU72DN

  • Accessories
  • Technical properties
  • Environmental value
  • Documentations
  • More products

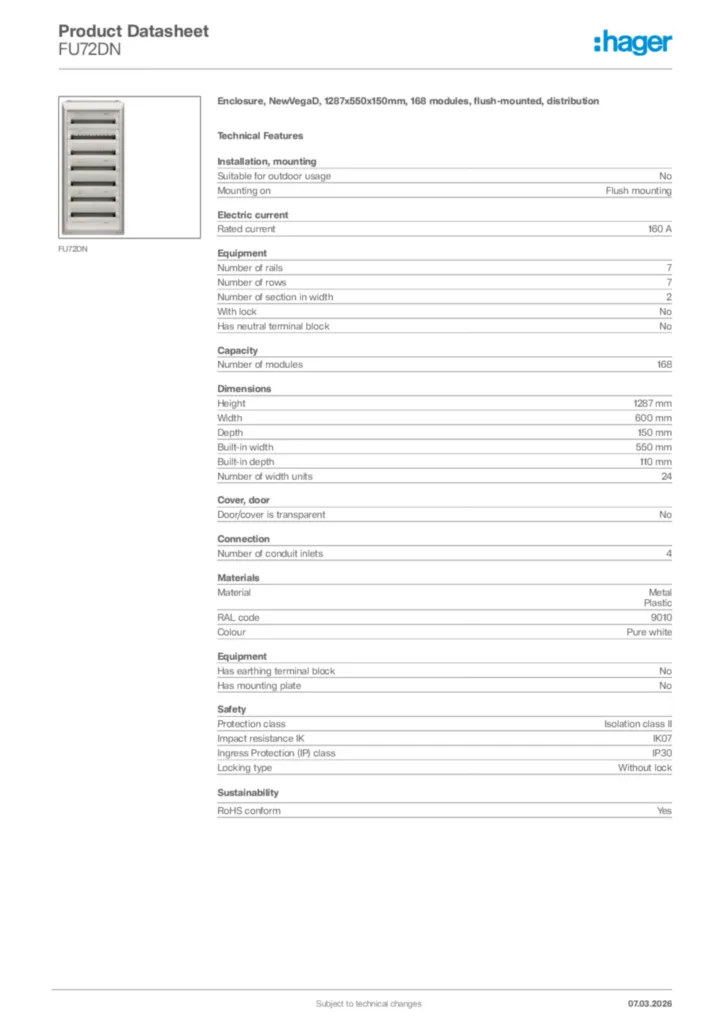

Download the data sheet

Complete your system

Optional accessories

  • See more (23)
    • Gland plate for enclosure 4 products available
    • Cover for distri­bu­tion board 3 products available
    • Mounting plate for distri­bu­tion board 4 products available
    • Separ­a­tion plate for meter/dis­tri­bu­tion boards 1 products available
    • DIN rail 1 products available
    • Coax connector 1 products available

    Complete your system

    • Gland plate for enclosure
    • Cover for distri­bu­tion board
    • Mounting plate for distri­bu­tion board
    • Separ­a­tion plate for meter/dis­tri­bu­tion boards
    • DIN rail
    • Coax connector
    • Door/­op­er­ating panel
    • Cover­/in­fill panel/iden­ti­fic­a­tion strip
    • Common Accessories
    • Mounting accessories
    • Distrib­utor assembly terminal blocks
    • Compon­ents for wiring, cable entry and cable fixing
    • Cover strip
    • FD00P3

      Cable entry plate, NewVegaD, top/bottom, rectangular with round knock-outs
      0.00 €  / *
    • FD00P2

      Cable entry plate, NewVegaD, top/bottom, rectangular with 2 flanges IP41
      0.00 €  / *
    • FD00P1

      Cable entry plate, NewVegaD, top/bottom, rectangular
      0.00 €  / *
    • VZ741

      Rear cable entry flange IP41 for NewVegaD and Univers FW boards
      0.00 €  / *
    • FD00C3

      Cover, NewVegaD, 300x500mm, plain+slotted
      0.00 €  / *
    • FD00C2

      Cover, NewVegaD, 300x500mm, plain
      0.00 €  / *
    • FD00C5

      Cover, NewVegaD, 150x500mm, plain
      0.00 €  / *
    • FD00M4

      Mounting plate, NewVegaD, 150x440x2mm, for mounting rail upright
      0.00 €  / *
    • FD00M2

      Mounting plate, NewVegaD, 300x440x2mm, for mounting rail upright
      0.00 €  / *
    • FD00M3

      Perforated plate, NewVegaD, 150x440x1, 2mm, for mounting rail upright
      0.00 €  / *
    • FD00M1

      Perforated plate, NewVegaD, 225x440x1, 2mm, for mounting rail upright
      0.00 €  / *
    • FD00A5

      Partition plate, NewVegaD, horizontal, flush low-depth 150mm
      0.00 €  / *
    • UN07FN

      Vertical uprights, univers FW, height 1050mm, 2 pieces
      0.00 €  / *
    • TN010S

      Coax Modul F/F
      0.00 €  / *
    • FD72TN

      Glazed door, NewVegaD, 1150x500mm, for 7-rows enclosure
      0.00 €  / *
    • FD72PN

      Plain door, NewVegaD, 1150x500mm, for 7-rows enclosure
      0.00 €  / *
    • FD00A1

      Label strips Kit, NewVegaD, 10 pieces, 24 modules width
      0.00 €  / *
    • FD00B2

      Kit, NewVegaD, with 10 cable brackets for flush enclosure
      0.00 €  / *
    • UZ25V2

      Cable bracket, universN, small section, 20 pieces
      0.00 €  / *
    • KJ160A

      Brass busbar terminal 160A, 4pole, 1x 25-70² / 3x 10-35² / 8x 2, 5-25² per pole
      0.00 €  / *
    • KJ01D

      Brass busbar terminal 160A, 4pole, 1x 10-50² / 3x 10-35² / 8x 2, 5-16² per pole
      0.00 €  / *
    • FD00F3

      Cable strain relief bar 24 modules width for NewVegaD
      0.00 €  / *
    • JP002

      Cover strip, universal, 24 Modules, RAL 9011
      0.00 €  / *

    Technical properties

    Connec­tion
    • Number of conduit inlets
      4
    Install­a­tion, mounting
    • Suit­able for outdoor usage
      No
    • Mounting on
      Flush mounting
    Elec­tric current
    • Rated current
      160 A
    Equip­ment
    • Number of rails
      7
    • Number of rows
      7
    • Number of section in width
      2
    • With lock
      No
    • Has neutral terminal block
      No
    • Has earthing terminal block
      No
    • Has mounting plate
      No
    Capa­city
    • Number of modules
      168
    Dimen­sions
    • Height
      1287 mm
    • Width
      600 mm
    • Depth
      150 mm
    • Built-in width
      550 mm
    • Built-in depth
      110 mm
    • Number of width units
      24
    Cover, door
    • Door/­cover is trans­parent
      No
    Mater­ials
    • Material
      Metal, Plastic
    • RAL code
      9010
    • Colour
      Pure white
    Safety
    • Protec­tion class
      Isol­a­tion class II
    • Impact resist­ance IK
      IK07
    • Ingress Protec­tion (IP) class
      IP30
    • Locking type
      Without lock

    Environmental value

    We are committed to bettering our environmental performance by reducing our footprint while acting as a sustainability enabler for our customers. Learn More

    RoHS conform Yes

    Certifications and documents

    Encl., NewVegaD, 900x550x193mm, 120 mod.
    PDF
    472,28 kB
    Hager REACH declaration FU72DN
    PDF
    Hager RoHS report FU72DN
    PDF

    Downloads

    • Image FU72DN | Hager Africa

      Product Image FU72DN

    • Product datasheet

      Image undefined | Hager Africa

      undefined

      PDF

    • Handbook

      Image Handbook en-GB 2023-07-07 | Hager Africa

      Handbook en-GB 2023-07-07

      PDF
      11,76 MB
      Image Handbook fr-FR 2023-09-11 | Hager Africa

      Handbook fr-FR 2023-09-11

      PDF
      11,49 MB
      Image Handbook fr-FR 2023-09-28 | Hager Africa

      Handbook fr-FR 2023-09-28

      PDF
      10,54 MB

    • Declaration of conformity

      Image Declaration | Hager Africa

      Declaration

      Declaration of conformity International 2022-10-11

      PDF
      190,72 kB
    More documentation
