    The Hager NewVegaD flush-mounted distribution enclosure 837x550x150 mm offers capacity for 96 modules across 4 rows/rails, ideal for residential and commercial panels up to 160 A. Class II insulation with IP30 and IK07 ensures safe indoor use. Single-door, pure white (RAL9010) metal/plastic design with 4 conduit inlets and 24 width units simplifies neat, scalable installations.
    EAN
    3250612710737
    VPE
    1 piece
    • vega D

    Enclosure NewVegaD Flush 120 modules 5 rows IP30 Class II 160A 987x600x182 FU42DN

    catalog.product_page.add_to_list_button
    catalog.product_page.add_to_list_button

    catalog.lists.product_addition.login_popup.title

    catalog.lists.product_addition.login_popup.descriptive_text

    catalog.lists.product_addition.login_popup.account_creation_button catalog.lists.product_addition.login_popup.login_button

    Enclosure NewVegaD Flush 120 modules 5 rows IP30 Class II 160A 987x600x182

    FU42DN

    • Accessories
    • Technical characteristics
    • catalog.pageproduct.title_sustainability.h2
    • Documentations
    • More products

    product.page.accessories.title

    product.page.accessories.associated-products

  • product.page.accessories.see-more (21)
    • Gland plate for enclosure 4 product.page.accessories.products-available
    • Cover for distri­bu­tion board 3 product.page.accessories.products-available
    • Mounting plate for distri­bu­tion board 4 product.page.accessories.products-available
    • Separ­a­tion plate for meter/dis­tri­bu­tion boards 2 product.page.accessories.products-available
    • Coax connector 1 product.page.accessories.products-available
    • Door/­op­er­ating panel 2 product.page.accessories.products-available

    product.page.accessories.title-modal

    • Gland plate for enclosure
    • Cover for distri­bu­tion board
    • Mounting plate for distri­bu­tion board
    • Separ­a­tion plate for meter/dis­tri­bu­tion boards
    • Coax connector
    • Door/­op­er­ating panel
    • Cover­/in­fill panel/iden­ti­fic­a­tion strip
    • Common Accessories
    • Distrib­utor assembly terminal blocks
    • Compon­ents for wiring, cable entry and cable fixing
    • Cover strip
    • FD00P3

      Cable entry plate, NewVegaD, top/bottom, rectangular with round knock-outs
      €0.00  / *
    • FD00P2

      Cable entry plate, NewVegaD, top/bottom, rectangular with 2 flanges IP41
      €0.00  / *
    • FD00P1

      Cable entry plate, NewVegaD, top/bottom, rectangular
      €0.00  / *
    • VZ741

      Rear cable entry flange IP41 for NewVegaD and Univers FW boards
      €0.00  / *
    • FD00C3

      Cover, NewVegaD, 300x500mm, plain+slotted
      €0.00  / *
    • FD00C2

      Cover, NewVegaD, 300x500mm, plain
      €0.00  / *
    • FD00C5

      Cover, NewVegaD, 150x500mm, plain
      €0.00  / *
    • FD00M4

      Mounting plate, NewVegaD, 150x440x2mm, for mounting rail upright
      €0.00  / *
    • FD00M2

      Mounting plate, NewVegaD, 300x440x2mm, for mounting rail upright
      €0.00  / *
    • FD00M3

      Perforated plate, NewVegaD, 150x440x1, 2mm, for mounting rail upright
      €0.00  / *
    • FD00M1

      Perforated plate, NewVegaD, 225x440x1, 2mm, for mounting rail upright
      €0.00  / *
    • FD00A4

      Partition plate, NewVegaD, horizontal, flush high-depth 180mm
      €0.00  / *
    • FD00A5

      Partition plate, NewVegaD, horizontal, flush low-depth 150mm
      €0.00  / *
    • TN010S

      Coax Modul F/F
      €0.00  / *
    • FD42TN

      Glazed door, NewVegaD, 700x500mm, for 4-rows enclosure
      €0.00  / *
    • FD42PN

      Plain door, NewVegaD, 700x500mm, for 4-rows enclosure
      €0.00  / *
    • FD00A1

      Label strips Kit, NewVegaD, 10 pieces, 24 modules width
      €0.00  / *
    • FD00B2

      Kit, NewVegaD, with 10 cable brackets for flush enclosure
      €0.00  / *
    • KJ160A

      Brass busbar terminal 160A, 4pole, 1x 25-70² / 3x 10-35² / 8x 2, 5-25² per pole
      €0.00  / *
    • FD00F3

      Cable strain relief bar 24 modules width for NewVegaD
      €0.00  / *
    • JP002

      Cover strip, universal, 24 Modules, RAL 9011
      €0.00  / *

    Technical characteristics

    Connec­tion
    • Number of conduit inlets
      4
    Install­a­tion, mounting
    • Suit­able for outdoor usage
      No
    • Mounting on
      Flush mounting
    Elec­tric current
    • Rated current IN
      160 A
    Equip­ment
    • Number of rails
      4
    • Number of rows
      4
    • Number of section in width
      2
    • With lock
      No
    • Has neutral terminal block
      No
    • Has earthing terminal block
      No
    • Has mounting plate
      No
    Capa­city
    • Number of modules
      96
    Dimen­sions
    • Height
      837 mm
    • Width
      600 mm
    • Depth
      150 mm
    • Built-in width
      550 mm
    • Built-in depth
      110 mm
    • Number of width units
      24
    Cover, door
    • Door/­cover is trans­parent
      No
    • Cabinet door type
      Single door
    Mater­ials
    • Material
      Metal, Plastic
    • RAL code
      9010
    • Colour
      Pure white
    Safety
    • Protec­tion class
      Isol­a­tion class II
    • Impact resist­ance IK
      IK07
    • Ingress Protec­tion (IP) class
      IP30
    • Locking type
      Without lock

    catalog.pageproduct.title_sustainability.h2

    We are committed to bettering our environmental performance by reducing our footprint while acting as a sustainability enabler for our customers. Learn More

    RoHS conform Yes
    REACh-SVHC free Yes

    catalog.pageproduct.sustainability_block.downloads_h3

    PEP - Encl., NewVegaD, 900x550x193mm, 120 mod. (English)
    PDF
    472,28 kB
    REACH declaration FU42DN
    PDF
    RoHS report FU42DN
    PDF

    Downloads

    • Image FU42DN | Hager UK

      Product Image FU42DN

    • GeneratedProductDatasheet

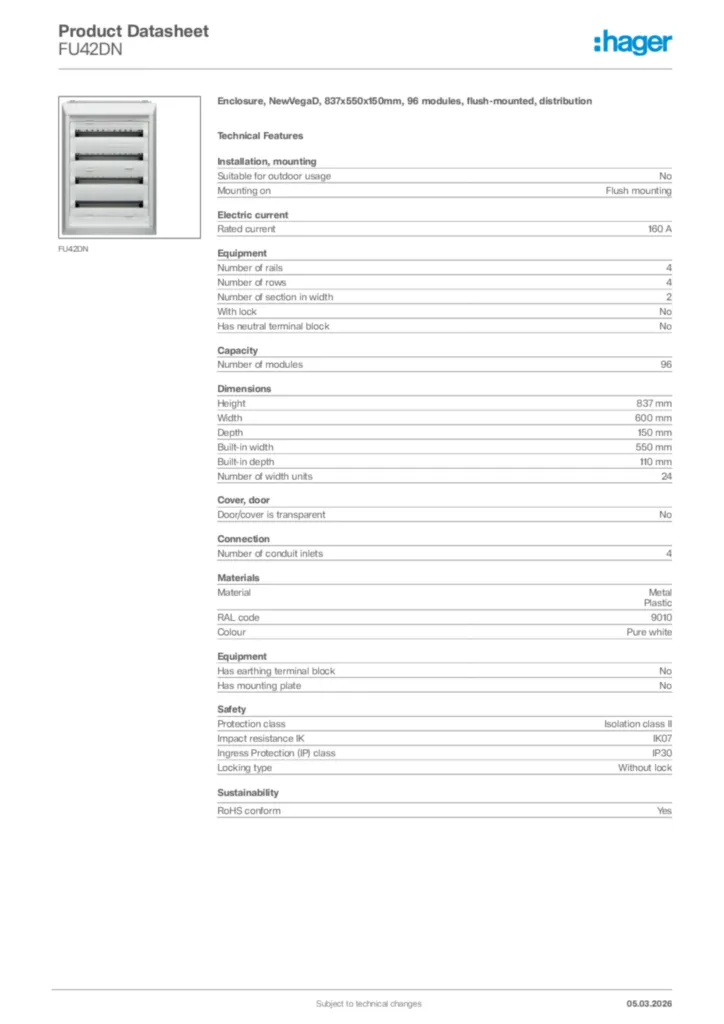

      Image Hager Product data sheet FU42DN | Hager UK

      Hager Product data sheet FU42DN

      Enclosure, NewVegaD, 837x550x150mm, 96 modules, flush-mounted, distribution

      PDF

    • ProductManuals

      Image Technical manual for New VegaD enclosures | Hager UK

      Technical manual for New VegaD enclosures

      Surface, flush boards and accessories (FR)

      PDF
      11,49 MB
      Image Technical manual for New VegaD enclosures | Hager UK

      Technical manual for New VegaD enclosures

      Surface, flush boards and accessories (EN)

      PDF
      11,76 MB

    • ProductECDeclaration

      Image Declaration | Hager UK

      Declaration

      Declaration of conformity International 2022-10-11

      PDF
      190,72 kB
