The Hager Quadro.Plus counterdoor delivers secure, sealed access for electrical cabinets. Varnished steel in RAL 9010 pure white, non-transparent, with 1 lock and 3-side 7 mm locking, supplied with 2 keys. IP55 and Class I ensure dust and water resistance. Dimensions: 1790 x 600 x 587 mm (H x W x D). Ideal for industrial and commercial switchboards requiring robust protection and controlled access.

EAN

3250610190838

Packaging

1 Piece

quadro evo enclosures and accessories

Horizontal partition plate quadro.system Steel varnished 482x520x1.5 mm FN700E

Technical properties
Environmental value
Documentations
More products

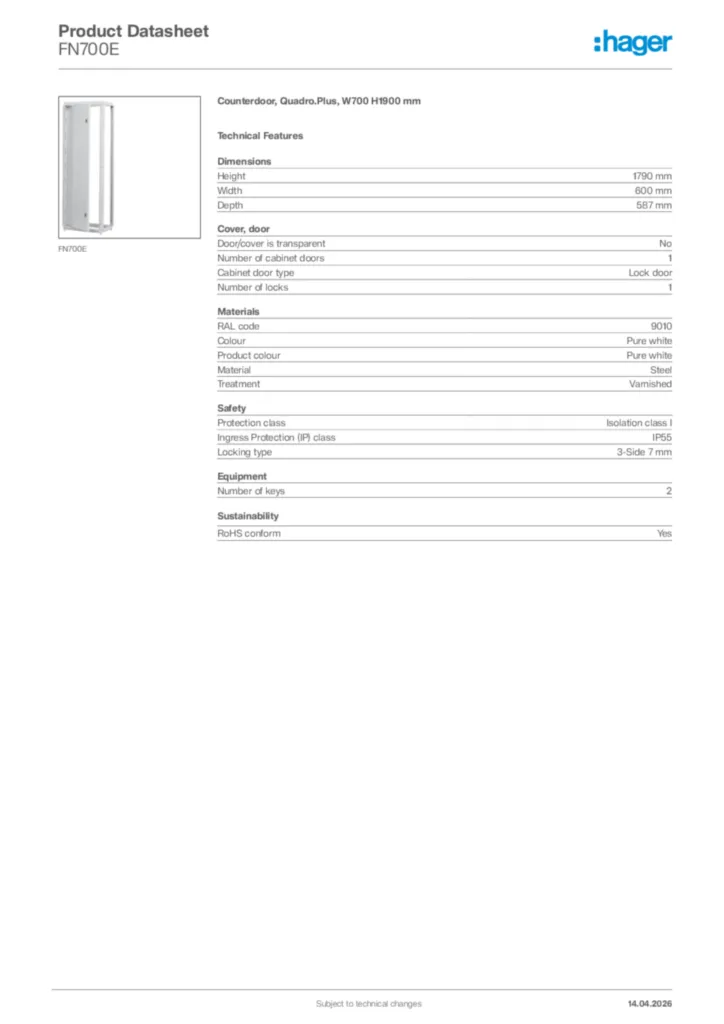

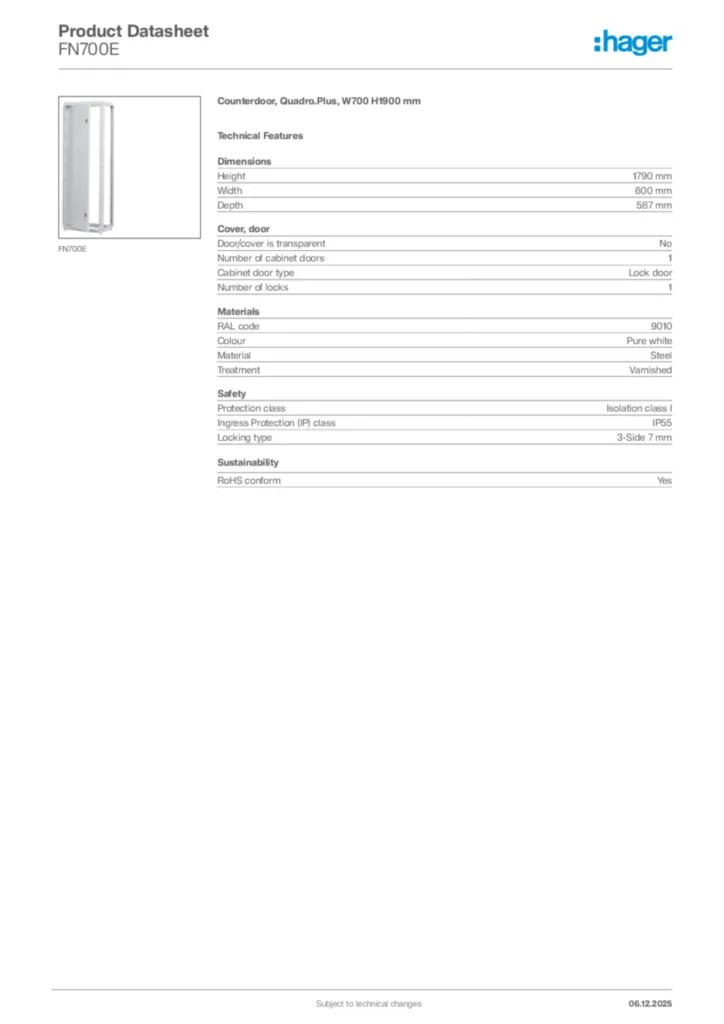

Download the data sheet

Technical properties

Height

1790 mm
Width

600 mm
Depth

587 mm

Door/cover is transparent

No
Number of cabinet doors

1
Cabinet door type

Lock door
Number of locks

1

RAL code

9010
Colour

Pure white
Product colour

Pure white
Material

Steel
Treatment

Varnished

Protection class

Isolation class I
Ingress Protection (IP) class

IP55
Locking type

3-Side 7 mm

Number of keys

2

Environmental value

We are committed to bettering our environmental performance by reducing our footprint while acting as a sustainability enabler for our customers. Learn More

RoHS conform Yes
