The Hager Quadro Evo front/back drilled louvres 1000x2100 mm enhance enclosure ventilation, improving heat dissipation while maintaining IP30 protection. Made of varnished steel in pure white RAL9010, they offer durability and a clean finish. With 2100 mm height, 1000 mm width and 23 mm depth, they integrate neatly into Quadro Evo frames for quick, flexible installation and reliable airflow management.
EAN
3250612772384
Packaging
1 Piece
Quadro Evo front/back drilled louvers 1000x1900mm Steel RAL9010 IP30 FN247EDW
Login to create a product list
You need to be logged into your myHager account to create product lists
Technical properties
Materials
-
MaterialSteel
-
TreatmentVarnished
-
Product colourPure white
-
RAL code9010
Dimensions
-
Height2100 mm
-
Width1000 mm
-
Depth23 mm
-
Built-in height2100 mm
Safety
-
Ingress Protection (IP) classIP30
Environmental value
We are committed to bettering our environmental performance by reducing our footprint while acting as a sustainability enabler for our customers. Learn More
Certifications and documents
Downloads
-
Product datasheet

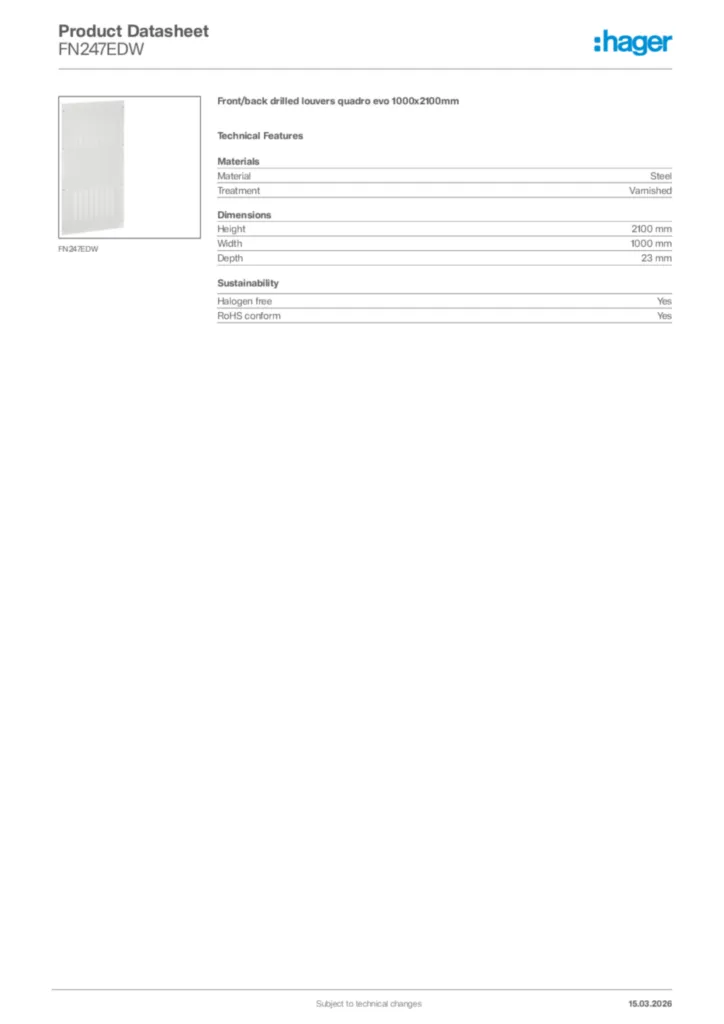

Hager Product data sheet FN247EDW
Front/back drilled louvers quadro evo 1000x2100mm
PDF -
Instruction manual
Instruction manual International 2024-12-04
PDF3,97 MB -
Handbook
Handbook it-IT 2024-05-27
PDF4,98 MB -
Declaration of conformity
Declaration
Declaration of conformity International 2023-09-26
PDF348,14 kB
Declaration
Declaration of conformity International 2023-09-26
PDF360,17 kB
Declaration of conformity International 2024-02-15
PDF380,56 kB
Declaration of conformity International 2024-02-15
PDF393,09 kB
Declaration of conformity en-GB 2026-04-07
PDF461,69 kB
Declaration of conformity en-GB 2026-04-07
PDF441,44 kB
