The Hager Quadro Evo Ventilated Top Plate IP30 (1000 x 400 x 20 mm) improves thermal management of indoor enclosures with integrated deaeration, helping prevent overheating of installed equipment. Made of robust white steel, it offers IP30 protection and a low-profile design. No cable entry ensures clean routing, and it’s suitable for ground plinth configurations in Quadro Evo assemblies.
EAN
3250610014134
Packaging
1 Piece
Drilled entry plate Quadro Evo 1000x400 Galvanized steel 1.5 mm FN10040VTW
Login to create a product list
You need to be logged into your myHager account to create product lists
Technical properties
Dimensions
-
Height20 mm
-
Width1000 mm
-
Depth400 mm
Equipment
-
With cable entryNo
-
With deaerationYes
Materials
-
MaterialSteel
-
ColourWhite
Installation, mounting
-
Suitable for outdoor usageNo
Architecture
-
Suitable for roof plankingNo
-
Suitable for ground plankingYes
Environmental value
We are committed to bettering our environmental performance by reducing our footprint while acting as a sustainability enabler for our customers. Learn More
Certifications and documents
Downloads
-
Product datasheet

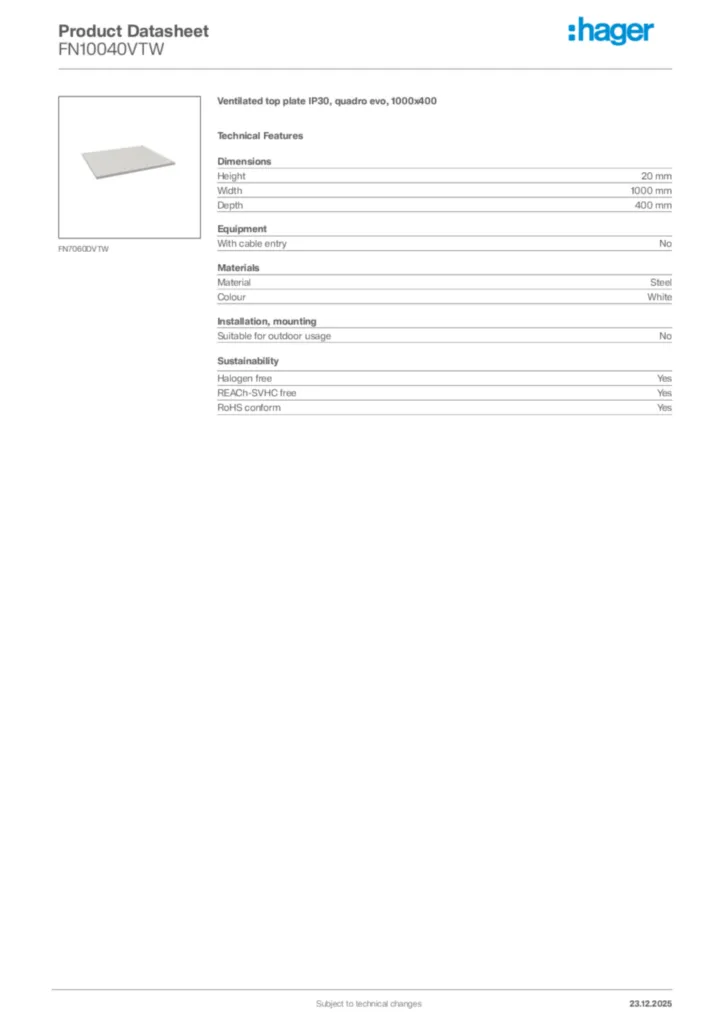

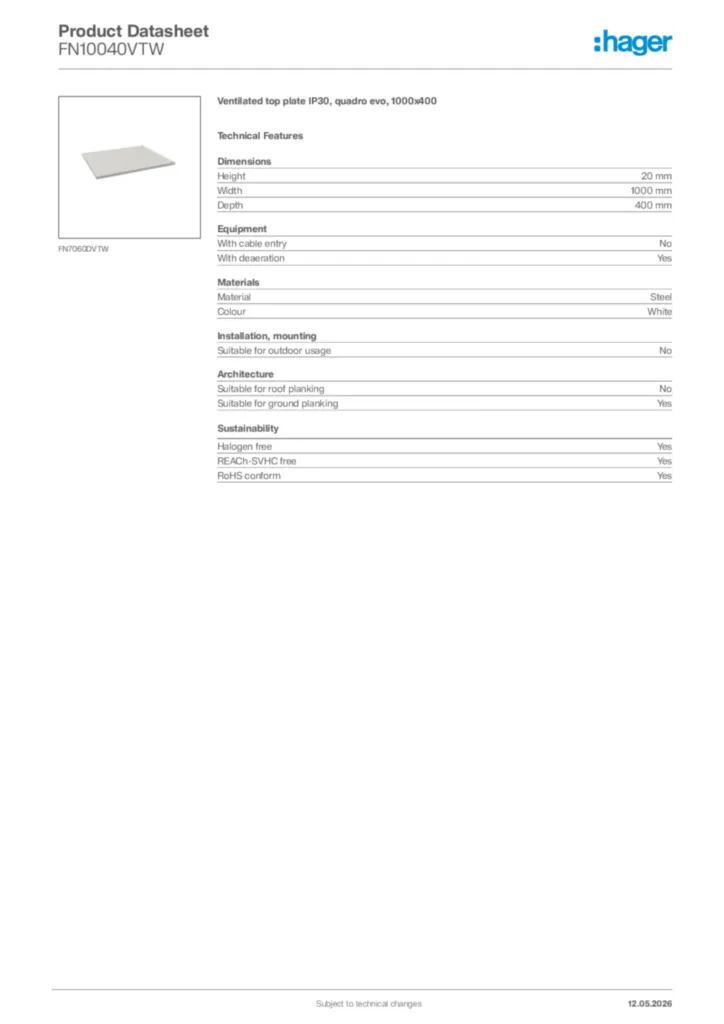

Hager Product data sheet FN10040VTW
Ventilated top plate IP30, quadro evo, 1000x400
PDF -
Instruction manual
Instruction manual International 2024-12-04
PDF3,97 MB -
Declaration of conformity
Declaration of conformity en-GB 2024-09-17
PDF399,41 kB
Declaration of conformity en-GB 2026-04-07
PDF461,69 kB
Declaration of conformity en-GB 2026-04-07
PDF441,44 kB
