Enclosure, NewVegaD, 450x550x193mm, 48 modules, surface-mounted, to complete FD22AN

EAN
3250612548323
Packaging
1 Piece

You have to log in with your myHager profile to see prices and to order.

Add to a list
Add to a list

Login to create a product list

You need to be logged into your myHager account to create product lists

Create an account Sign in

Enclosure, NewVegaD, 450x550x193mm, 48 modules, surface-mounted, to complete

FD22AN

  • Accessories
  • Technical properties
  • Environmental value
  • Documentations
  • More products
Download the data sheet

Complete your system

Optional accessories

  • See more (33)
    • Distrib­utor assembly switch 2 products available
    • Gland plate for enclosure 5 products available
    • Cover for distri­bu­tion board 3 products available
    • Distrib­utor assembly terminal blocks 3 products available
    • Cover­/in­fill panel/iden­ti­fic­a­tion strip 1 products available
    • Common Accessories 2 products available

    Complete your system

    • Distrib­utor assembly switch
    • Gland plate for enclosure
    • Cover for distri­bu­tion board
    • Distrib­utor assembly terminal blocks
    • Cover­/in­fill panel/iden­ti­fic­a­tion strip
    • Common Accessories
    • Mounting plate for distri­bu­tion board
    • Door/­op­er­ating panel
    • Separ­a­tion plate for meter/dis­tri­bu­tion boards
    • Compon­ents for arrange­ment/baying system
    • Mounting accessories
    • Vent­il­ator for enclosure
    • Distrib­utor assembly for serial built-in device
    • Expan­sion pack­ages
    • Trans­ition cover section for install­a­tion duct
    • Compon­ents for wiring, cable entry and cable fixing
    • FD01K1

      Kit, NewVegaD, 150x500mm, 1-row for MCCB 160A
      0.00 €  / *
    • FD02V2

      Kit, NewVegaD, for change over switch 160A
      0.00 €  / *
    • FD00P4

      Kit, NewVegaD, with 2 side cable entry plates, square until M40, for FD…
      0.00 €  / *
    • FD00P3

      Cable entry plate, NewVegaD, top/bottom, rectangular with round knock-outs
      0.00 €  / *
    • FD00P2

      Cable entry plate, NewVegaD, top/bottom, rectangular with 2 flanges IP41
      0.00 €  / *
    • FD00P1

      Cable entry plate, NewVegaD, top/bottom, rectangular
      0.00 €  / *
    • VZ741

      Rear cable entry flange IP41 for NewVegaD and Univers FW boards
      0.00 €  / *
    • FD00C3

      Cover, NewVegaD, 300x500mm, plain+slotted
      0.00 €  / *
    • FD00C2

      Cover, NewVegaD, 300x500mm, plain
      0.00 €  / *
    • FD00C5

      Cover, NewVegaD, 150x500mm, plain
      0.00 €  / *
    • KJ160A

      Brass busbar terminal 160A, 4pole, 1x 25-70² / 3x 10-35² / 8x 2, 5-25² per pole
      0.00 €  / *
    • KJ01D

      Brass busbar terminal 160A, 4pole, 1x 10-50² / 3x 10-35² / 8x 2, 5-16² per pole
      0.00 €  / *
    • FD01A2

      Kit, NewVegaD, 150x500mm, with depth-adjustable DIN rail and plain cover
      0.00 €  / *
    • FD00A1

      Label strips Kit, NewVegaD, 10 pieces, 24 modules width
      0.00 €  / *
    • FD00T2

      Slotted trunking, NewVegaD, 80x30mm, lightgrey, horizontal, halogen-free
      0.00 €  / *
    • FD00H2

      Kit with 2 DIN rail holders for NewVegaD enclosure
      0.00 €  / *
    • FD00M4

      Mounting plate, NewVegaD, 150x440x2mm, for mounting rail upright
      0.00 €  / *
    • FD00M2

      Mounting plate, NewVegaD, 300x440x2mm, for mounting rail upright
      0.00 €  / *
    • FD00M3

      Perforated plate, NewVegaD, 150x440x1, 2mm, for mounting rail upright
      0.00 €  / *
    • FD00M1

      Perforated plate, NewVegaD, 225x440x1, 2mm, for mounting rail upright
      0.00 €  / *
    • FD22TN

      Glazed door, NewVegaD, 400x500mm, for 2-rows enclosure
      0.00 €  / *
    • FD22PN

      Plain door, NewVegaD, 400x500mm, for 2-rows enclosure
      0.00 €  / *
    • FD00A3

      Partition plate, NewVegaD, for surface enclosure, horizontal
      0.00 €  / *
    • FD00F1

      Kit enclosure-enclosure association, NewVegaD, horiontal+vertical
      0.00 €  / *
    • UZ25V2

      Cable bracket, universN, small section, 20 pieces
      0.00 €  / *
    • UZ25V1

      Cable bracket, universN, big section, 20 pieces
      0.00 €  / *
    • UZ01V1

      Support, universN, double, for cable bracket, 20 pieces
      0.00 €  / *
    • FD00F2

      Kit NewVegaD, with external wall-mounting plates
      0.00 €  / *
    • FD00P5

      Kit, NewVegaD, universFW, with 2 aeration grids, for FD…, FWU...
      0.00 €  / *
    • FD01A1

      Kit, NewVegaD, 150x500mm, for rail-mouted devices, 1x24 modules
      0.00 €  / *
    • FD00T1

      Slotted trunking 80x30 grey horizontal NewVegaD
      0.00 €  / *
    • FZ442

      cable cover, 2-section, wall fixation, Hx W x D195 x 550 x 155mm, RAL9010
      0.00 €  / *
    • FD00F3

      Cable strain relief bar 24 modules width for NewVegaD
      0.00 €  / *

    Technical properties

    Dimen­sions
    • Height
      450 mm
    • Width
      550 mm
    • Depth
      193 mm
    • Thick­ness of side­wall
      1 mm
    Safety
    • Ingress Protec­tion (IP) class
      IP30
    • Protec­tion class
      Isol­a­tion class II
    • Locking type
      Without lock
    Equip­ment
    • Number of flange plate open­ings
      2
    • Number of rows
      2
    Install­a­tion, mounting
    • Mounting on
      Surface mounting
    • Suit­able for outdoor usage
      No
    Mater­ials
    • Colour
      Pure white
    • RAL code
      9010
    • Treat­ment
      Powder coated
    • Material
      Metal, Plastic
    Cover, door
    • Number of cabinet doors
      0
    • Number of locks
      0
    • Door/­cover is trans­parent
      No
    Elec­tric current
    • Rated current
      160 A
    Voltage
    • Nominal voltage
      230 - 400 V

    Environmental value

    We are committed to bettering our environmental performance by reducing our footprint while acting as a sustainability enabler for our customers. Learn More

    RoHS conform Yes

    Certifications and documents

    Encl., NewVegaD, 900x550x193mm, 120 mod.
    PDF
    472,28 kB
    Hager REACH declaration FD22AN
    PDF
    Hager RoHS report FD22AN
    PDF

    Downloads

    • Image FD22AN | Hager Africa

      Product Image FD22AN

    • Product datasheet

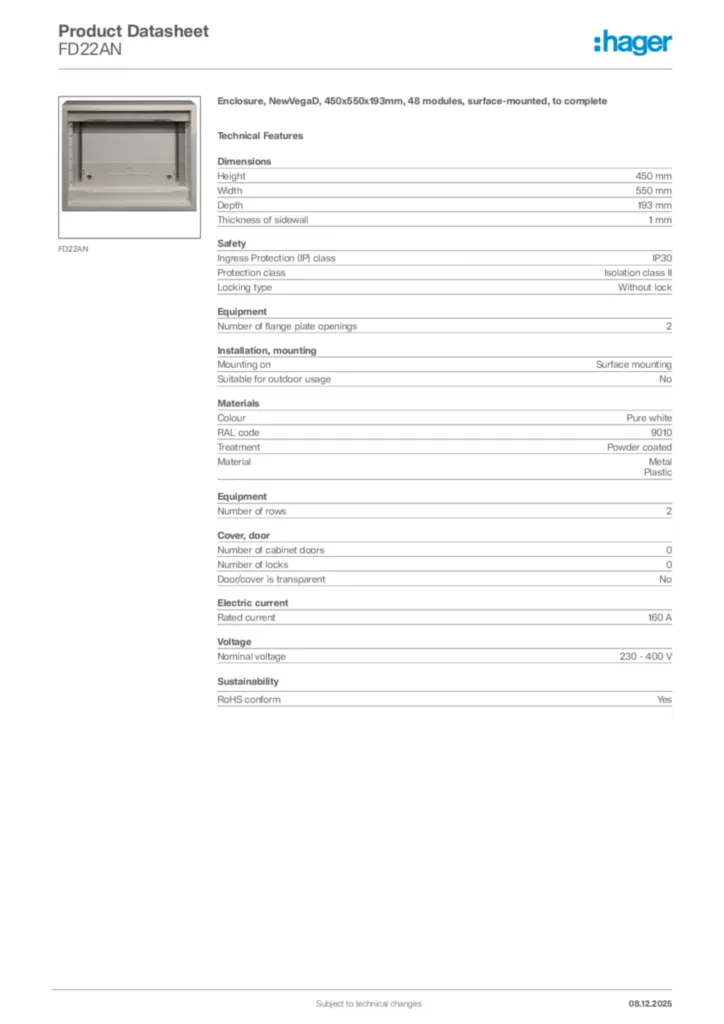

      Image Hager Product data sheet FD22AN | Hager Africa
