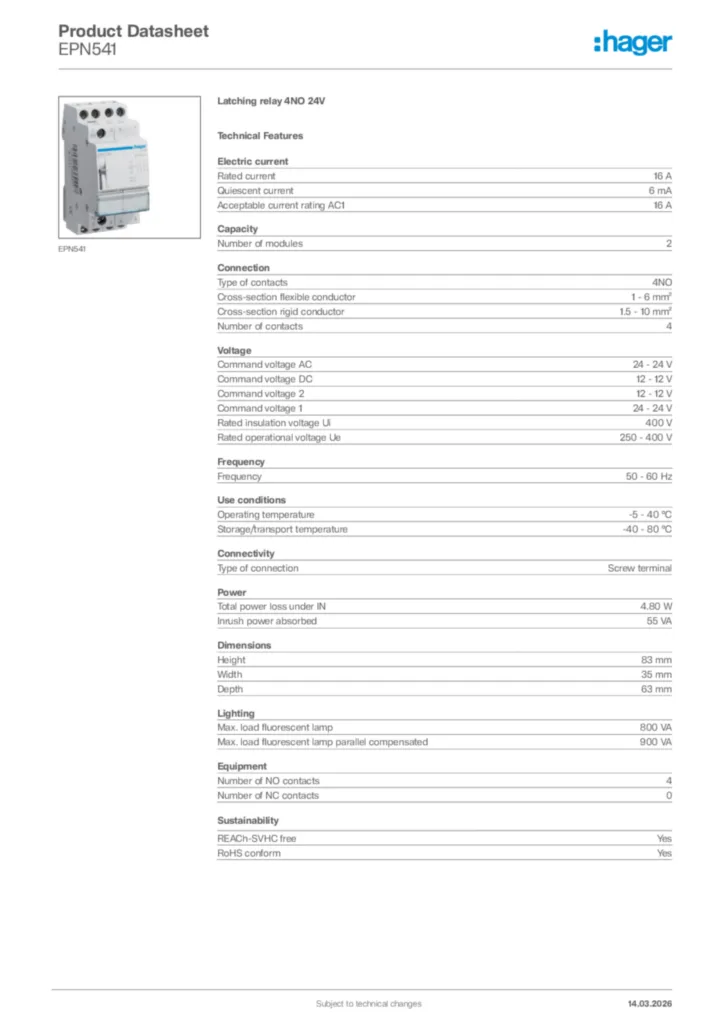

    Latching relay 4NO 24V EPN541

    Complete your system

    Optional accessories

    • Auxil­iary device for distri­bu­tion board devices 4 products available

    Technical properties

    Elec­tric current
    • Rated current
      16 A
    • Quies­cent current
      6 mA
    • Accept­able current rating AC1
      16 A
    Capa­city
    • Number of modules
      2
    Connec­tion
    • Type of contacts
      4NO
    • Cross-sec­tion flex­ible conductor
      1 - 6 mm²
    • Cross-sec­tion rigid conductor
      1.5 - 10 mm²
    • Number of contacts
      4
    Voltage
    • Command voltage AC
      24 - 24 V
    • Command voltage DC
      12 - 12 V
    • Command voltage 2
      12 - 12 V
    • Command voltage 1
      24 - 24 V
    • Rated insu­la­tion voltage Ui
      400 V
    • Rated oper­a­tional voltage Ue
      250 - 400 V
    Frequency
    • Frequency
      50 - 60 Hz
    Use condi­tions
    • Oper­ating temper­ature
      -5 - 40 °C
    • Stor­age/trans­port temper­ature
      -40 - 80 °C
    Connectivity
    • Type of connec­tion
      Screw terminal
    Power
    • Total power loss under IN
      4.80 W
    • Inrush power absorbed
      55 VA
    Dimen­sions
    • Height
      83 mm
    • Width
      35 mm
    • Depth
      63 mm
    Lighting
    • Max. load fluor­es­cent lamp
      800 VA
    • Max. load fluor­es­cent lamp parallel compensated
      900 VA
    Equip­ment
    • Number of NO contacts
      4
    • Number of NC contacts
      0

    Environmental value

    We are committed to bettering our environmental performance by reducing our footprint while acting as a sustainability enabler for our customers. Learn More

    RoHS conform Yes
    REACh-SVHC free Yes
