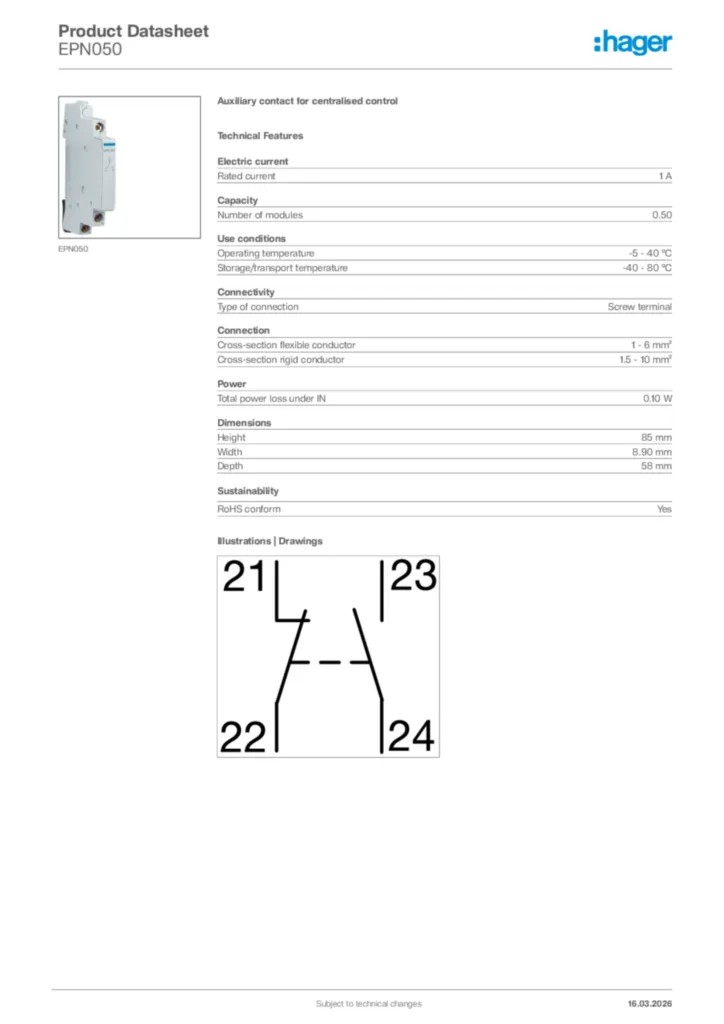

The Hager Auxiliary Contact for Centralised Control enables remote signalling/command in distribution boards. Rated 1 A and only 0.5 module (8.9 mm) wide, it saves space while ensuring reliable control. Screw terminals accept 1-6 mm² flexible and 1.5-10 mm² rigid conductors. Operates -5 to 40 °C with low 0.10 W loss. Dimensions 85×8.9×58 mm. Ideal for centralised management of circuits.
EAN
3250612360543
Packaging
1 Piece
Electronic earth leakage add-on block 4P 125A 300mA Type A HI fixed EPN050
Login to create a product list
You need to be logged into your myHager account to create product lists
Technical properties
Electric current
-
Rated current1 A
Capacity
-
Number of modules0.50
Use conditions
-
Operating temperature-5 - 40 °C
-
Storage/transport temperature-40 - 80 °C
Connectivity
-
Type of connectionScrew terminal
Connection
-
Cross-section flexible conductor1 - 6 mm²
-
Cross-section rigid conductor1.5 - 10 mm²
Power
-
Total power loss under IN0.10 W
Dimensions
-
Height85 mm
-
Width8.90 mm
-
Depth58 mm
