The Hager latching relay 1NO 230V provides reliable remote switching for lighting and general loads with energy-saving pulse operation. Rated 16A AC1 up to 250V, it suits residential and commercial use, handling fluorescent loads up to 800/900 VA. Compact 1-module (18 mm) with screw terminals for 1-6 mm² flex or 1.5-10 mm² rigid. 50-60 Hz, Ui/Ue 250V, control 230V AC or 110V DC, low quiescent current.

EAN

3250612369614

Packaging

Latching relays and accessories

Moulded Case Circuit Breaker X160 3P 40A 40kA Icu Toggle IP4X EPN510

Accessories
Technical properties
Environmental value
Documentations
More products

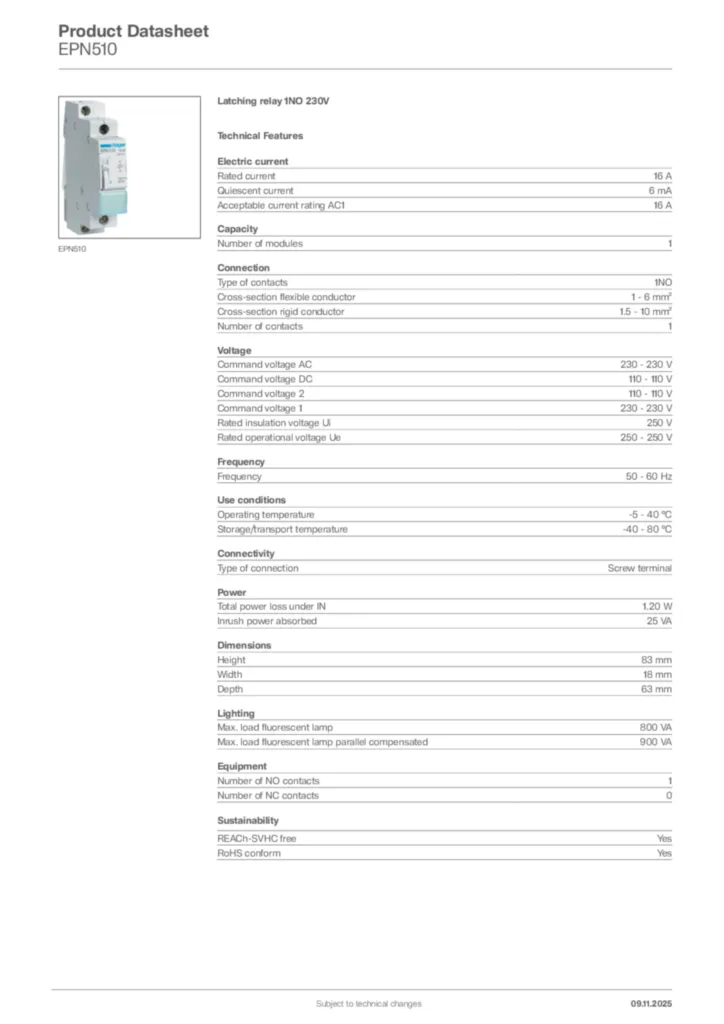

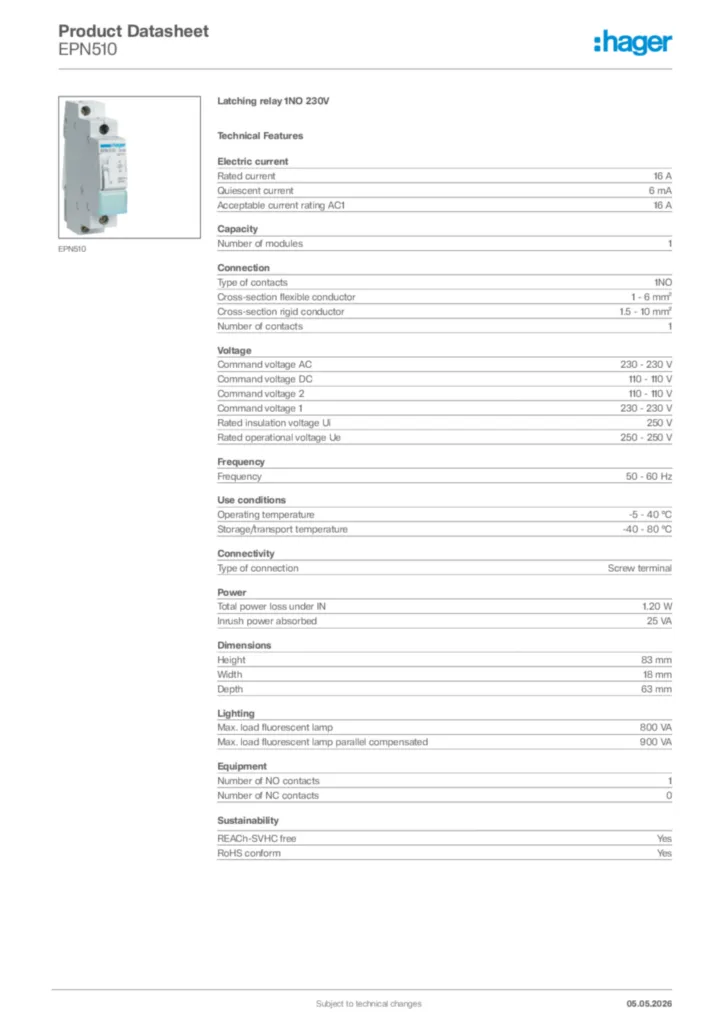

Download the data sheet

Complete your system

Auxiliary device for distribution board devices 4 products available

Technical properties

Rated current

16 A
Quiescent current

6 mA
Acceptable current rating AC1

16 A

Number of modules

1

Type of contacts

1NO
Cross-section flexible conductor

1 - 6 mm²
Cross-section rigid conductor

1.5 - 10 mm²
Number of contacts

1

Command voltage AC

230 - 230 V
Command voltage DC

110 - 110 V
Command voltage 2

110 - 110 V
Command voltage 1

230 - 230 V
Rated insulation voltage Ui

250 V
Rated operational voltage Ue

250 - 250 V

Frequency

50 - 60 Hz

Operating temperature

-5 - 40 °C
Storage/transport temperature

-40 - 80 °C

Type of connection

Screw terminal

Total power loss under IN

1.20 W
Inrush power absorbed

25 VA

Height

83 mm
Width

17.50 mm
Depth

63 mm

Max. load fluorescent lamp

800 VA
Max. load fluorescent lamp parallel compensated

900 VA

Number of NO contacts

1
Number of NC contacts

0
