The Hager Electronic latching relay 1NO 230V provides reliable latched switching for centralized control of lighting and power circuits. Rated 16 A AC1 with 1 NO contact, it is a compact 1-module (18 mm) device with quickconnect terminals for 1.5-2.5 mm² conductors. 230 V AC control, 50-60 Hz. Supports fluorescent loads up to 1200 VA (300 VA parallel compensated). Operates from -20 to 60°C; power loss 1.2 W.
EAN
3250612369270
Packaging
1 Piece
Moulded Case Circuit Breaker x160 4P 160A 40kA Icu TM A/F 690V Ui IP4X EPS410B
Login to create a product list
You need to be logged into your myHager account to create product lists
Technical properties
Electric current
-
Rated current16 A
-
Quiescent current100 mA
-
Acceptable current rating AC116 A
Capacity
-
Number of modules1
Connection
-
Type of contacts1NO
-
Cross-section flexible conductor1.5 - 2.5 mm²
-
Cross-section rigid conductor1.5 - 2.5 mm²
-
Number of contacts1
Voltage
-
Command voltage AC230 - 230 V
-
Command voltage DC0 - 0 V
-
Command voltage 1230 - 230 V
-
Rated operational voltage Ue230 - 230 V
Frequency
-
Frequency50 - 60 Hz
Use conditions
-
Operating temperature-20 - 60 °C
-
Storage/transport temperature-10 - 50 °C
Connectivity
-
Type of connectionquickconnect
Power
-
Total power loss under IN1.20 W
-
Inrush power absorbed5 VA
Dimensions
-
Height85 mm
-
Width18 mm
-
Depth64 mm
Lighting
-
Max. load fluorescent lamp1200 VA
-
Max. load fluorescent lamp parallel compensated300 VA
Equipment
-
Number of NO contacts1
-
Number of NC contacts0
Downloads
-

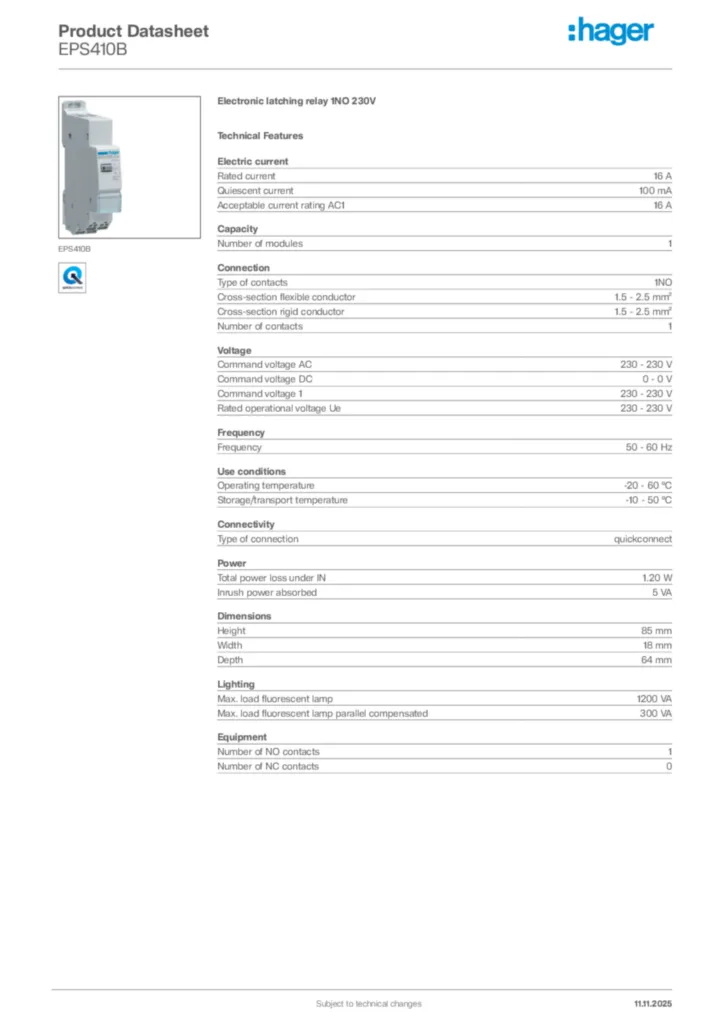

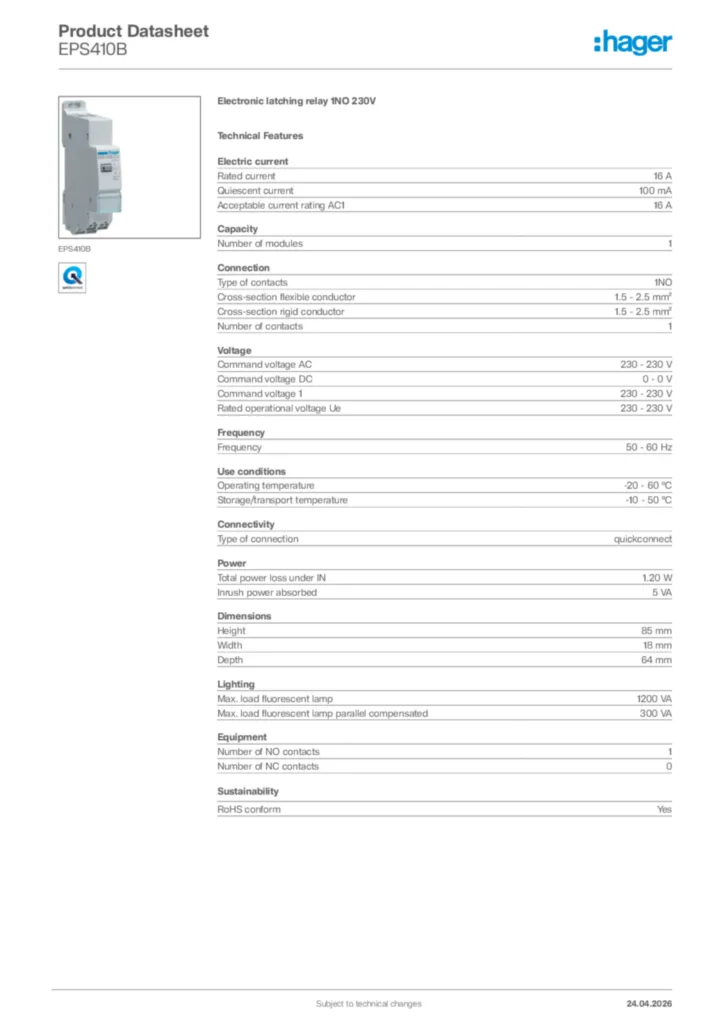

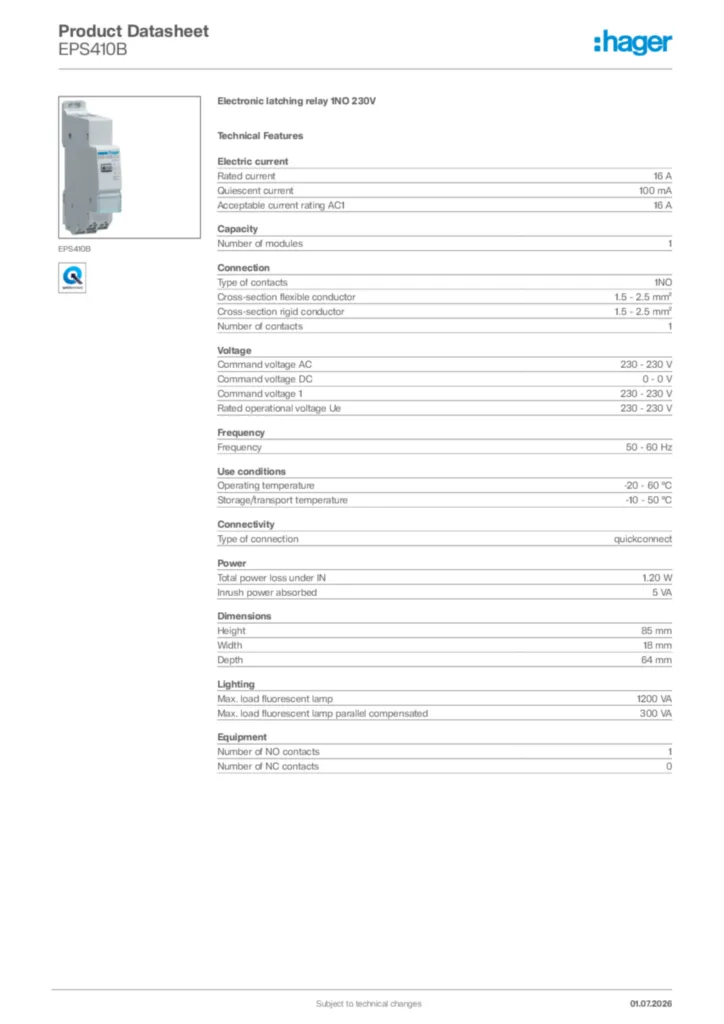

Product datasheet
