Electronic latching relay with delay timer EPS450B
Login to create a product list
You need to be logged into your myHager account to create product lists
Technical properties
Electric current
-
Rated current16 A
-
Quiescent current100 mA
-
Acceptable current rating AC116 A
Capacity
-
Number of modules1
Connection
-
Type of contacts1NO
-
Cross-section flexible conductor1.5 - 2.5 mm²
-
Cross-section rigid conductor1.5 - 2.5 mm²
-
Number of contacts1
Voltage
-
Command voltage DC0 - 0 V
-
Command voltage 210 - 26 V
-
Command voltage 1230 - 230 V
-
Rated operational voltage Ue230 - 230 V
Frequency
-
Frequency50 - 60 Hz
Use conditions
-
Operating temperature-20 - 60 °C
-
Storage/transport temperature-10 - 50 °C
Connectivity
-
Type of connectionquickconnect
Power
-
Total power loss under IN1.20 W
-
Inrush power absorbed5 VA
Dimensions
-
Height85 mm
-
Width18 mm
-
Depth60 mm
Lighting
-
Max. load fluorescent lamp1000 VA
-
Max. load fluorescent lamp parallel compensated300 VA
Equipment
-
Number of NO contacts1
-
Number of NC contacts0
Settings
-
Time delay5 Min - 1 h
Texts
-
Switch modeNO contact
-
Type of connectionWith quickconnect plug-in terminals
-
Installation modeFor mounting on DIN rail
Environmental value
We are committed to bettering our environmental performance by reducing our footprint while acting as a sustainability enabler for our customers. Learn More
Certifications and documents
Downloads
-
Product datasheet

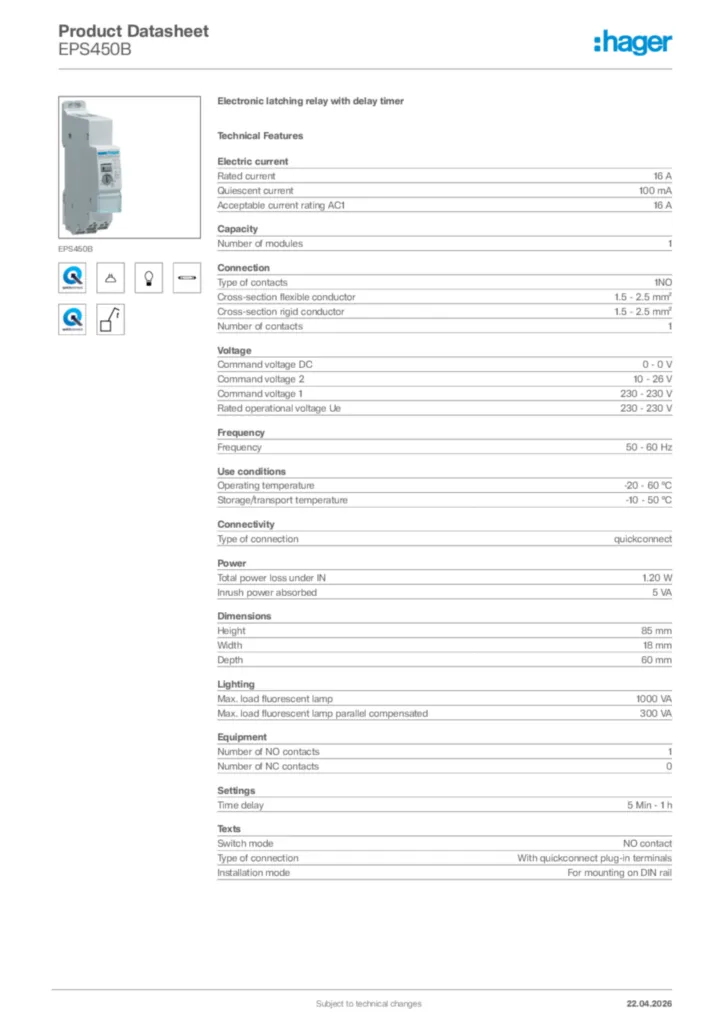

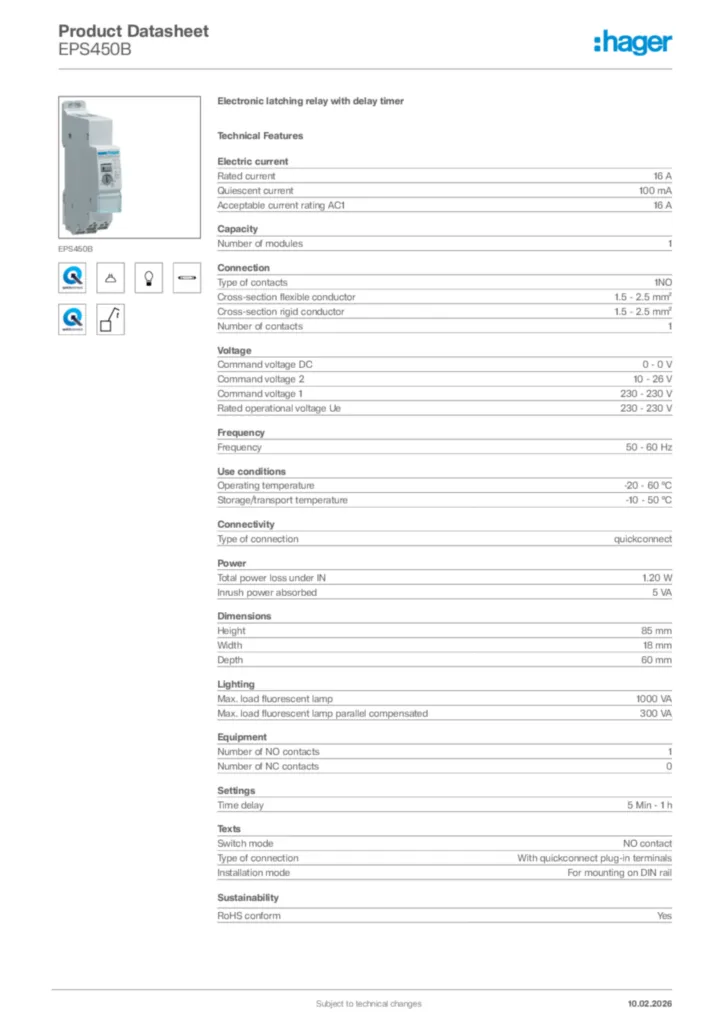

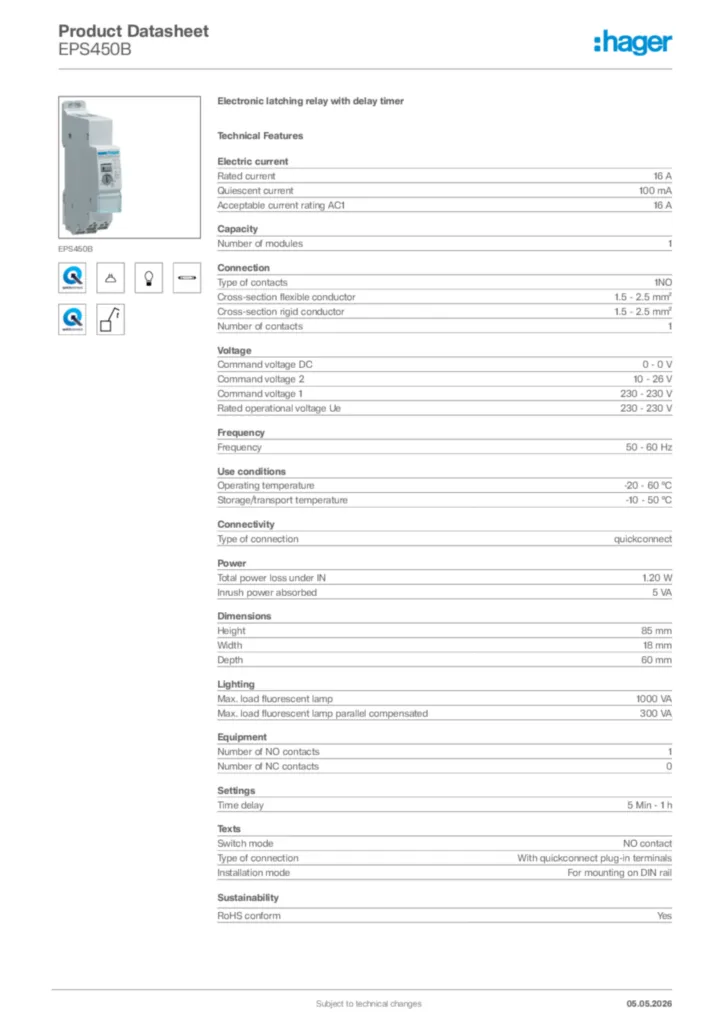

Hager Product data sheet EPS450B
