Electronic latching relay 1NO 230V EPN410
EAN
3250612369287
Packaging
1 Piece
Login to create a product list
You need to be logged into your myHager account to create product lists
Complete your system
Optional accessories
-
Auxiliary device for distribution board devices 4 products available
Technical properties
Electric current
-
Rated current16 A
-
Quiescent current100 mA
-
Acceptable current rating AC116 A
Capacity
-
Number of modules1
Connection
-
Type of contacts1NO
-
Cross-section flexible conductor1 - 6 mm²
-
Cross-section rigid conductor1 - 10 mm²
-
Number of contacts1
Voltage
-
Command voltage AC230 - 230 V
-
Command voltage DC0 - 0 V
-
Command voltage 1230 - 230 V
-
Rated operational voltage Ue250 - 250 V
Frequency
-
Frequency50 - 60 Hz
Use conditions
-
Operating temperature-20 - 60 °C
-
Storage/transport temperature-10 - 50 °C
Connectivity
-
Type of connectionScrew terminal
Power
-
Total power loss under IN1.20 W
-
Inrush power absorbed5 VA
Dimensions
-
Height85 mm
-
Width18 mm
-
Depth60 mm
Lighting
-
Max. load fluorescent lamp1000 VA
-
Max. load fluorescent lamp parallel compensated300 VA
Equipment
-
Number of NO contacts1
-
Number of NC contacts0
Downloads
-

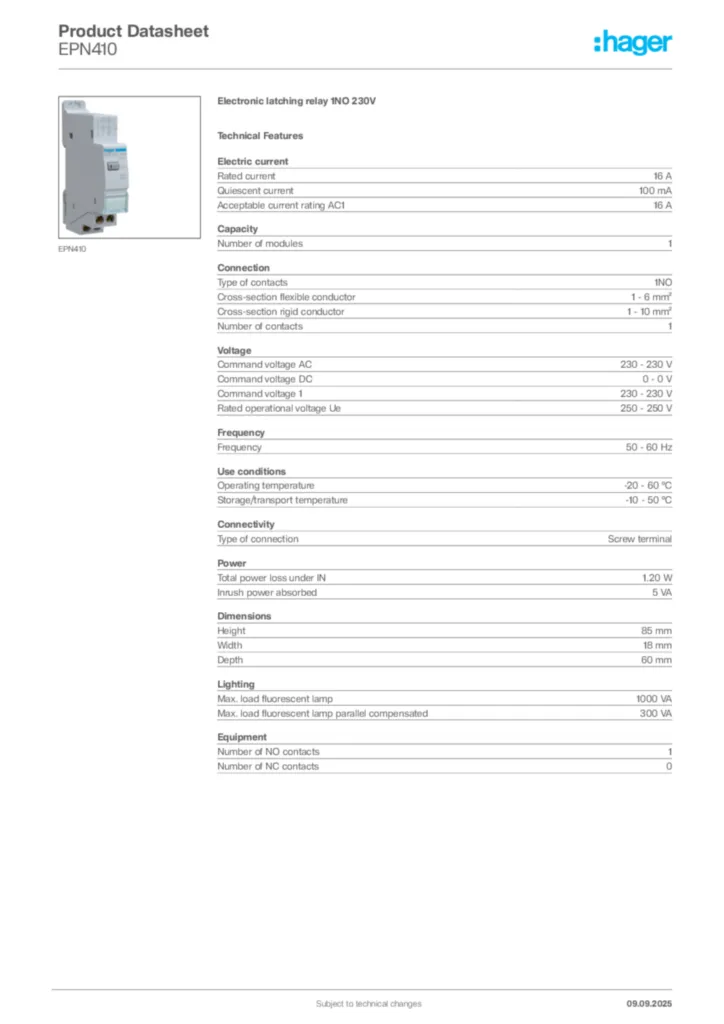

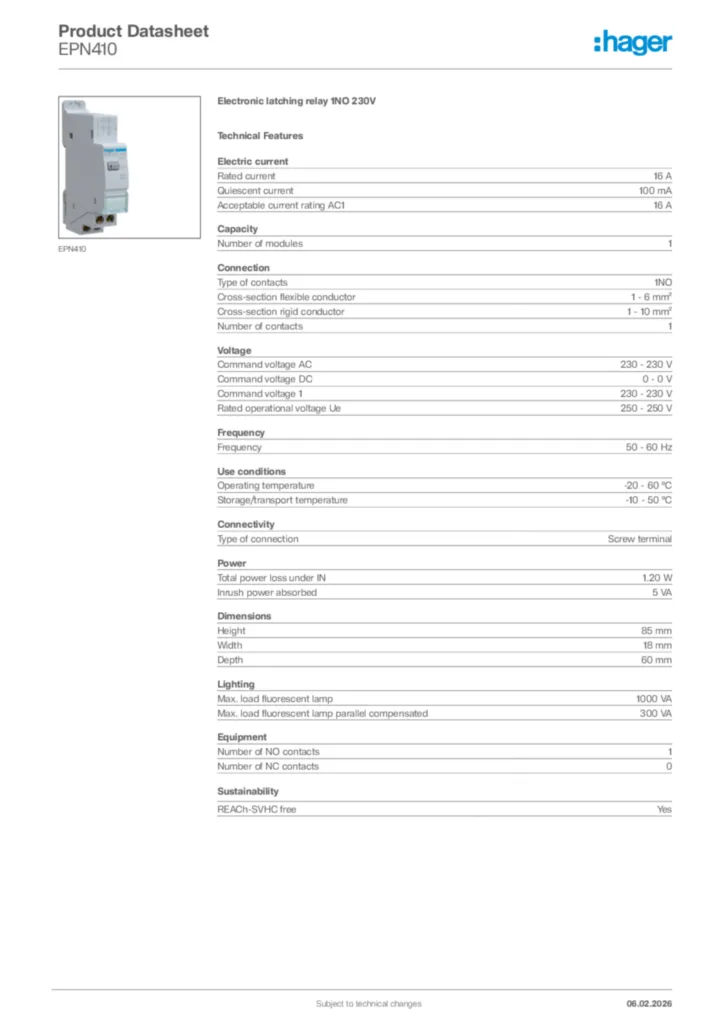

Product datasheet
Hager Product data sheet EPN410
Electronic latching relay 1NO 230V
PDF -
Declaration of conformity
Declaration of conformity for Remote switch
Declaration of conformity International 2019-10-24
PDF107,23 kB
More documentation
