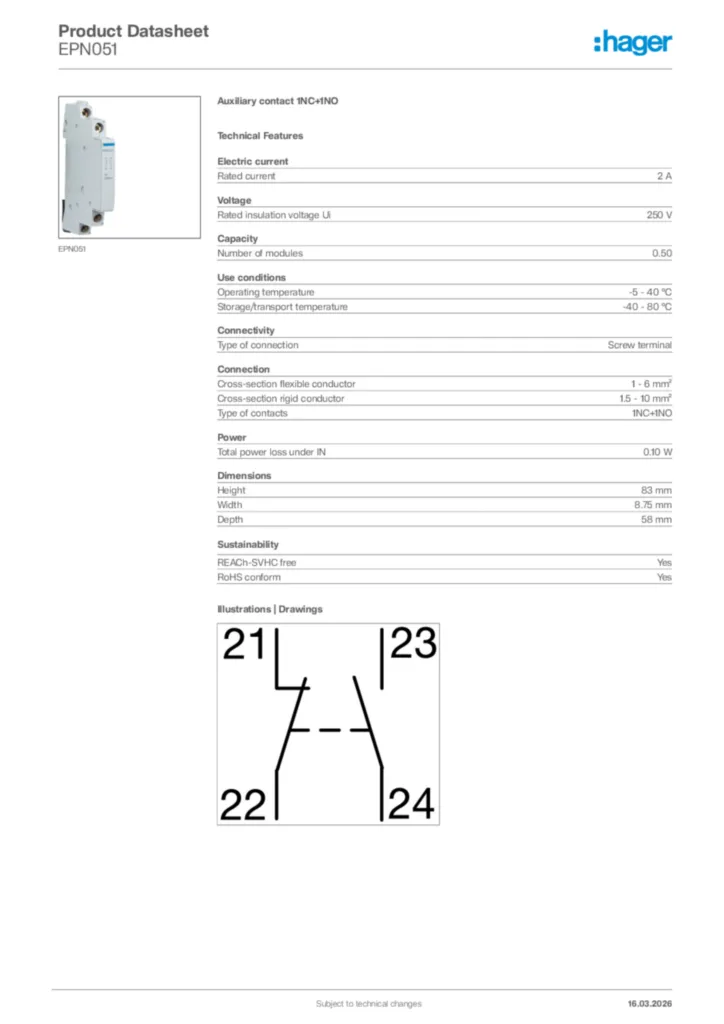

Auxiliary contact 1NC+1NO EPN051
Login to create a product list
You need to be logged into your myHager account to create product lists
Complete your system
Compatible products
-
Referenced by 19 products available
Referenced by
-
EPN520Latching relay 2NO 230V
-
EPN510Latching relay 1NO 230V
-
EPN519Latching relay 1NC+1NO 12V
-
EPN540Latching relay 4NO 230V
-
EPN541Latching relay 4NO 24V
-
EPN518Latching relay 1NC+1NO 24V
-
EPN515Latching relay 1NC+1NO 230V
-
EPN513Latching relay 1NO 24V
-
EPN511Latching relay 1NO 12V
-
EPN524Latching relay 2NO 24V
-
EPN410Electronic latching relay 1NO 230V
-
EPN521Latching relay 2NO 12V
-
EPN525Latching relay 2NC+2NO 230V
-
EPN503Latching relay 1NO+1NC 48V
-
EPN501Latching relay 1NO 48V
-
EPN546Latching relay 3NO+1NC 230V
-
EPN548Latching relay 4NO 48V
-
EPN526Latching relay 2NO 48V
-
EPN516Latching relay 1NC+1NO 110/127V
Technical properties
Electric current
-
Rated current2 A
Voltage
-
Rated insulation voltage Ui250 V
Capacity
-
Number of modules0.50
Use conditions
-
Operating temperature-5 - 40 °C
-
Storage/transport temperature-40 - 80 °C
Connectivity
-
Type of connectionScrew terminal
Connection
-
Cross-section flexible conductor1 - 6 mm²
-
Cross-section rigid conductor1.5 - 10 mm²
-
Type of contacts1NC+1NO
Power
-
Total power loss under IN0.10 W
Dimensions
-
Height83 mm
-
Width8.75 mm
-
Depth58 mm
