The Hager latching relay 2NO 230V is a 1‑module (17.5 mm) device for energy‑efficient remote switching, requiring no holding power. Rated 16 A AC‑1 at 250 V with two NO contacts, it suits lighting and general load control. Coil control: 230 V AC or 110 V DC, 50/60 Hz. Supports fluorescent loads up to 800 VA (900 VA parallel‑compensated). Screw terminals accept 1-6 mm² flexible and 1.5-10 mm² rigid conductors.

EAN

3250612369539

Packaging

1 Piece

Latching relays and accessories

Moulded Case Circuit Breaker h1000 3P 800A 70kA LSI adjustable EPN520

Accessories
Technical properties
Environmental value
Documentations
More products

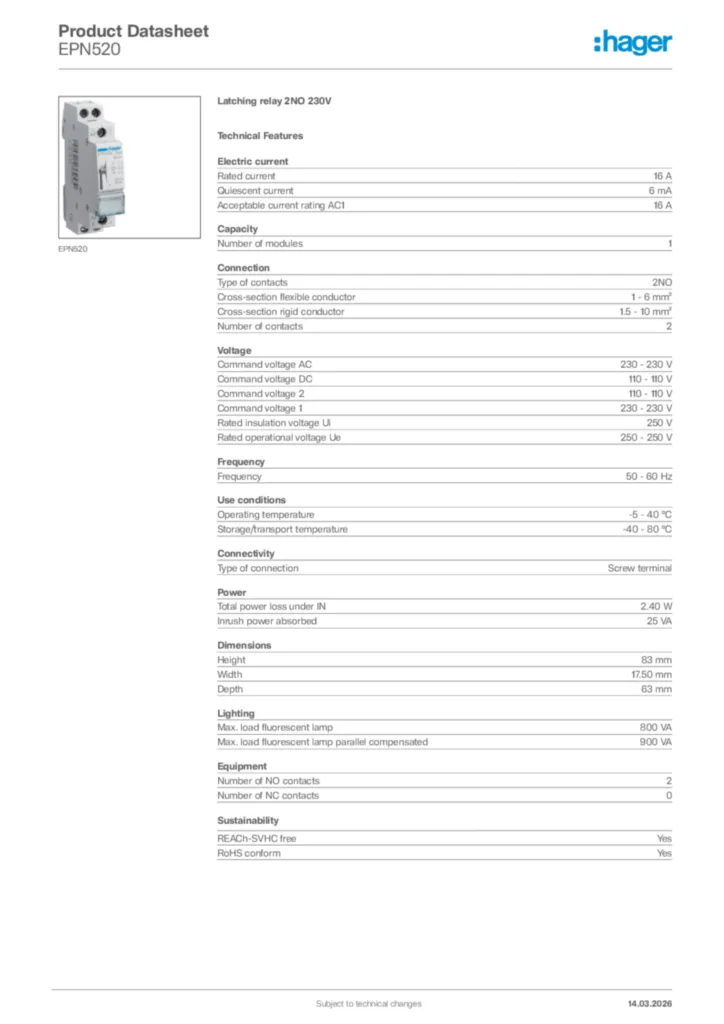

Download the data sheet

Complete your system

Auxiliary device for distribution board devices 4 products available

Technical properties

Rated current

16 A
Quiescent current

6 mA
Acceptable current rating AC1

16 A

Number of modules

1

Type of contacts

2NO
Cross-section flexible conductor

1 - 6 mm²
Cross-section rigid conductor

1.5 - 10 mm²
Number of contacts

2

Command voltage AC

230 - 230 V
Command voltage DC

110 - 110 V
Command voltage 2

110 - 110 V
Command voltage 1

230 - 230 V
Rated insulation voltage Ui

250 V
Rated operational voltage Ue

250 - 250 V

Frequency

50 - 60 Hz

Operating temperature

-5 - 40 °C
Storage/transport temperature

-40 - 80 °C

Type of connection

Screw terminal

Total power loss under IN

2.40 W
Inrush power absorbed

25 VA

Height

83 mm
Width

17.50 mm
Depth

63 mm

Max. load fluorescent lamp

800 VA
Max. load fluorescent lamp parallel compensated

900 VA

Number of NO contacts

2
Number of NC contacts

0

Environmental value

We are committed to bettering our environmental performance by reducing our footprint while acting as a sustainability enabler for our customers. Learn More

RoHS conform Yes

REACh-SVHC free Yes
