    • DAP456509016
    The Hager PacPost 650 mm traffic white floor-mounted service post provides tidy, single-sided power/data distribution for offices and commercial areas. Its slim 66×66 mm rectangular varnished aluminium profile (RAL 9016) offers a 1900 mm² wiring space, bottom cable entry, and one 45 mm lid. Designed for secure ground mounting when ceiling feeds aren’t possible, it ensures robust, discreet integration.
    EAN
    4012740015844
    VPE
    1 piece
    • Floor connec­tion columns - standard - DAP

    Hager DA200 Double-sided service pole 2.7-3.0 m adjustable RAL9016 DAP456509016

    catalog.product_page.add_to_list_button
    catalog.product_page.add_to_list_button

    catalog.lists.product_addition.login_popup.title

    catalog.lists.product_addition.login_popup.descriptive_text

    catalog.lists.product_addition.login_popup.account_creation_button catalog.lists.product_addition.login_popup.login_button

    Hager DA200 Double-sided service pole 2.7-3.0 m adjustable RAL9016

    DAP456509016

    • Accessories
    • Technical characteristics
    • catalog.pageproduct.title_sustainability.h2
    • Documentations
    • More products

    product.page.accessories.title

    product.page.accessories.associated-products

    • Parti­tion for install­a­tion duct 1 product.page.accessories.products-available
    • Trans­ition adapter for domestic switching devices 1 product.page.accessories.products-available

    product.page.accessories.title-modal

    • Parti­tion for install­a­tion duct
    • Trans­ition adapter for domestic switching devices
    • M2024

      Divider H: 40 mm
      €0.00  / *
    • L4770

      Frame for vertical mounting 45x45
      €0.00  / *

    Technical characteristics

    Dimen­sions
    • Depth
      66 mm
    • Width
      66 mm
    • Install­a­tion height
      0.65 - 0.65 m
    • Height adjust­ment
      0
    • Inner cross-sec­tion
      1900 - 1900 mm²
    • Pole shape
      Rect­an­gular
    • Lid width
      45 mm
    Cover, door
    • Number of mount­able lids
      1
    Equip­ment
    • Adjustable
      No
    • Is port­able
      No
    Cable
    • Cable entry posi­tion
      Bottom
    Install­a­tion, mounting
    • Ceiling mounting possible
      No
    • Suit­able for ground mounting
      Yes
    Mater­ials
    • Material
      Aluminium
    • Treat­ment
      Varnished
    • Colour
      Traffic white
    • RAL code
      9016
    Config­ur­a­tion
    • Number of sides for install­a­tion
      Single side

    catalog.pageproduct.title_sustainability.h2

    We are committed to bettering our environmental performance by reducing our footprint while acting as a sustainability enabler for our customers. Learn More

    RoHS conform Yes

    catalog.pageproduct.sustainability_block.downloads_h3

    PEP - Non-equipped service posts - series DAP45 & DAP80 & DBP45 (english)
    PDF
    393,82 kB
    REACH declaration DAP456509016
    PDF
    RoHS report DAP456509016
    PDF

    Downloads

    • Image DAP456509016 | Hager UK

      Product Image DAP456509016

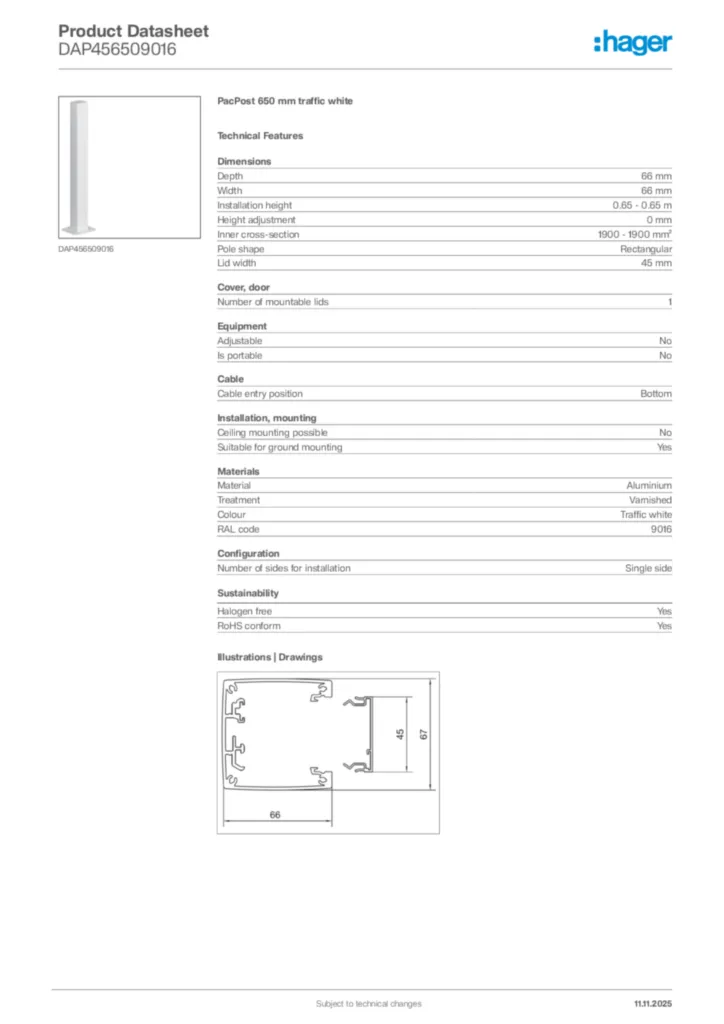

    • GeneratedProductDatasheet

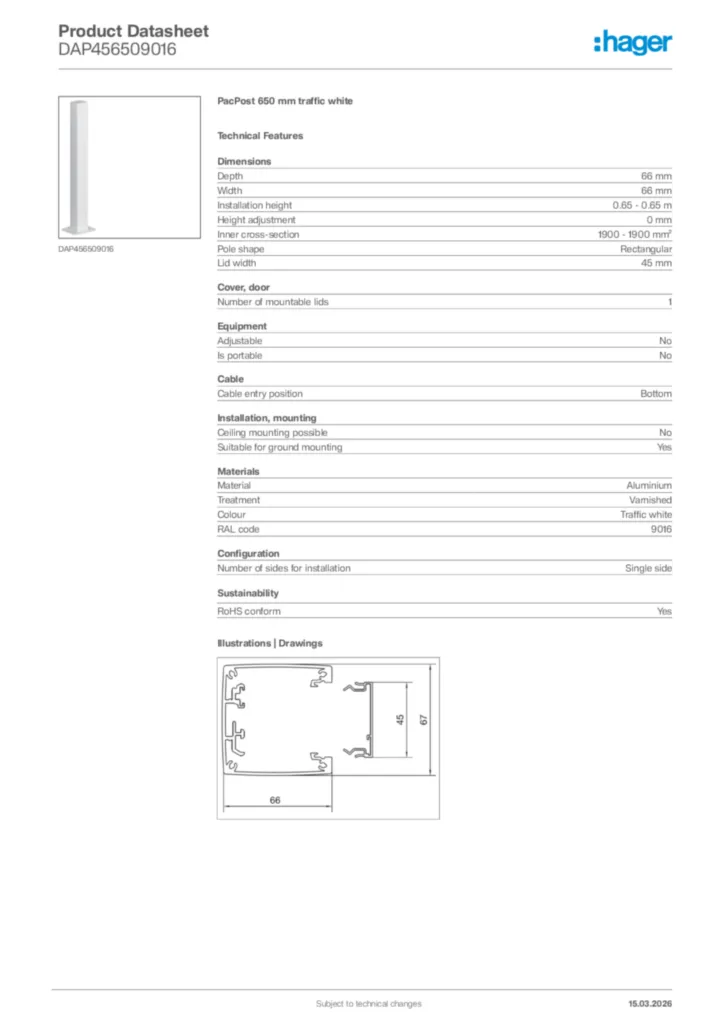

      Image Hager Product data sheet DAP456509016 | Hager UK

      Hager Product data sheet DAP456509016

      PacPost 650 mm traffic white

      PDF

    • ProductECDeclaration

      Image Declaration of conformity en-GB 2026-08-07 | Hager UK

      Declaration of conformity en-GB 2026-08-07

      PDF
      285,13 kB
      Image EC declaration of conformity DA_DB_DE | Hager UK

      EC declaration of conformity DA_DB_DE

      Declaration of conformity International 2017-11-20

      PDF
      133,23 kB
