PacPost double 650 mm traffic white DAP2456509016

EAN
4012740015820
Packaging
1 Piece

You have to log in with your myHager profile to see prices and to order.

Add to a list
Add to a list

Login to create a product list

You need to be logged into your myHager account to create product lists

Create an account Sign in

PacPost double 650 mm traffic white

DAP2456509016

  • Technical properties
  • Environmental value
  • Documentations
  • More products

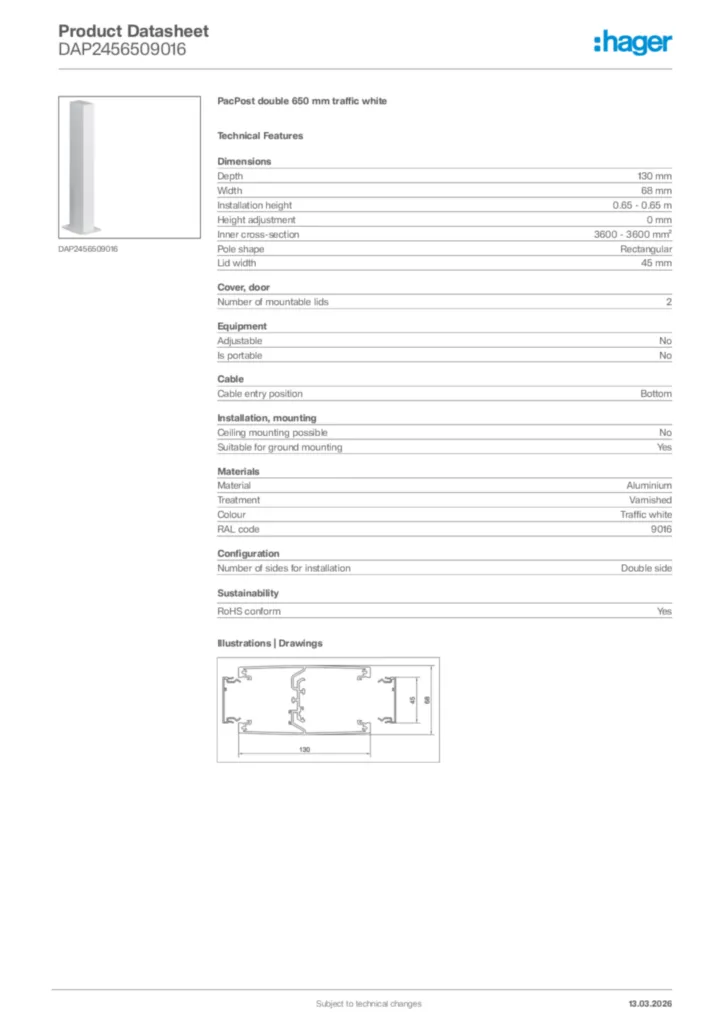

Download the data sheet

Technical properties

Dimen­sions
  • Depth
    130 mm
  • Width
    68 mm
  • Install­a­tion height
    0.65 - 0.65 m
  • Height adjust­ment
    0
  • Inner cross-sec­tion
    3600 - 3600 mm²
  • Pole shape
    Rect­an­gular
  • Lid width
    45 mm
Cover, door
  • Number of mount­able lids
    2
Equip­ment
  • Adjustable
    No
  • Is port­able
    No
Cable
  • Cable entry posi­tion
    Bottom
Install­a­tion, mounting
  • Ceiling mounting possible
    No
  • Suit­able for ground mounting
    Yes
Mater­ials
  • Material
    Aluminium
  • Treat­ment
    Varnished
  • Colour
    Traffic white
  • RAL code
    9016
Config­ur­a­tion
  • Number of sides for install­a­tion
    Double side

Environmental value

We are committed to bettering our environmental performance by reducing our footprint while acting as a sustainability enabler for our customers. Learn More

RoHS conform Yes
Halogen free Yes

Certifications and documents

PEP - Non-equipped service posts - series DAP45 & DAP80 & DBP45 (english)
PDF
393,82 kB
Hager REACH declaration DAP2456509016
PDF
Hager RoHS report DAP2456509016
PDF

Downloads

  • Image DAP2456509016 | Hager Africa

    Product Image DAP2456509016

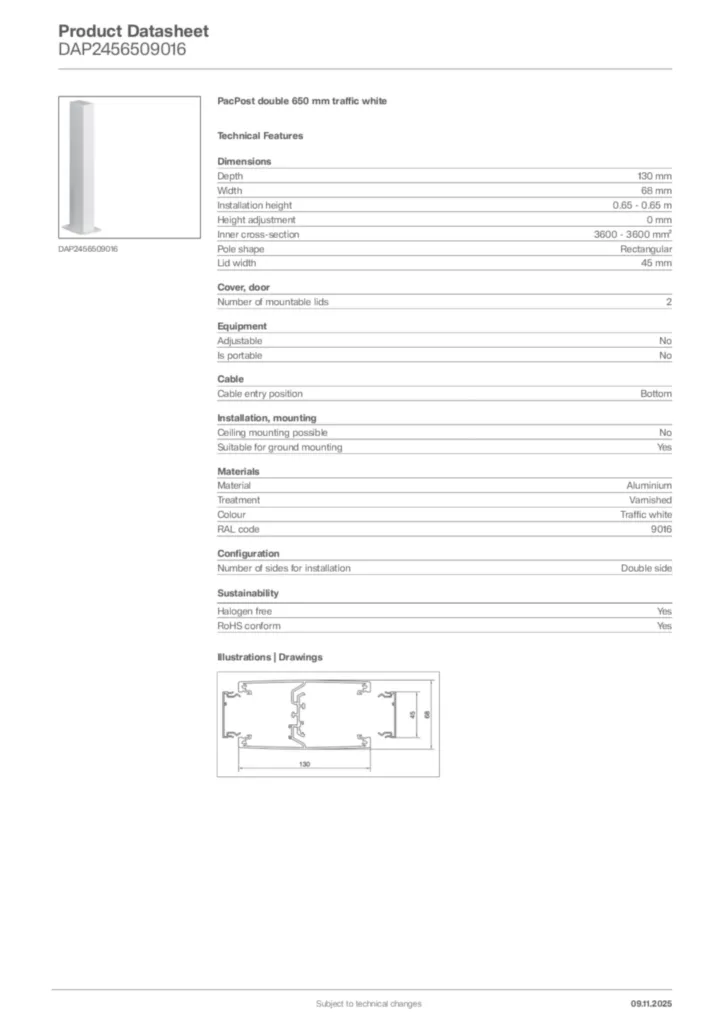

  • Product datasheet

    Image undefined | Hager Africa

    undefined

    PDF

  • Declaration of conformity

    Image Declaration | Hager Africa

    Declaration

    Declaration of conformity International 2021-03-09

    PDF
    109,49 kB
    Image EC declaration of conformity DA_DB_DE | Hager Africa

    EC declaration of conformity DA_DB_DE

    Declaration of conformity International 2017-11-20

    PDF
    133,23 kB
