Steel enclosure, Univers, IP41, CL1, 1850x300x400 mm FS21G

EAN
3250610700310
Packaging
1 Piece

You have to log in with your myHager profile to see prices and to order.

Add to a list
Add to a list

Login to create a product list

You need to be logged into your myHager account to create product lists

Create an account Sign in

Steel enclosure, Univers, IP41, CL1, 1850x300x400 mm

FS21G

  • Accessories
  • Technical properties
  • Environmental value
  • Documentations
  • More products
Download the data sheet

Complete your system

Optional accessories

  • See more (27)
    • Gland plate for enclosure 1 products available
    • Insert for lock system 2 products available
    • Docu­ment holder 6 products available
    • Lock system 6 products available
    • Compon­ents for wiring, cable entry and cable fixing 3 products available
    • Accessor­ies/s­pare parts for earthing and light­ning 1 products available

    Complete your system

    • Gland plate for enclosure
    • Insert for lock system
    • Docu­ment holder
    • Lock system
    • Compon­ents for wiring, cable entry and cable fixing
    • Accessor­ies/s­pare parts for earthing and light­ning
    • Cable gland
    • Base/­base element
    • Trans­port accessories
    • Mounting accessories
    • Distrib­utor assembly busbars
    • Compon­ents for door
    • FZ422

      Metal cable entry plate CL1, Univers, IP55 230x120 mm
      0.00 €  / *
    • FZ517

      Key lock insert, Quadro5, 6 mm
      0.00 €  / *
    • FZ537PB

      Push Button Insert for sealing handle lock univers FZ537
      0.00 €  / *
    • FZ794

      Document holder, transparent, DIN A4, adhesive
      0.00 €  / *
    • FZ757M

      Document holder, magnetic, DIN A4
      0.00 €  / *
    • FZ757A5

      Document holder, adhesive, DIN A5
      0.00 €  / *
    • FZ757A4

      Document holder, glued, DIN A4
      0.00 €  / *
    • FZ818

      Document holder, plastic, DIN A4, adhesive
      0.00 €  / *
    • FZ710

      Document holder, Univers
      0.00 €  / *
    • FZ537

      Rotary and sealing handle lock, Univers
      0.00 €  / *
    • FZ520

      Euro-profile cylinder 455 for swing lever FZ537
      0.00 €  / *
    • FZ519

      Euro-profile cylinder 405 for swing lever FZ537
      0.00 €  / *
    • FZ506

      Euro-profile cylinder 1242E for swing lever FZ537
      0.00 €  / *
    • FZ508

      Swing lever, univers, with cylinder Nr.E1242 with 2 keys for encl.IP5-6, sealable
      0.00 €  / *
    • FZ530

      Lock, univers, T-handle, for enclosures FA / FT / FG
      0.00 €  / *
    • FZ771A

      Adapter for vertical connection of 300mm wide FR/FS enclosures
      0.00 €  / *
    • FZ7801

      Cable rail 1 section, Univers, L230 mm for plinth
      0.00 €  / *
    • FZ800E

      Adj. rail holder, Univers, CL1, D275 mm RAL7035
      0.00 €  / *
    • UZ009

      PE cable, universN, 25mm², 300mm, both cable shoe 6mm / 8mm
      0.00 €  / *
    • VZ020M

      Cable gland, vector, IP65, M20, plastic
      0.00 €  / *
    • FZ651A

      Plinth, Univers, H100 300x400 mm
      0.00 €  / *
    • FZ661A

      Plinth, Univers, H200 300x400 mm
      0.00 €  / *
    • FZ831

      Crane rings, Univers, M8 thread, 140 kg per ring
      0.00 €  / *
    • FZ829

      Wall fixation lugs, Univers
      0.00 €  / *
    • FZ721B

      Horizontal coupling kit, Univers, L400 mm
      0.00 €  / *
    • UE21D1

      Kit, universN, 300x250mm, with busbar 50mm, 4x 25x4mm, vertical
      0.00 €  / *
    • FZ739A

      Door wiring profile, Univers, H250 mm
      0.00 €  / *

    Technical properties

    Dimen­sions
    • Height
      1,850 mm
    • Width
      300 mm
    • Depth
      400 mm
    • Thick­ness of side­wall
      1.50 mm
    Safety
    • Ingress Protec­tion (IP) class
      IP41
    • Protec­tion class
      Isol­a­tion class I
    • Locking type
      Double lock bar, Without lock
    • Impact resist­ance IK
      IK07
    Equip­ment
    • Number of section in width
      1
    • Number of flange plate open­ings
      2
    • Number of rows
      12
    Install­a­tion, mounting
    • Mounting on
      Floor mounting, Wall mounting
    • Suit­able for outdoor usage
      No
    Mater­ials
    • Colour
      Light grey
    • RAL code
      7035
    • Treat­ment
      Powder coated
    • Material
      Steel
    • Surface finish
      Matt
    Cover, door
    • Number of cabinet doors
      1
    • Number of locks
      1
    • Door/­cover is trans­parent
      No
    Elec­tric current
    • Rated current
      800 A
    Voltage
    • Nominal voltage
      690 - 690 V

    Environmental value

    We are committed to bettering our environmental performance by reducing our footprint while acting as a sustainability enabler for our customers Learn More

    RoHS conform Yes

    Certifications and documents

    FWB enclosure,UNIVERS range, 5-rows 180 modules
    PDF
    49,47 MB
    Hager REACH declaration FS21G
    PDF
    Hager RoHS report FS21G
    PDF

    Downloads

    • Product image

      Image FS21G | Hager

      Product Image FS21G

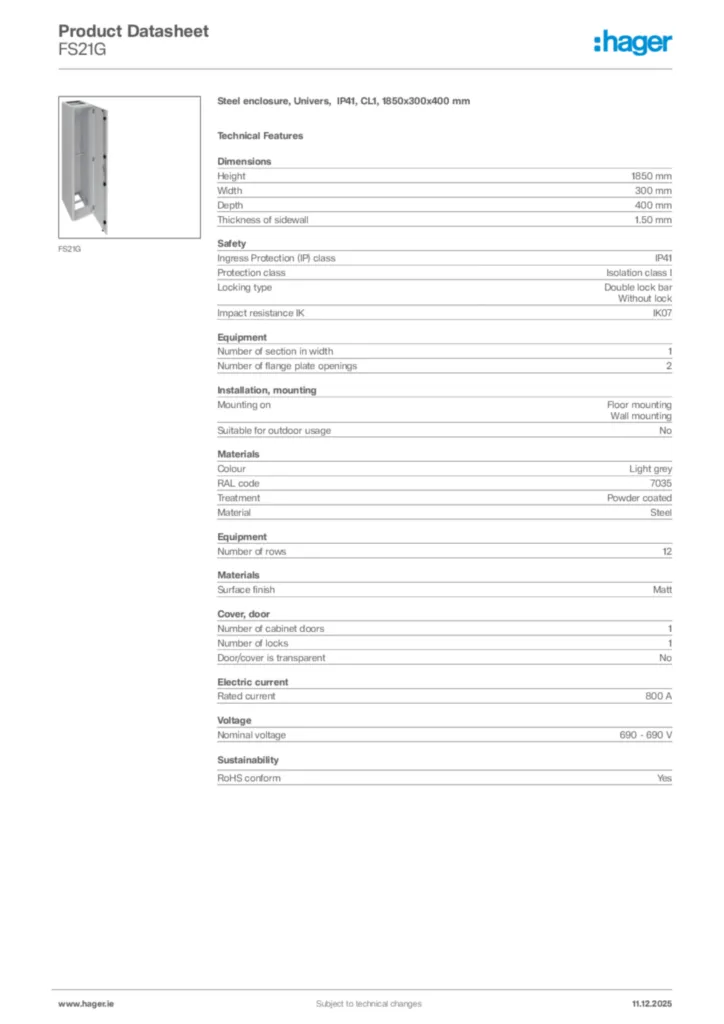

    • Product datasheet

      Image Hager Product data sheet FS21G | Hager

      Hager Product data sheet FS21G

      Steel enclosure, Univers, IP41, CL1, 1850x300x400 mm

      PDF

    • Declaration of conformity

      Image EU Declaration of Conformity | Hager

      EU Declaration of Conformity

      Declaration of conformity en-GB 2025-03-14

      PDF
      684,89 kB
      Image EU Declaration of Conformity | Hager

      EU Declaration of Conformity

      Declaration of conformity en-GB 2025-03-14

      PDF
      717,48 kB
    More documentation

    Discover more of this product range

      5
    • 1
      FR22E1 - Steel enclosure, Univers, IP55, CL1, 1850x550x275 mm, plinth H100 mm
      FR22E1
      Steel enclosure, Univers, IP55, CL1, 1850x550x275 mm, plinth H100 mm
    • 2
      FR21E2 - Steel enclosure, Univers, IP55, CL1, 1850x300x275 mm, plinth H200 mm
      FR21E2
      Steel enclosure, Univers, IP55, CL1, 1850x300x275 mm, plinth H200 mm
    • 3
      FR21G1 - Steel enclosure, Univers, IP55, CL1, 1850x300x400 mm, plinth H100 mm
      FR21G1
      Steel enclosure, Univers, IP55, CL1, 1850x300x400 mm, plinth H100 mm
    • 4
      FR21G2 - Steel enclosure, Univers, IP55, CL1, 1850x300x400 mm, plinth H200 mm
      FR21G2
      Steel enclosure, Univers, IP55, CL1, 1850x300x400 mm, plinth H200 mm
    • 5
      FR22V1 - Steel enclosure, Univers, IP55, CL1, 1850x550x400 mm, plinth H100 mm
      FR22V1
      Steel enclosure, Univers, IP55, CL1, 1850x550x400 mm, plinth H100 mm
