Cable gland, vector, IP65, M20, plastic VZ020M
EAN
3250616669529
Packaging
20 Pieces
Login to create a product list
You need to be logged into your myHager account to create product lists
Complete your system
Compatible products
-
Referenced by 104 products available
Referenced by
-
FS23GSteel enclosure, Univers, IP41, CL1, 1850x800x400 mm
-
FR21G2Steel enclosure, Univers, IP55, CL1, 1850x300x400 mm, plinth H200 mm
-
FR26G1Steel enclosure, Univers, IP55, CL1, 1850x1550x400mm, plinth H100 mm
-
FR25G1Steel enclosure, Univers, IP55, CL1, 1850x1300x400 mm, plinth H100 mm
-
FR24G1Steel enclosure, Univers, IP55, CL1, 1850x1050x400 mm, plinth H100 mm
-
FR23G1Steel enclosure, Univers, IP55, CL1, 1850x800x400 mm, plinth H100 mm
-
FR22G1Steel enclosure, Univers, IP55, CL1, 1850x550x400 mm, plinth H100 mm
-
FR21G1Steel enclosure, Univers, IP55, CL1, 1850x300x400 mm, plinth H100 mm
-
FR94GSteel enclosure, Univers, IP55, CL1, 1400x1050x400 mm
-
FR93GSteel enclosure, Univers, IP55, CL1, 1400x800x400 mm
-
FR92GSteel enclosure, Univers, IP55, CL1, 1400x550x400 mm
-
FS25GSteel enclosure, Univers, CL1, 350x800x275 mm 72 mod
-
FS24GSteel enclosure, Univers, IP41, CL1, 1850x1050x400 mm
-
FR24K1Steel enclosure, Univers, glazed door IP55 CL1, 1850x1050x275 mm, plinth H100 mm
-
FR22K2Steel enclosure, Univers, IP55, CL1, 1850x550x275 mm, plinth H200 mm
-
FR26K1Steel enclosure, Univers, glazed door IP55 CL1, 1850x1550x275 mm, plinth H100 mm
-
FR25K1Steel enclosure, Univers, glazed door IP55 CL1, 1850x1300x275 mm, plinth H100 mm
-
FR23K2Steel enclosure, Univers, IP55, CL1, 1850x800x275 mm, plinth H200 mm
-
FR23K1Steel enclosure, Univers, glazed door IP55, CL1, 1850x800x275 mm, plinth H100 mm
-
FR22K1Steel enclosure, Univers, glazed door IP55, CL1, 1850x550x275 mm, plinth H100 mm
Technical properties
Dimensions
-
Height36 mm
-
Width30 mm
-
Spanner width in mm24 mm
-
Depth30 mm
-
Thread length8 mm
Connection
-
Clamping range8 - 13 mm
Materials
-
MaterialPolyamide (PA), Thermoplastic
-
ColourLight grey
-
RAL code7035
-
TreatmentUntreated
Safety
-
Impact-resistantYes
-
Ingress Protection (IP) classIP65
Use conditions
-
Operating temperature-20 - 100 °C
Equipment
-
Thread size metric0 - 20
-
With bending protectionYes
-
With locknutYes
-
Safe use in explosive atmosphereNo
-
Thread pitch1.50
Environmental value
We are committed to bettering our environmental performance by reducing our footprint while acting as a sustainability enabler for our customers Learn More
Certifications and documents
Downloads
-
Product image
-
Product datasheet

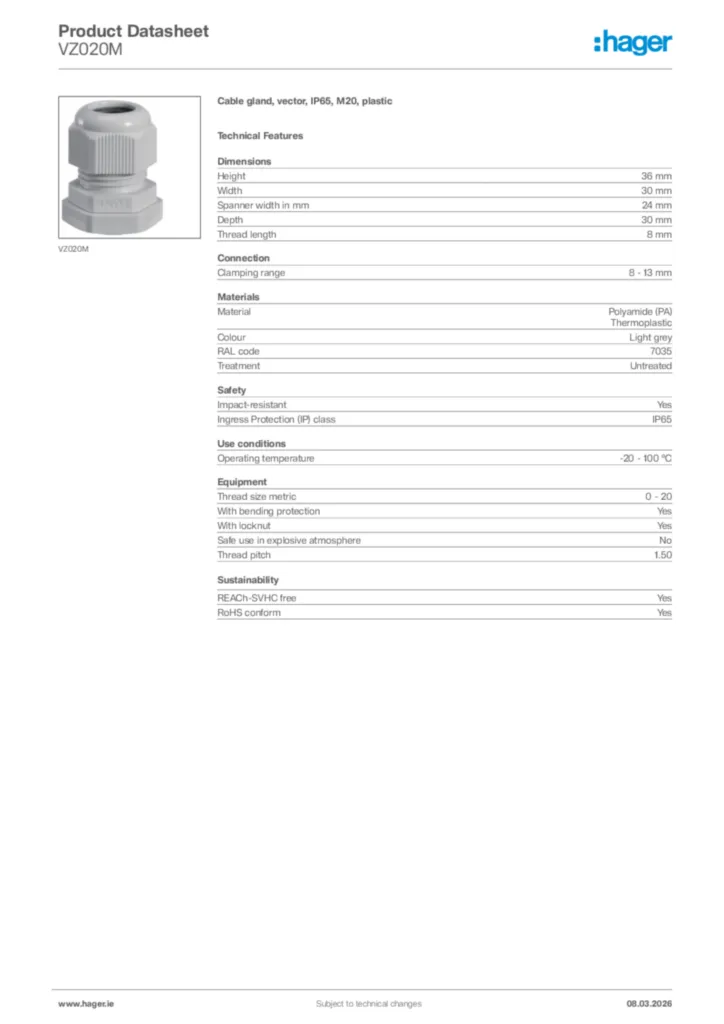

Hager Product data sheet VZ020M
Cable gland, vector, IP65, M20, plastic
PDF -
Declaration of conformity
Declaration
Declaration of conformity International 2022-11-14
PDF257,02 kB
Declaration
Declaration of conformity International 2022-12-19
PDF258,36 kB
