RCBO 4P 25A C-curve 10kA 30mA Type A Electromechanical ADX425T
Spare part: check availability with your electrical wholesaler
Login to create a product list
You need to be logged into your myHager account to create product lists
Complete your system
Optional accessories
-
Locking interlocking functions 1 products available -
Under voltage coil 1 products available -
Shunt release 2 products available -
Auxiliaries contact block 2 products available -
Modular phase busbar 9 products available
Complete your system
-
KB163P
Insulated busbar 1P 63A prong 10mm² brown 13M
-
KB163NInsulated busbar 1P 63A prong 10mm² blue 13M
-
KB181A1Insulated prong busbar 1P 80A 16mm² 6C for RCBO
-
KB181G1
Insulated prong busbar 1P 80A 16mm² 9C for RCBO
-
KDN180AInsulated busbar 1P 80A fork 16mm² 12M
-
KDN180GInsulated busbar 1P 80A fork 16mm² 18M
-
KDN380GInsulated busbar 3P 80A fork 16mm² 18M
-
KDN380AInsulated busbar 3P 80A fork 16mm² 12M
-
KDN280AInsulated busbar 2P 80A fork 16mm² 12M
Technical properties
Architecture
-
Type of pole4P
-
Number of protected poles4
-
CurveC
Safety
-
Residual current typeA
-
Ingress Protection (IP) classIP20
Main electrical attributes
-
Rated short-circuit breaking capacity Icn AC according to IEC 60898-110 kA
Voltage
-
Rated insulation voltage Ui500 V
-
Rated impulse withstand voltage Uimp4000 V
-
Rated operational voltage Ue230 - 415 V
-
Overvoltage category according to IEC 60947-13
-
Type voltage supplyAC
-
Dielectric strength value of power frequency2 kV
Electric current
-
Rated current25 A
-
Rated residual operating current Idn30 mA
-
Rated current -25°C31,70 A
-
Rated current at -20°C31,20 A
-
Rated current -15°C30,60 A
-
Rated current -10°C30 A
-
Rated current -5°C29,40 A
-
Rated current at 0°C28,90 A
-
Rated current 5°C28,30 A
-
Rated current 10°C27,60 A
-
Rated current 15°C27 A
-
Rated current at 20°C26,40 A
-
Rated current 25°C25,70 A
-
Rated current 30°C25 A
-
Rated current 35°C24,30 A
-
Rated current at 40°C23,60 A
-
Rated current at 45°C22,80 A
-
Rated current at 50°C22 A
-
Rated current 55°C21,20 A
-
Rated current 60°C20,40 A
-
Correction factor of rating current for 2 devices placed side by side0,80
-
Min./max. threshold value of the AC thermal operation1,13 - 1,45 A
-
Rated service breaking capacity Ics AC according to IEC 60898-17,50 kA
Power
-
Total power loss under IN12,30 W
Frequency
-
Frequency50 - 50 Hz
Installation, mounting
-
Nominal tightening torque down terminal2 - 2 Nm
-
Nominal tightening torque top terminal2 - 2 Nm
-
Type of bottom connection for modular devicesbiconnect, Bypass
Use conditions
-
Max. altitude2000 m
-
Class of energy limitation I²t3
-
Operating temperature-25 - 40 °C
-
Storage/transport temperature-55 - 70 °C
-
Degree of pollution according to IEC 60664 / IEC 60947-22
Endurance
-
Electric endurance in number of cycles2000
-
Number of mechanical operations4000
Connection
-
Cross-section of input with screws, for flexible conductors1 - 16 mm²
-
Cross-section of input with screws, for massive conductors1 - 25 mm²
-
Cross-section of input and output with screws, for flexible conductors1 - 16 mm²
-
Cross-section of input and output with screws, for massive conductors1 - 25 mm²
Capacity
-
Number of modules4
Dimensions
-
Height84 mm
-
Width71 mm
-
Depth70 mm
Compatibility
-
Suitable for DIN RailYes
Environmental value
We are committed to improve our environmental performance by reducing our carbon footprint. Learn More
Certifications and documents
Downloads
-
Product image
-

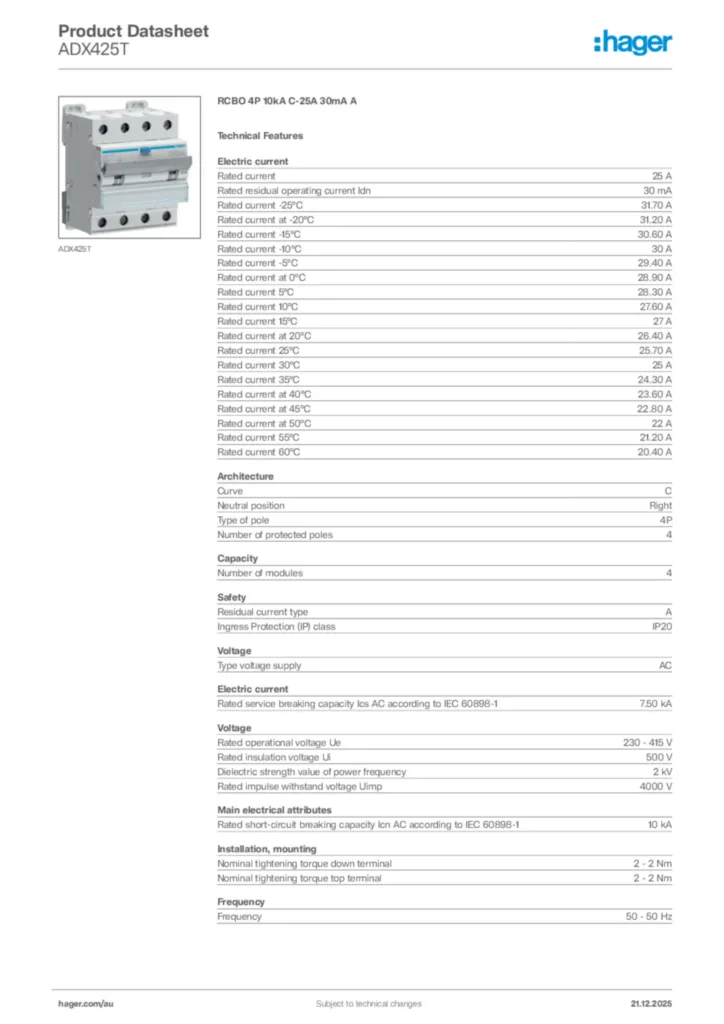

Product datasheet
