    • VF218PF
    EAN-Nr.
    3250616465442
    Packaging
    1 piece
    • Golf enclosures

    Small distributor,golf,flush,2row,36M,IP40,MS-terminal,PE,white door VF218PF

    Add to a list
    Add to a list

    Login to create a product list

    You need to be logged into your myHager account to create product lists

    Create an account Sign in

    Small distributor,golf,flush,2row,36M,IP40,MS-terminal,PE,white door

    VF218PF

    • Technical characteristics
    • Environmental value
    • Documentations
    • More products
    Download the sheet

    Technical characteristics

    Voltage
    • Nominal voltage
      400 - 400 V
    Installation, mounting
    • Suitable for outdoor usage
      No
    • Mounting on
      Flush mounting
    Electric current
    • Rated current
      63 A
    Equipment
    • Number of rails
      2
    • Number of rows
      2
    • Number of section in width
      1
    • With lock
      No
    • Has neutral terminal block
      No
    • Has earthing terminal block
      Yes
    • Has mounting plate
      No
    Capacity
    • Number of modules
      36
    Functions
    • With conduit inlets
      Yes
    Dimensions
    • Height
      418 mm
    • Width
      460 mm
    • Depth
      97.50 mm
    • Built-in height
      382 mm
    • Built-in width
      426 mm
    • Built-in depth
      72 mm
    • Number of width units
      18
    Cover, door
    • Number of cabinet doors
      1
    • Number of locks
      0
    • Door/cover is transparent
      No
    Materials
    • Material
      Plastic
    • RAL code
      9010
    • Colour
      Pure white
    • Ultraviolet-resistant
      No
    Safety
    • Protection class
      Isolation class II
    • Impact resistance IK
      IK07
    • Ingress Protection (IP) class
      IP40
    • Locking type
      Snap on lock, Without lock
    • Glow wire test
      650 °C

    Environmental value

    We are committed to bettering our environmental performance by reducing our footprint while acting as a sustainability enabler for our customers. Learn More

    RoHS conform Yes

    Certifications and documents

    Encl.,gamma,surface m.,26 M,version FR
    PDF
    1,48 MB
    Hager REACH declaration VF218PF
    PDF
    Hager RoHS report VF218PF
    PDF

    Downloads

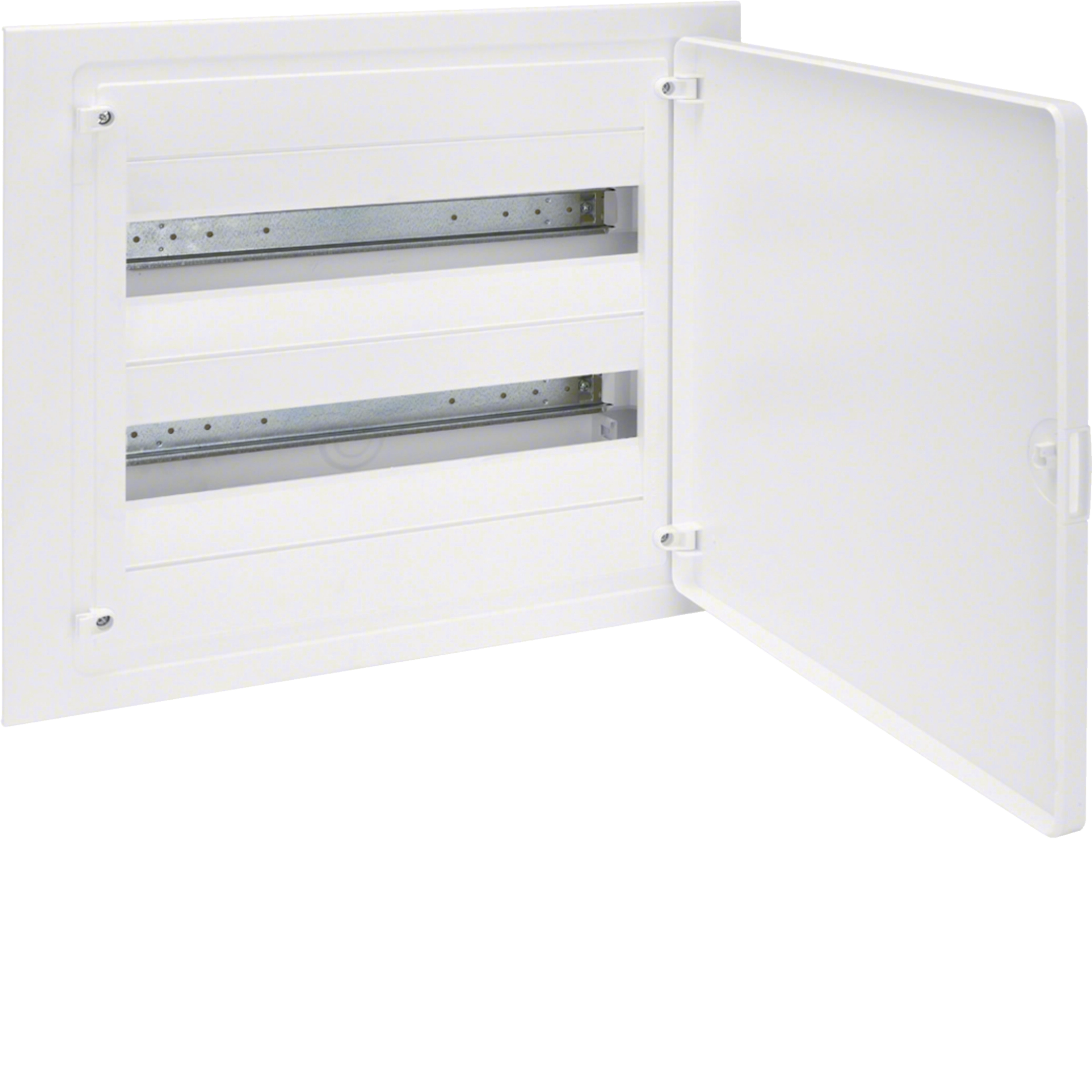

    • Image VF218PF | Hager

      Product Image VF218PF

    • Product datasheet

      Image Hager Product data sheet VF218PF | Hager

      Hager Product data sheet VF218PF

      Small distributor,golf,flush,2row,36M,IP40,MS-terminal,PE,white door

      PDF

    • Installation manual

      Image Installation manual International 2015-07-13 | Hager

      Installation manual International 2015-07-13

      PDF
      4,16 MB

    • Declaration of conformity

      Image Declaration of conformity en-GB 2025-06-25 | Hager

      Declaration of conformity en-GB 2025-06-25

      PDF
      487,74 kB
    More documentation
