EAN-Nr.

3250616465794

Packaging

1 piece

Golf enclosures

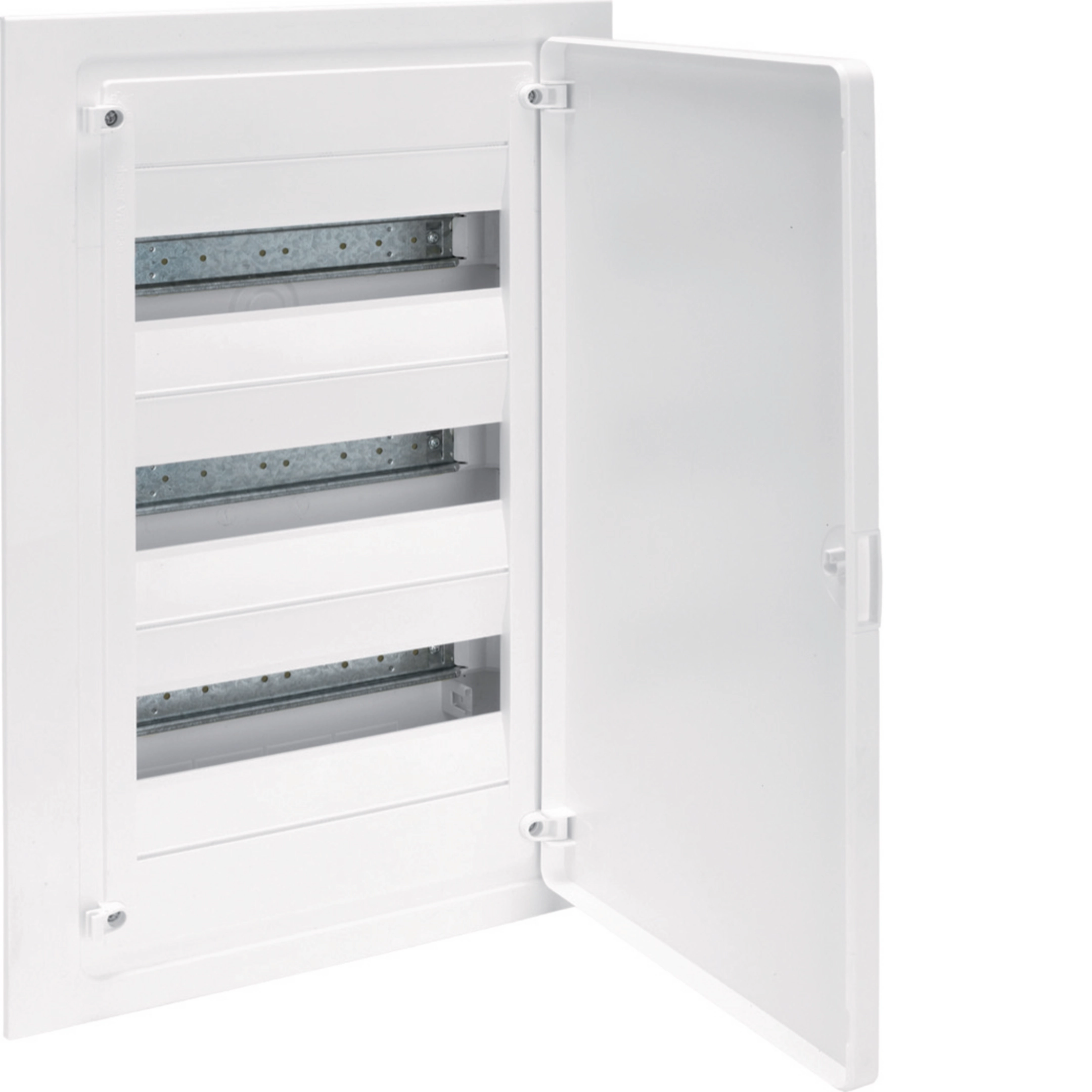

Small distributor,golf,flush,3row,36M,IP40,MS-terminal,N+PE,white door VF312PJ

Technical characteristics
Environmental value
Documentations
More products

Download the sheet

Technical characteristics

Nominal voltage

400 - 400 V

Suitable for outdoor usage

No
Mounting on

Flush mounting

Rated current

63 A

Number of rails

3
Number of rows

3
Number of section in width

1
With lock

No
Has neutral terminal block

Yes
Has earthing terminal block

Yes
Has mounting plate

No

Number of modules

36

With conduit inlets

Yes

Height

543 mm
Width

352 mm
Depth

97.50 mm
Built-in height

507 mm
Built-in width

318 mm
Built-in depth

72 mm
Number of width units

12

Number of cabinet doors

1
Number of locks

0
Door/cover is transparent

No

Material

Plastic
RAL code

9010
Colour

Pure white
Ultraviolet-resistant

No

Protection class

Isolation class II
Impact resistance IK

IK07
Ingress Protection (IP) class

IP40
Locking type

Snap on lock, Without lock
Glow wire test

650 °C

Environmental value

We are committed to bettering our environmental performance by reducing our footprint while acting as a sustainability enabler for our customers. Learn More

RoHS conform Yes

Certifications and documents

Encl.,gamma,surface m.,26 M,version FR

PDF

1,48 MB

Hager REACH declaration VF312PJ

PDF

Hager RoHS report VF312PJ

PDF

Downloads

Product Image VF312PJ

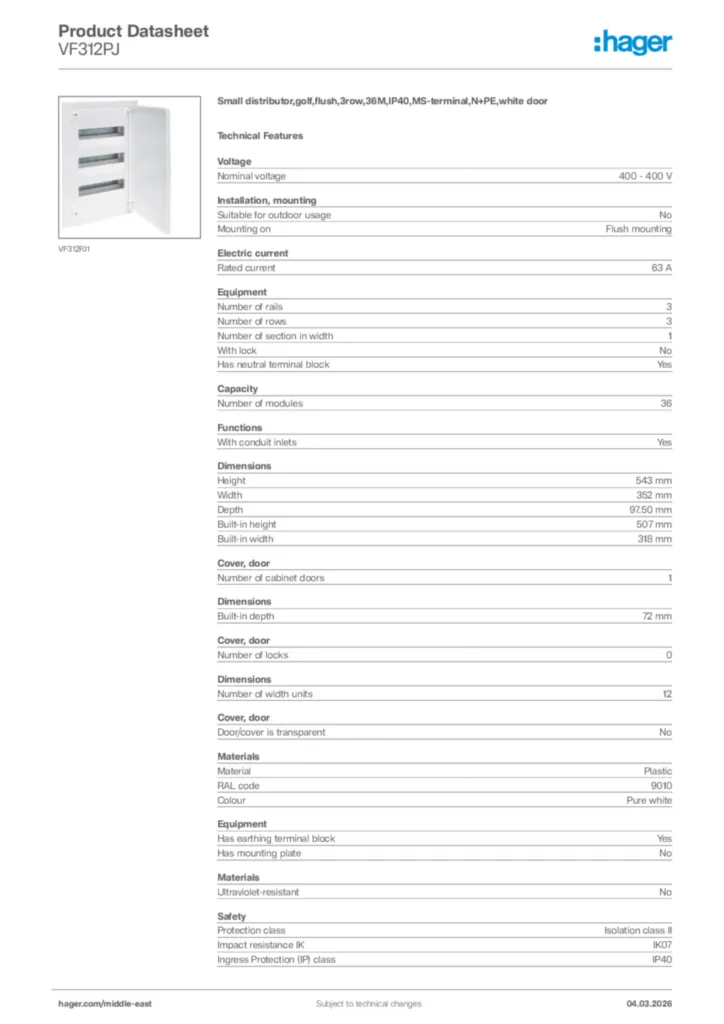

Product datasheet

Hager Product data sheet VF312PJ

Small distributor,golf,flush,3row,36M,IP40,MS-terminal,N+PE,white door

PDF
Installation manual

Installation manual International 2015-07-13

PDF

4,16 MB
Declaration of conformity

Declaration of conformity en-GB 2025-06-25

PDF

487,74 kB

Small distributor,golf,flush,3row,36M,IP40,MS-terminal,N+PE,white door VF312PJ

Technical characteristics

Environmental value

Certifications and documents

Downloads

Product datasheet

Installation manual

Declaration of conformity
