    • VS112TJ
    EAN-Nr.
    3250616595231
    Packaging
    1 piece
    • Golf enclosures

    Small distributor,golf,surface,1row,IP40,12M,MS-terminal,N+PE,transparent door VS112TJ

    Add to a list
    Add to a list

    Login to create a product list

    You need to be logged into your myHager account to create product lists

    Create an account Sign in

    Small distributor,golf,surface,1row,IP40,12M,MS-terminal,N+PE,transparent door

    VS112TJ

    • Technical characteristics
    • Environmental value
    • Documentations
    • More products
    Download the sheet

    Technical characteristics

    Voltage
    • Nominal voltage
      400 - 400 V
    Installation, mounting
    • Suitable for outdoor usage
      No
    • Mounting on
      Surface mounting
    Electric current
    • Rated current
      63 A
    Equipment
    • Number of rails
      1
    • Number of rows
      1
    • Number of section in width
      1
    • With lock
      No
    • Has neutral terminal block
      Yes
    • Has earthing terminal block
      Yes
    • Has mounting plate
      No
    Capacity
    • Number of modules
      12
    Functions
    • With conduit inlets
      Yes
    Dimensions
    • Height
      252 mm
    • Width
      282 mm
    • Depth
      99 mm
    • Number of width units
      12
    Cover, door
    • Number of cabinet doors
      1
    • Number of locks
      0
    • Door/cover is transparent
      Yes
    Materials
    • Material
      Plastic
    • RAL code
      9010
    • Colour
      Pure white
    • Ultraviolet-resistant
      No
    Safety
    • Protection class
      Isolation class II
    • Impact resistance IK
      IK07
    • Ingress Protection (IP) class
      IP40
    • Locking type
      Snap on lock, Without lock
    • Glow wire test
      650 °C

    Environmental value

    We are committed to bettering our environmental performance by reducing our footprint while acting as a sustainability enabler for our customers. Learn More

    RoHS conform Yes

    Certifications and documents

    Encl.,gamma,surface m.,26 M,version FR
    PDF
    1,48 MB
    Hager REACH declaration VS112TJ
    PDF
    Hager RoHS report VS112TJ
    PDF

    Downloads

    • Image VS112TJ | Hager

      Product Image VS112TJ

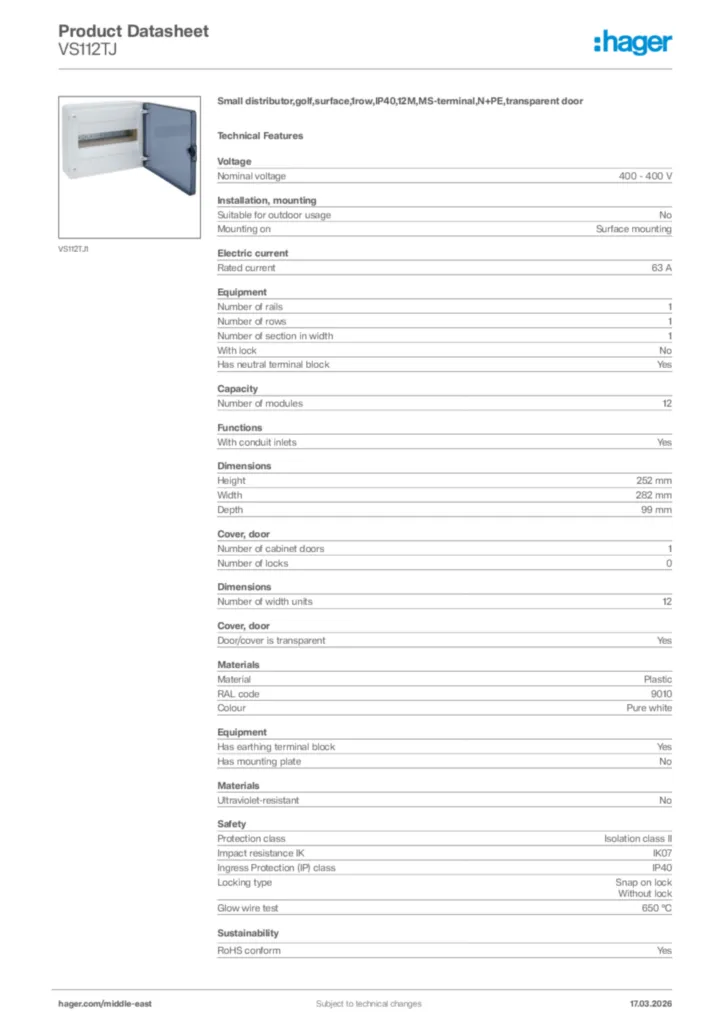

    • Product datasheet

      Image Hager Product data sheet VS112TJ | Hager

      Hager Product data sheet VS112TJ

      Small distributor,golf,surface,1row,IP40,12M,MS-terminal,N+PE,transparent door

      PDF

    • Installation manual

      Image Installation manual International 2020-01-01 | Hager

      Installation manual International 2020-01-01

      PDF
      3,12 MB

    • Declaration of conformity

      Image Declaration of conformity en-GB 2025-06-25 | Hager

      Declaration of conformity en-GB 2025-06-25

      PDF
      487,74 kB
