Output module 10x 16A (C)/230V~, KNX TXA610D
EAN-Nr.
3250616048805
Packaging
1 piece
Login to create a product list
You need to be logged into your myHager account to create product lists
Technical characteristics
Connectivity
-
With bus system KNXYes
-
With bus system KNX radioNo
Settings
-
Supported configuration modeETS, easy
Dimensions
-
Height90 mm
-
Number of width units6
Materials
-
ColourGrey
Equipment
-
Radio frequency bidirectionalNo
-
With switch for manual switchYes
Electric current
-
Rated current16 A
-
Bus current consumption while idle4 mA
Frequency
-
Frequency50 - 60 Hz
Power
-
Output power2,300 W
-
230 V incandescent and halogen lamp2,300 W
Voltage
-
Rated operational voltage Ue230 - 230 V
-
System supply voltage30 V DC Via bus
-
Operating voltage over bus21 - 32 V
Safety
-
Ingress Protection (IP) classIP20
Use conditions
-
Operating temperature-5 - 45 °C
Connection
-
Cross-section rigid conductor0.75 - 2.5 mm²
-
Cross-section flexible conductor0.75 - 2.5 mm²
Texts
-
FunctionWith safety functions e.g. for wind, rain, alarm, With positioning function for blind and lamella position, With sun shade function
-
Type of connectionWith quickconnect plug-in terminals
Environmental value
We are committed to bettering our environmental performance by reducing our footprint while acting as a sustainability enabler for our customers. Learn More
Certifications and documents
Downloads
-
Product datasheet

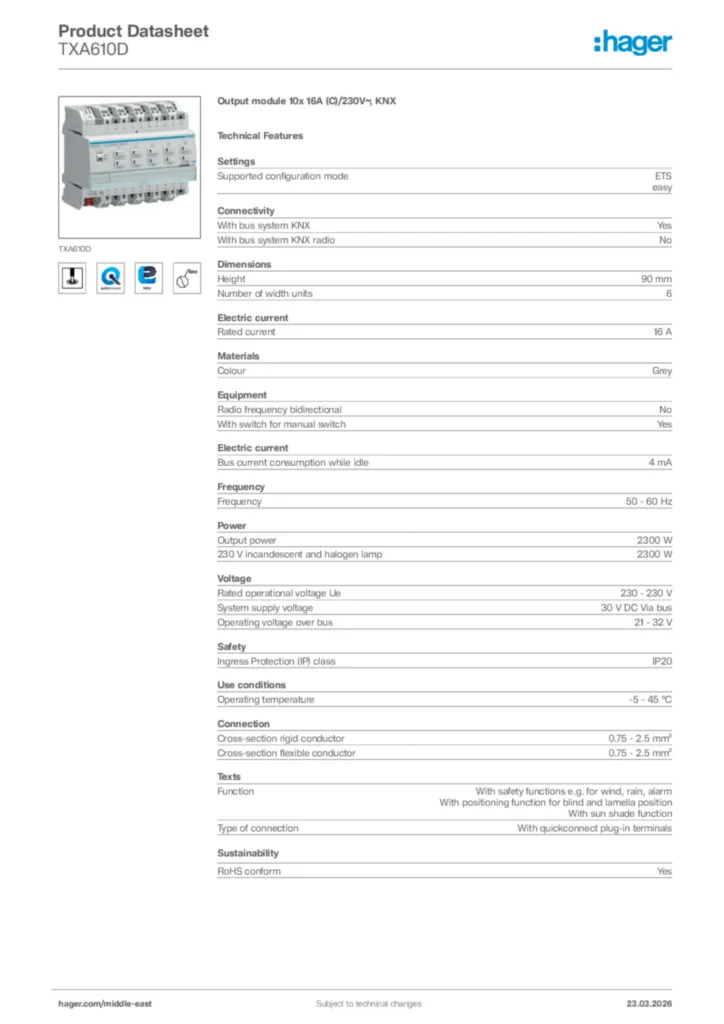

Hager Product data sheet TXA610D
Output module 10x 16A (C)/230V~, KNX
PDF -
Installation manual
Installation manual en-GB, pl-PL 2014-03-04
PDF1,33 MB -
KNX product database
ETS Database for TXA610B
KNX product database en-GB, es-ES, fr-FR, de-DE, it-IT, nl-NL, nn-NO, pl-PL, pt-PT, sv-SE 2020-01-01
KNXPROD798,19 kB -
Application Guide
Application description TXM616D
Application Guide en-GB, pl-PL 2013-11-27
PDF9,16 MB
