    Output module 20-fold 16a c-load adapted TYMS620D

    Add to a list
    Add to a list

    Login to create a product list

    You need to be logged into your myHager account to create product lists

    Create an account Sign in

    Output module 20-fold 16a c-load adapted

    TYMS620D

    • Technical characteristics
    • Environmental value
    • Documentations
    • More products
    Download the sheet

    Technical characteristics

    Connectivity
    • With bus system KNX
      Yes
    • With bus system KNX radio
      No
    Settings
    • Supported configuration mode
      ETS, easy
    Dimensions
    • Height
      90 mm
    • Depth
      65 mm
    • Built-in depth
      65 mm
    • Number of width units
      10
    Materials
    • Colour
      Light grey
    Equipment
    • Radio frequency bidirectional
      No
    • With switch for manual switch
      Yes
    Electric current
    • Rated current
      16 A
    • Bus current consumption while idle
      3 mA
    Frequency
    • Frequency
      50 - 60 Hz
    Power
    • Power incandescent lamp 230 V
      2,300 - 2,300 W
    • Output power
      2,300 W
    • 230 V incandescent and halogen lamp
      2,300 W
    Voltage
    • Rated operational voltage Ue
      230 - 230 V
    • System supply voltage
      30 V DC Via bus
    • Operating voltage over bus
      21 - 32 V
    Safety
    • Ingress Protection (IP) class
      IP20
    Use conditions
    • Operating temperature
      -5 - 45 °C
    Connection
    • Cross-section rigid conductor
      0.5 - 6 mm²
    • Cross-section flexible conductor
      0.5 - 4 mm²
    Texts
    • Function
      With safety functions e.g. for wind, rain, alarm, With positioning function for blind and lamella position, With sun shade function

    Environmental value

    We are committed to bettering our environmental performance by reducing our footprint while acting as a sustainability enabler for our customers. Learn More

    RoHS conform Yes

    Certifications and documents

    Heating actuator 6 channels KNX, with regulation, 24/230V
    PDF
    266,23 kB
    REACH declaration TYMS620D
    PDF
    RoHS report TYMS620D
    PDF

    Downloads

    • Image TYMS620D | Hager

      Product Image TYMS620D

    • Product datasheet

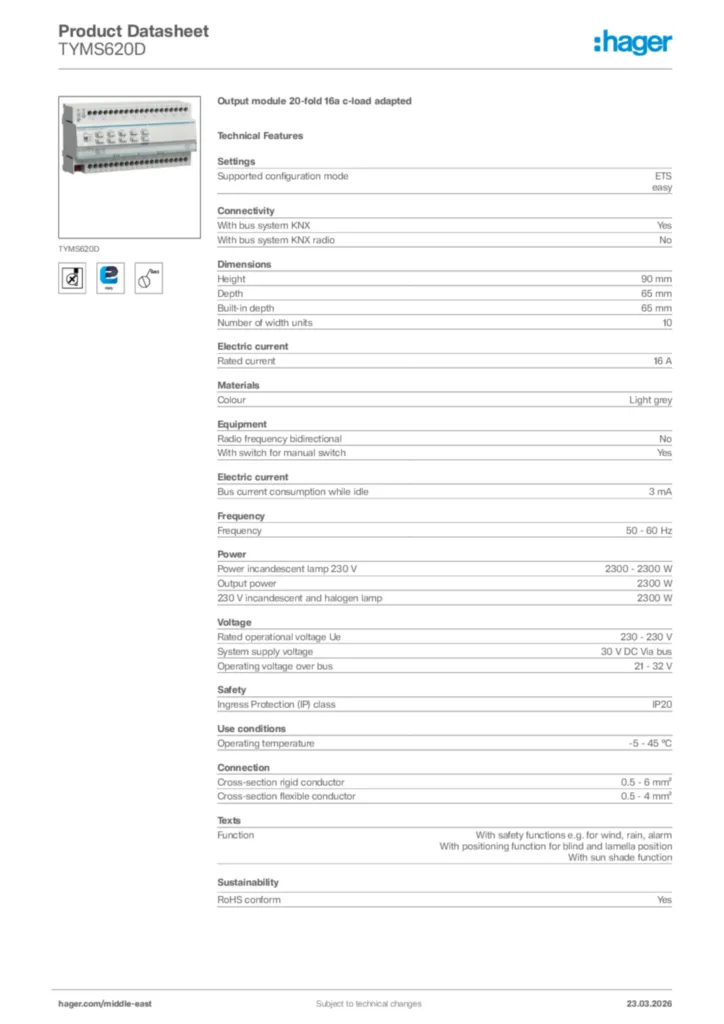

      Image Hager Product data sheet TYMS620D | Hager

      Hager Product data sheet TYMS620D

      Output module 20-fold 16a c-load adapted

      PDF

    • Instruction manual

      Image Instruction manual zh-CN, en-GB, es-ES, fr-FR, de-DE, it-IT, nl-NL, pt-PT 2023-03-03 | Hager

      Instruction manual zh-CN, en-GB, es-ES, fr-FR, de-DE, it-IT, nl-NL, pt-PT 2023-03-03

      PDF
      3,76 MB

    • Manual

      Image Manual en-AU, en-NZ, en-GB, en-US 2025-02-21 | Hager

      Manual en-AU, en-NZ, en-GB, en-US 2025-02-21

      PDF
      1,54 MB

    • KNX product database

      Image ETS Database for TYMS620D | Hager

      ETS Database for TYMS620D

      KNX product database en-GB, es-ES, fr-FR, de-DE, it-IT, nl-NL, nn-NO, pt-PT, sv-SE 2023-04-05

      KNXPROD
      1,15 MB

    • Application Guide

      Image Application Guide en-GB 2023-03-21 | Hager

      Application Guide en-GB 2023-03-21

      PDF
      3,92 MB
      Image Application Guide en-GB 2023-03-21 | Hager

      Application Guide en-GB 2023-03-21

      PDF
      11,10 MB
      Image Application Guide en-GB 2024-06-27 | Hager

      Application Guide en-GB 2024-06-27

      PDF
      1,86 MB

    • Declaration of conformity

      Image Declaration of conformity International 2023-02-06 | Hager

      Declaration of conformity International 2023-02-06

      PDF
      380,42 kB
      Image Declaration of conformity International 2023-02-06 | Hager

      Declaration of conformity International 2023-02-06

      PDF
      279,66 kB
