MCB 1P+N 6kA C-40A 1M MLN740A
Phase out product: please contact your electrical wholesaler for availability
Follow-up products :
Login to create a product list
You need to be logged into your myHager account to create product lists
Complete your system
Optional accessories
-
Locking interlocking functions 1 products available -
Mechanic accessories for low-voltage components 1 products available -
Under voltage coil 1 products available -
Shunt release 2 products available -
Undervoltage and overvoltage release 1 products available -
Auxiliaries contact block 2 products available
Complete your system
Technical characteristics
Electric current
-
Rated current40 A
-
Rated short-circuit breaking capacity Icn under 230 V AC according to IEC 60898-16 kA
Architecture
-
Type of pole1P+N
-
CurveC
Capacity
-
Number of modules1
Main electrical attributes
-
Rated short-circuit breaking capacity Icn AC according to IEC 60898-16 kA
Installation, mounting
-
Nominal tightening torque top terminal1.90 - 1.90 Nm
-
Nominal tightening torque down terminal1.90 - 1.90 Nm
-
Nominal tightening torque1.90 - 1.90 Nm
-
Type of bottom connection for modular devicesScrew terminal
-
Type of top connection for modular devicesScrew terminal
-
360° mounting position possibleYes
Voltage
-
Rated operational voltage Ue230 - 240 V
-
Type voltage supplyAC
-
Rated insulation voltage Ui500 V
-
Rated impulse withstand voltage Uimp4,000 V
Frequency
-
Frequency50 - 60 Hz
Connection
-
Cross-section of input and output with screws, for massive conductors1 - 25 mm²
-
Cross-section of input and output with screws, for flexible conductors1 - 16 mm²
-
Cross-section of input with screws, for flexible conductors1 - 16 mm²
-
Cross-section of input with screws, for massive conductors1 - 25 mm²
Safety
-
Ingress Protection (IP) classIP20
Use conditions
-
Degree of pollution according to IEC 60664 / IEC 60947-22
-
Class of energy limitation I²t3
-
Air humidity protectionFor all climates
-
Operating temperature-25 - 70 °C
Power
-
Total power loss under IN7.10 W
Connectivity
-
Top connection alignment for modular devicesShifted terminal
-
Down connection alignment for modular devicesShifted terminal
-
Type of connectionScrew terminal
Dimensions
-
Height84.70 mm
-
Width17.50 mm
-
Depth70 mm
Environmental value
We are committed to bettering our environmental performance by reducing our footprint while acting as a sustainability enabler for our customers. Learn More
Certifications and documents
Downloads
-
Product datasheet

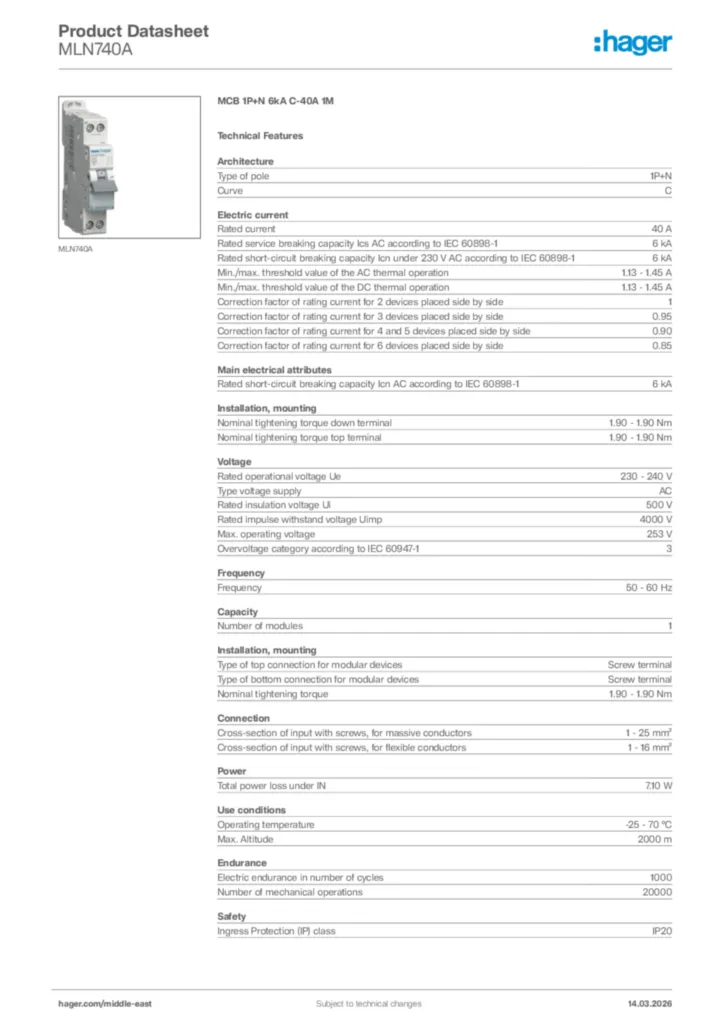

Hager Product data sheet MLN740A
