EAN-Nr.

3250614318825

Packaging

12 Pieces

MCB 1P+N 6kA C-32A 1M MLN732

No longer available

Accessories
Technical characteristics
Environmental value
Documentations

Download the sheet

Complete your system

Locking interlocking functions 1 products available
Mechanic accessories for low-voltage components 1 products available
Under voltage coil 1 products available
Shunt release 2 products available
Undervoltage and overvoltage release 1 products available
Auxiliaries contact block 2 products available

Technical characteristics

Rated current

32 A
Rated short-circuit breaking capacity Icn under 230 V AC according to IEC 60898-1

6 kA
Rated current -15°C

39 A
Rated current -10°C

38.30 A
Rated current -5°C

37.60 A
Rated current at 0°C

36.80 A
Rated current 5°C

36.10 A
Rated current 10°C

35.30 A
Rated current 15°C

34.50 A
Rated current at 20°C

33.70 A
Rated current 25°C

32.90 A
Rated current 30°C

32 A
Rated current 35°C

31.10 A
Rated current at 40°C

30.20 A
Rated current at 45°C

29.30 A
Rated current at 50°C

28.30 A
Rated current 55°C

27.30 A
Rated current 60°C

26.30 A
Rated current 65°C

25.20 A
Rated current 70°C

24.10 A

Type of pole

1P+N
Curve

C

Number of modules

1

Rated short-circuit breaking capacity Icn AC according to IEC 60898-1

6 kA

Nominal tightening torque top terminal

1.90 - 1.90 Nm
Nominal tightening torque down terminal

1.90 - 1.90 Nm
Nominal tightening torque

1.90 - 1.90 Nm
Type of bottom connection for modular devices

Screw terminal
Type of top connection for modular devices

Screw terminal
360° mounting position possible

Yes

Rated operational voltage Ue

230 - 240 V
Type voltage supply

AC
Rated insulation voltage Ui

500 V
Rated impulse withstand voltage Uimp

4,000 V

Frequency

50 - 60 Hz

Cross-section of input and output with screws, for massive conductors

1 - 25 mm²
Cross-section of input and output with screws, for flexible conductors

1 - 16 mm²
Cross-section of input with screws, for flexible conductors

1 - 16 mm²
Cross-section of input with screws, for massive conductors

1 - 25 mm²

Ingress Protection (IP) class

IP20

Degree of pollution according to IEC 60664 / IEC 60947-2

2
Class of energy limitation I²t

3
Air humidity protection

For all climates
Operating temperature

-25 - 70 °C

Total power loss under IN

6.10 W

Top connection alignment for modular devices

Shifted terminal
Down connection alignment for modular devices

Shifted terminal
Type of connection

Screw terminal

Height

84.70 mm
Width

17.50 mm
Depth

70 mm

Environmental value

We are committed to bettering our environmental performance by reducing our footprint while acting as a sustainability enabler for our customers. Learn More

RoHS conform Yes

Certifications and documents

PEP - MCB 1P 6kA B-16A, 1 module (English)

PDF

67,85 MB

REACH declaration MLN732

PDF

RoHS report MLN732

PDF

Downloads

Product Image MLN732

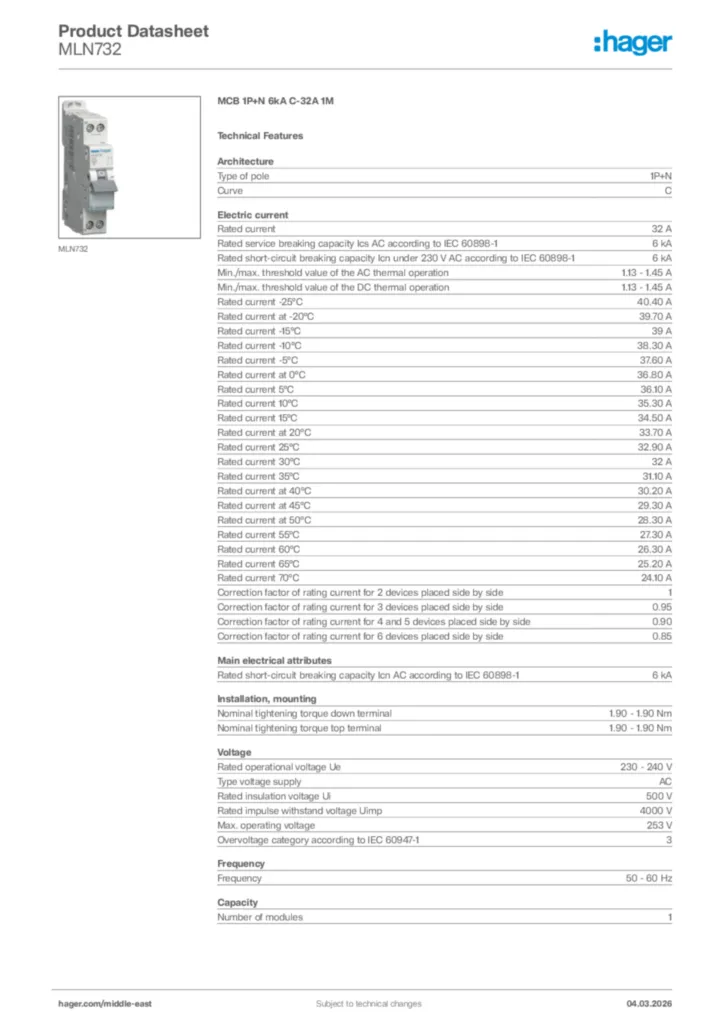

Product datasheet
