Modular protection devices

MCB 4P 6kA C-63A 4M MC463A

Name: MC463A
Brand: Hager
SKU: MC463A1

EAN-Nr.

3250614337796

Packaging

3 Pieces

Accessories
Technical characteristics
Environmental value
Documentations
More products

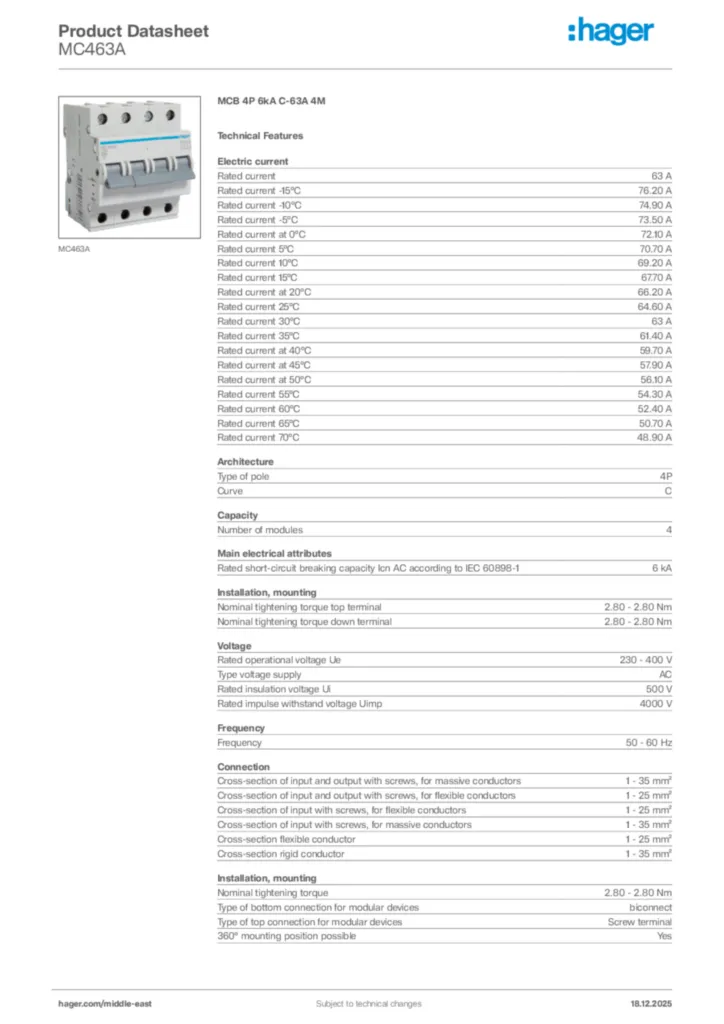

Download the sheet

Complete your system

Locking interlocking functions 1 products available
Mechanic accessories for low-voltage components 1 products available
Under voltage coil 1 products available
Shunt release 2 products available
Auxiliaries contact block 2 products available
AOB type AC 2 products available

Technical characteristics

Rated current

63 A
Rated current -15°C

76.20 A
Rated current -10°C

74.90 A
Rated current -5°C

73.50 A
Rated current at 0°C

72.10 A
Rated current 5°C

70.70 A
Rated current 10°C

69.20 A
Rated current 15°C

67.70 A
Rated current at 20°C

66.20 A
Rated current 25°C

64.60 A
Rated current 30°C

63 A
Rated current 35°C

61.40 A
Rated current at 40°C

59.70 A
Rated current at 45°C

57.90 A
Rated current at 50°C

56.10 A
Rated current 55°C

54.30 A
Rated current 60°C

52.40 A
Rated current 65°C

50.70 A
Rated current 70°C

48.90 A

Type of pole

4P
Curve

C

Number of modules

4

Nominal tightening torque top terminal

2.80 - 2.80 Nm
Nominal tightening torque down terminal

2.80 - 2.80 Nm
Nominal tightening torque

2.80 - 2.80 Nm
Type of bottom connection for modular devices

biconnect
Type of top connection for modular devices

Screw terminal
360° mounting position possible

Yes

Rated short-circuit breaking capacity Icn AC according to IEC 60898-1

6 kA

Rated operational voltage Ue

230 - 400 V
Type voltage supply

AC
Rated insulation voltage Ui

500 V
Rated impulse withstand voltage Uimp

4,000 V

Frequency

50 - 60 Hz

Cross-section of input and output with screws, for massive conductors

1 - 35 mm²
Cross-section of input and output with screws, for flexible conductors

1 - 25 mm²
Cross-section of input with screws, for flexible conductors

1 - 25 mm²
Cross-section of input with screws, for massive conductors

1 - 35 mm²
Cross-section flexible conductor

1 - 25 mm²
Cross-section rigid conductor

1 - 35 mm²

Ingress Protection (IP) class

IP20

Degree of pollution according to IEC 60664 / IEC 60947-2

2
Class of energy limitation I²t

3
Air humidity protection

For all climates
Operating temperature

-25 - 70 °C

Total power loss under IN

24.63 W

Type of connection

Screw terminal
Top connection alignment for modular devices

Aligned terminal
Down connection alignment for modular devices

Aligned terminal

Height

83 mm
Width

70 mm
Depth

70 mm
