Fuse carrier 3P+N 32A 690V L38 4M LSN504

Accessories
Technical characteristics
Environmental value
Documentations
More products

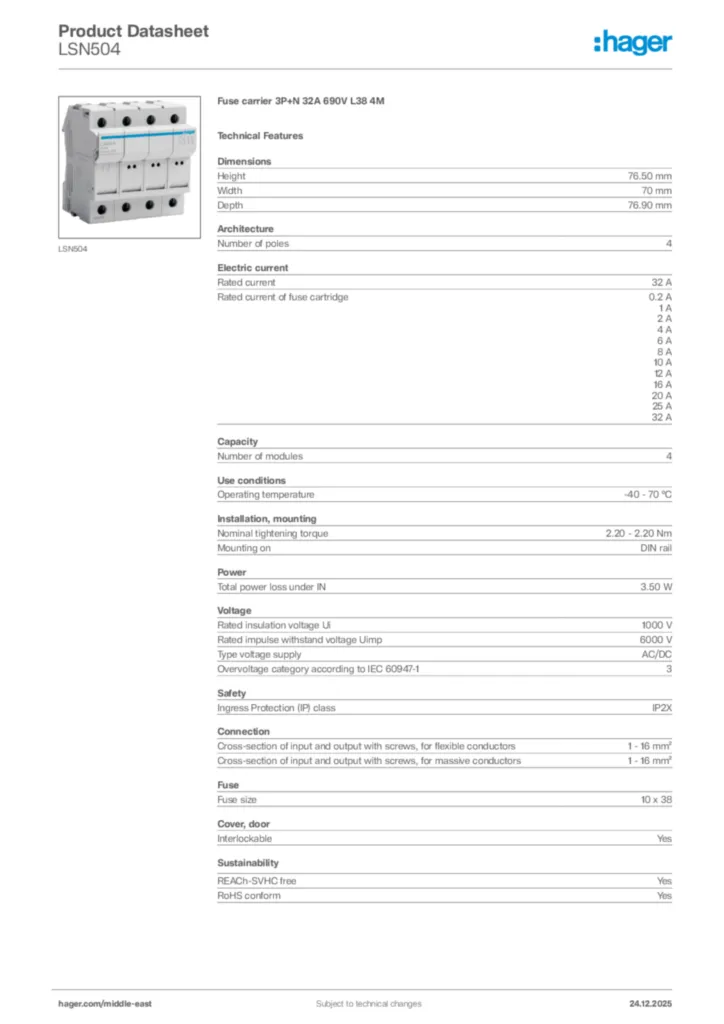

Download the sheet

Complete your system

Modular phase busbar 1 products available

Technical characteristics

Height

76.50 mm
Width

70 mm
Depth

76.90 mm

Number of poles

4

Rated current

32 A
Rated current of fuse cartridge

0.2 A, 1 A, 2 A, 4 A, 6 A, 8 A, 10 A, 12 A, 16 A, 20 A, 25 A, 32 A

Number of modules

4

Number of half modules of 17,5 mm

8

Operating temperature

-40 - 70 °C

Nominal tightening torque

2.20 - 2.20 Nm
Mounting on

DIN rail

Total power loss under IN

3.50 W

Rated insulation voltage Ui

1,000 V
Rated impulse withstand voltage Uimp

6,000 V
Type voltage supply

AC/DC
Overvoltage category according to IEC 60947-1

3

Ingress Protection (IP) class

IP2X

Cross-section of input and output with screws, for flexible conductors

1 - 16 mm²
Cross-section of input and output with screws, for massive conductors

1 - 16 mm²

Fuse size

10 x 38

Interlockable

Yes

Environmental value

We are committed to bettering our environmental performance by reducing our footprint while acting as a sustainability enabler for our customers. Learn More

RoHS conform Yes

REACh-SVHC free Yes
