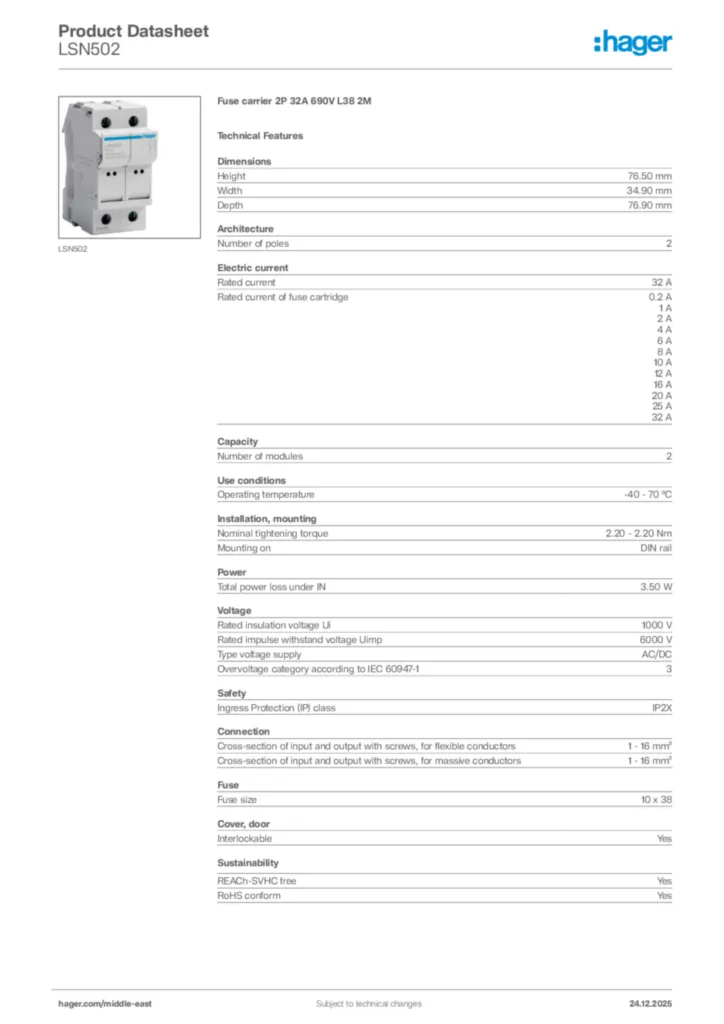

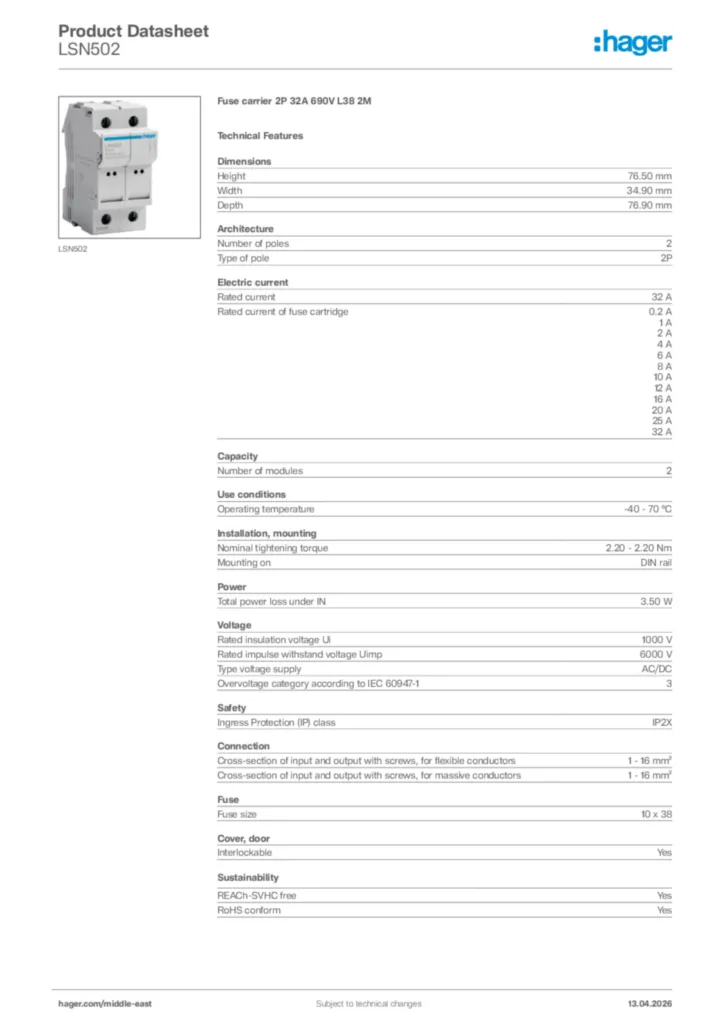

Fuse carrier 2P 32A 690V L38 2M LSN502
EAN-Nr.
3250614120084
Packaging
6 Pieces
Login to create a product list
You need to be logged into your myHager account to create product lists
Complete your system
Optional accessories
-
Modular phase busbar 1 products available
Technical characteristics
Dimensions
-
Height76.50 mm
-
Width34.90 mm
-
Depth76.90 mm
Architecture
-
Number of poles2
Electric current
-
Rated current32 A
-
Rated current of fuse cartridge0.2 A, 1 A, 2 A, 4 A, 6 A, 8 A, 10 A, 12 A, 16 A, 20 A, 25 A, 32 A
Capacity
-
Number of modules2
Internal use only
-
Number of half modules of 17,5 mm4
Use conditions
-
Operating temperature-40 - 70 °C
Installation, mounting
-
Nominal tightening torque2.20 - 2.20 Nm
-
Mounting onDIN rail
Power
-
Total power loss under IN3.50 W
Voltage
-
Rated insulation voltage Ui1,000 V
-
Rated impulse withstand voltage Uimp6,000 V
-
Type voltage supplyAC/DC
-
Overvoltage category according to IEC 60947-13
Safety
-
Ingress Protection (IP) classIP2X
Connection
-
Cross-section of input and output with screws, for flexible conductors1 - 16 mm²
-
Cross-section of input and output with screws, for massive conductors1 - 16 mm²
Fuse
-
Fuse size10 x 38
Cover, door
-
InterlockableYes
