Fuse carrier 1P+N 125A 690V L58 4M LR712

Accessories
Technical characteristics
Environmental value
Documentations
More products

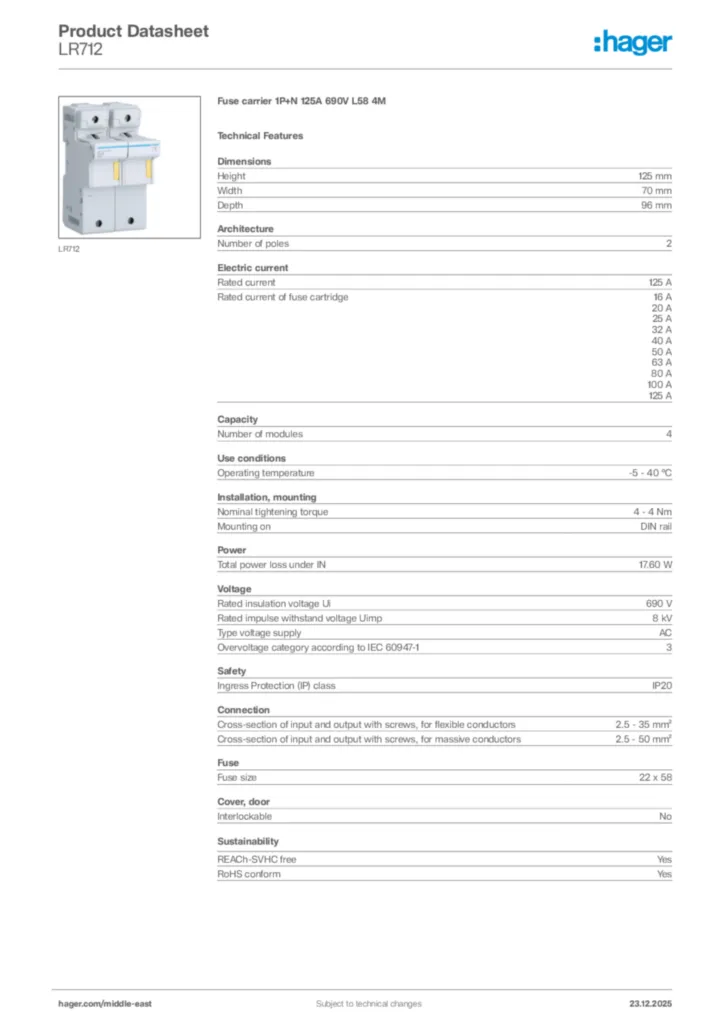

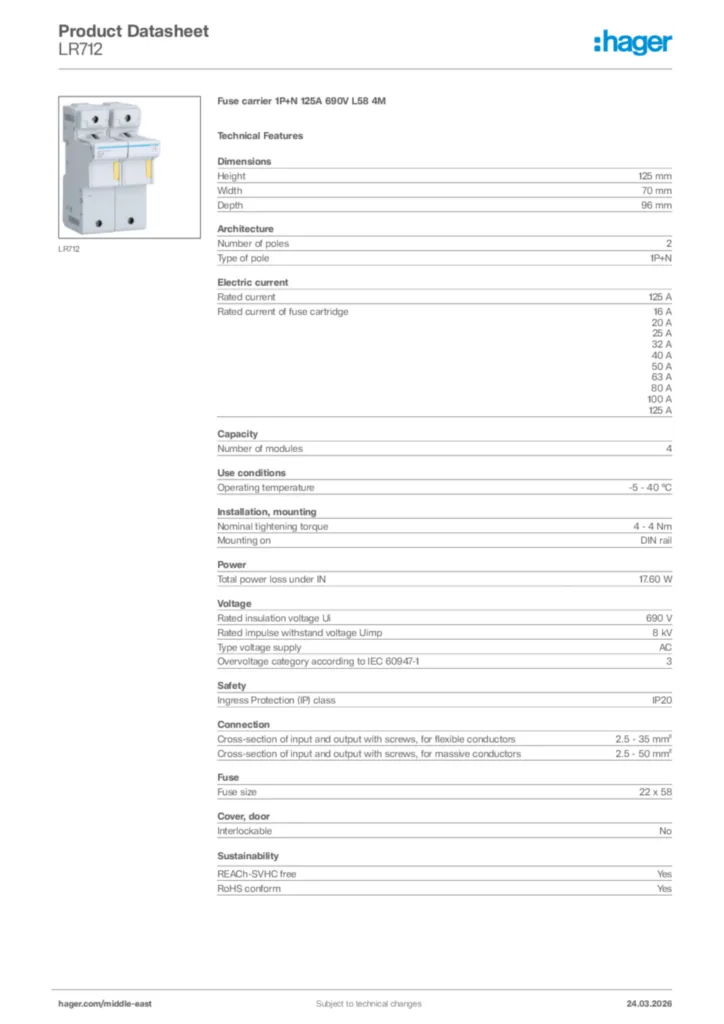

Download the sheet

Complete your system

Accessories/spare parts for low-voltage switch technology 2 products available

Technical characteristics

Height

125 mm
Width

70 mm
Depth

96 mm

Number of poles

2

Rated current

125 A
Rated current of fuse cartridge

16 A, 20 A, 25 A, 32 A, 40 A, 50 A, 63 A, 80 A, 100 A, 125 A

Number of modules

4

Number of half modules of 17,5 mm

8

Operating temperature

-5 - 40 °C

Nominal tightening torque

4 - 4 Nm
Mounting on

DIN rail

Total power loss under IN

17.60 W

Rated insulation voltage Ui

690 V
Rated impulse withstand voltage Uimp

8 kV
Type voltage supply

AC
Overvoltage category according to IEC 60947-1

3

Ingress Protection (IP) class

IP20

Cross-section of input and output with screws, for flexible conductors

2.5 - 35 mm²
Cross-section of input and output with screws, for massive conductors

2.5 - 50 mm²

Fuse size

22 x 58

Interlockable

No

Environmental value

We are committed to bettering our environmental performance by reducing our footprint while acting as a sustainability enabler for our customers. Learn More

RoHS conform Yes

REACh-SVHC free Yes
