Fuse carrier 3P+N 50A 690V L51 6M LR604
EAN-Nr.
3250614186042
Packaging
2 Pieces
Login to create a product list
You need to be logged into your myHager account to create product lists
Technical characteristics
Dimensions
-
Height107 mm
-
Width105 mm
-
Depth93 mm
Architecture
-
Number of poles4
Electric current
-
Rated current50 A
-
Rated current of fuse cartridge16 A, 20 A, 25 A, 32 A, 40 A, 50 A, 63 A, 80 A, 100 A, 125 A
Capacity
-
Number of modules6
Internal use only
-
Number of half modules of 17,5 mm12
Use conditions
-
Operating temperature-5 - 40 °C
Installation, mounting
-
Nominal tightening torque3.5 - 3.5 Nm
-
Mounting onDIN rail
Power
-
Total power loss under IN20.60 W
Voltage
-
Rated insulation voltage Ui690 V
-
Rated impulse withstand voltage Uimp8 kV
-
Type voltage supplyAC
-
Overvoltage category according to IEC 60947-13
Safety
-
Ingress Protection (IP) classIP20
Connection
-
Cross-section of input and output with screws, for flexible conductors2.5 - 25 mm²
-
Cross-section of input and output with screws, for massive conductors2.5 - 35 mm²
Fuse
-
Fuse size14 x 51
Cover, door
-
InterlockableNo
Environmental value
We are committed to bettering our environmental performance by reducing our footprint while acting as a sustainability enabler for our customers. Learn More
Certifications and documents
Downloads
-
Product datasheet

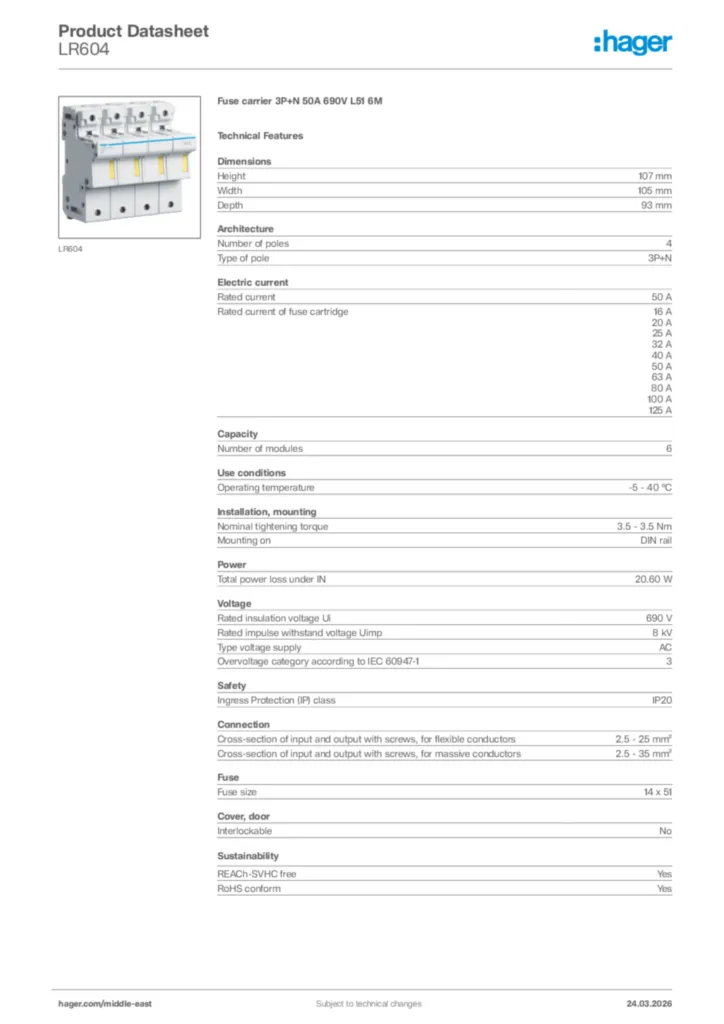

Hager Product data sheet LR604
