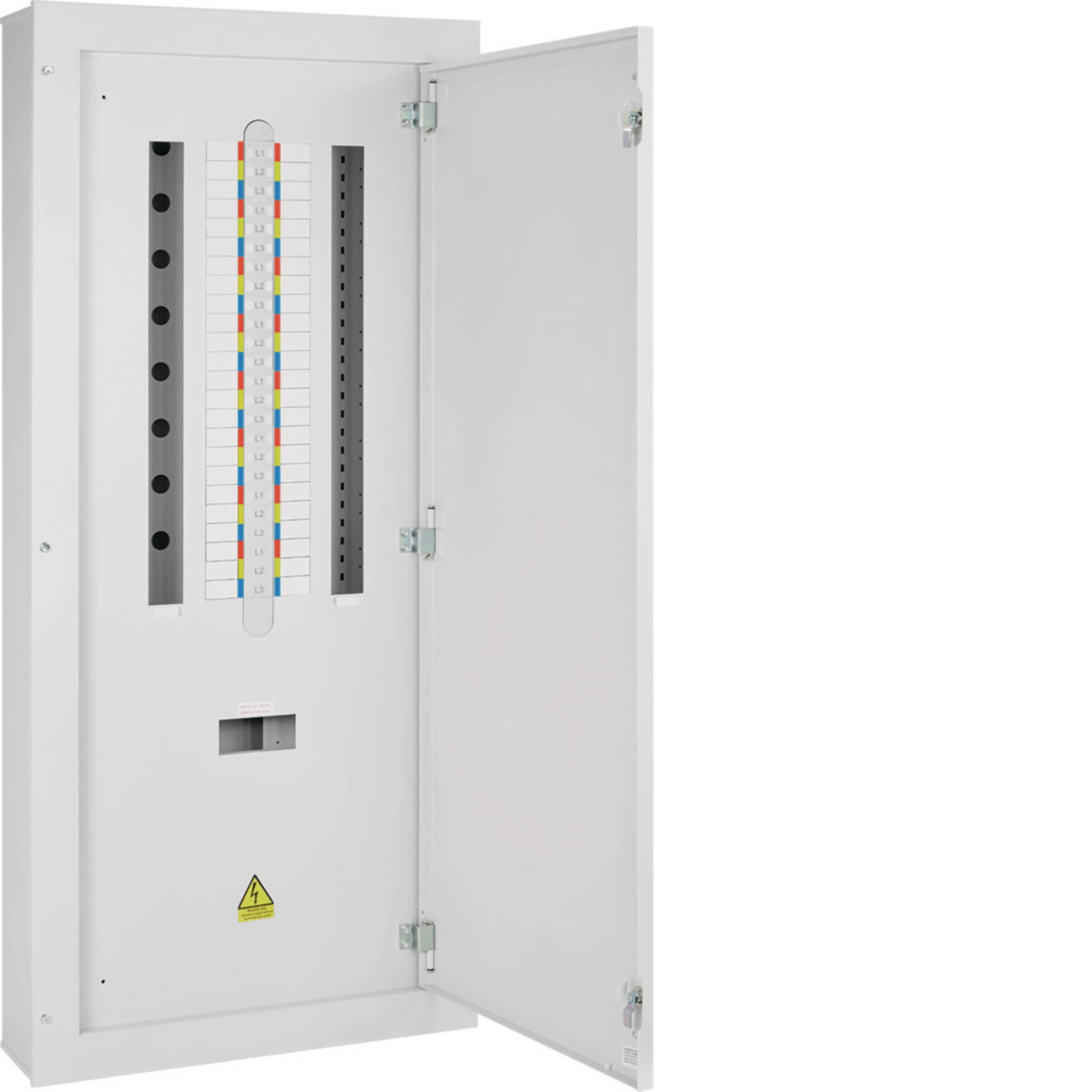

250A Panel BOARD 16WAY Surface JN2B00016S2

EAN-Nr.
3250611113478
Packaging
1 piece

You have to log in with your myHager profile to see prices and to order.

Add to a list
Add to a list

Login to create a product list

You need to be logged into your myHager account to create product lists

Create an account Sign in

250A Panel BOARD 16WAY Surface

JN2B00016S2

  • Accessories
  • Technical characteristics
  • Environmental value
  • Documentations
  • More products
Download the sheet

Complete your system

Optional accessories

  • Busbar 2 products available

Complete your system

  • Busbar
  • JN2L2503MH

    0.00 €  / *

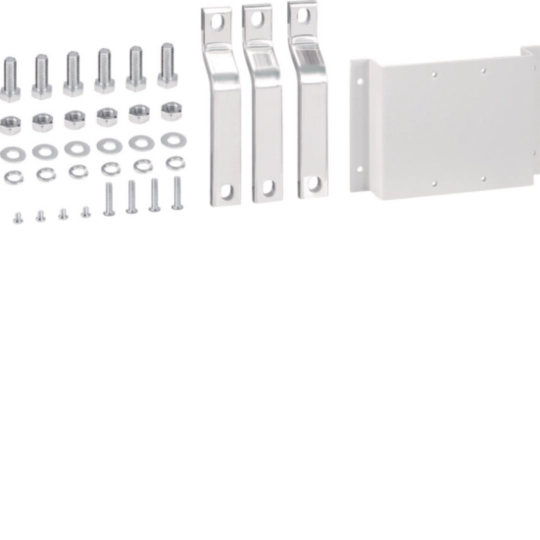

  • JN2L2503SK

    0.00 €  / *

Technical characteristics

Installation, mounting
  • Mounting on
    Surface mounting
Electric current
  • Rated current
    250 A
Equipment
  • Has mounting plate
    No
Capacity
  • Number of modules
    0
Dimensions
  • Height
    1,375 mm
  • Width
    615 mm
  • Depth
    165 mm
Cover, door
  • Number of cabinet doors
    1
  • Door/cover is transparent
    No
Materials
  • Material
    Steel
  • RAL code
    9002
  • Colour
    Grey white
Safety
  • Protection class
    Isolation class I
  • Impact resistance IK
    IK05
  • Ingress Protection (IP) class
    IP41
  • Locking type
    Special tool, Without lock

Environmental value

We are committed to bettering our environmental performance by reducing our footprint while acting as a sustainability enabler for our customers. Learn More

RoHS conform Yes

Certifications and documents

125A 4 Way TPN Board c/w SD & SPD
PDF
17,17 MB
Hager RoHS report JN2B00016S2
PDF

Downloads

  • Image JN2B00016S2 | Hager

    Product Image JN2B00016S2

  • Product datasheet

    Image Hager Product data sheet JN2B00016S2 | Hager

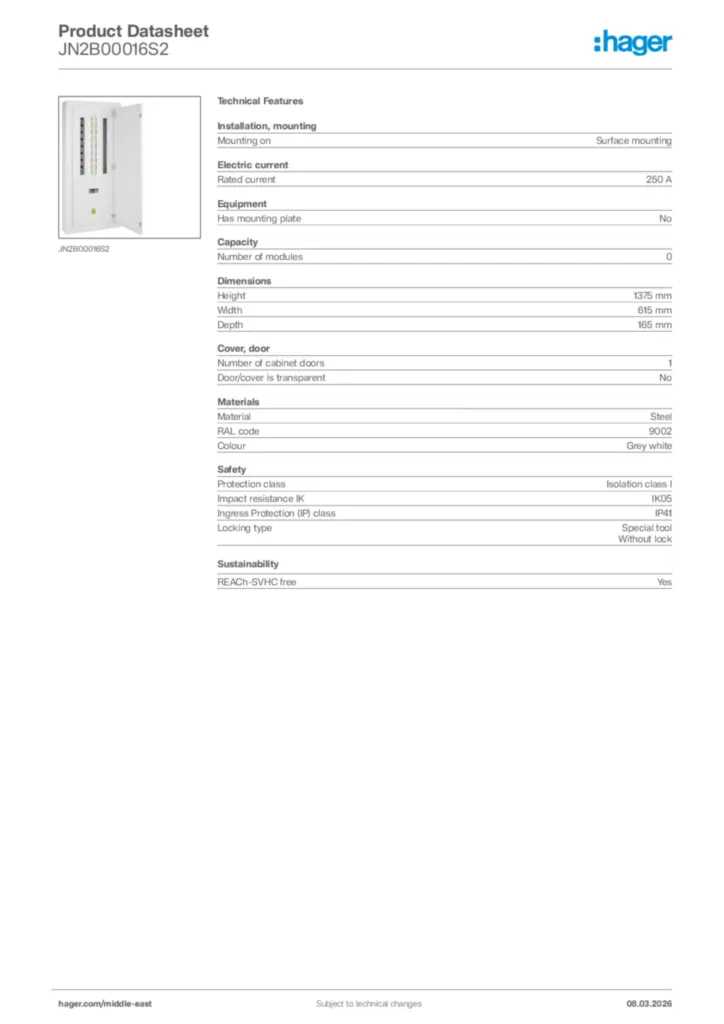

    Hager Product data sheet JN2B00016S2

    Product data sheet en-GB 2025-11-08

    PDF

  • Installation manual

    Image Installation manual en-GB 2024-02-16 | Hager

    Installation manual en-GB 2024-02-16

    PDF
    33,80 MB
