    • JK1B04S1
    EAN-Nr.
    3250611090663
    Packaging
    1 piece
    • Invicta TPN boards

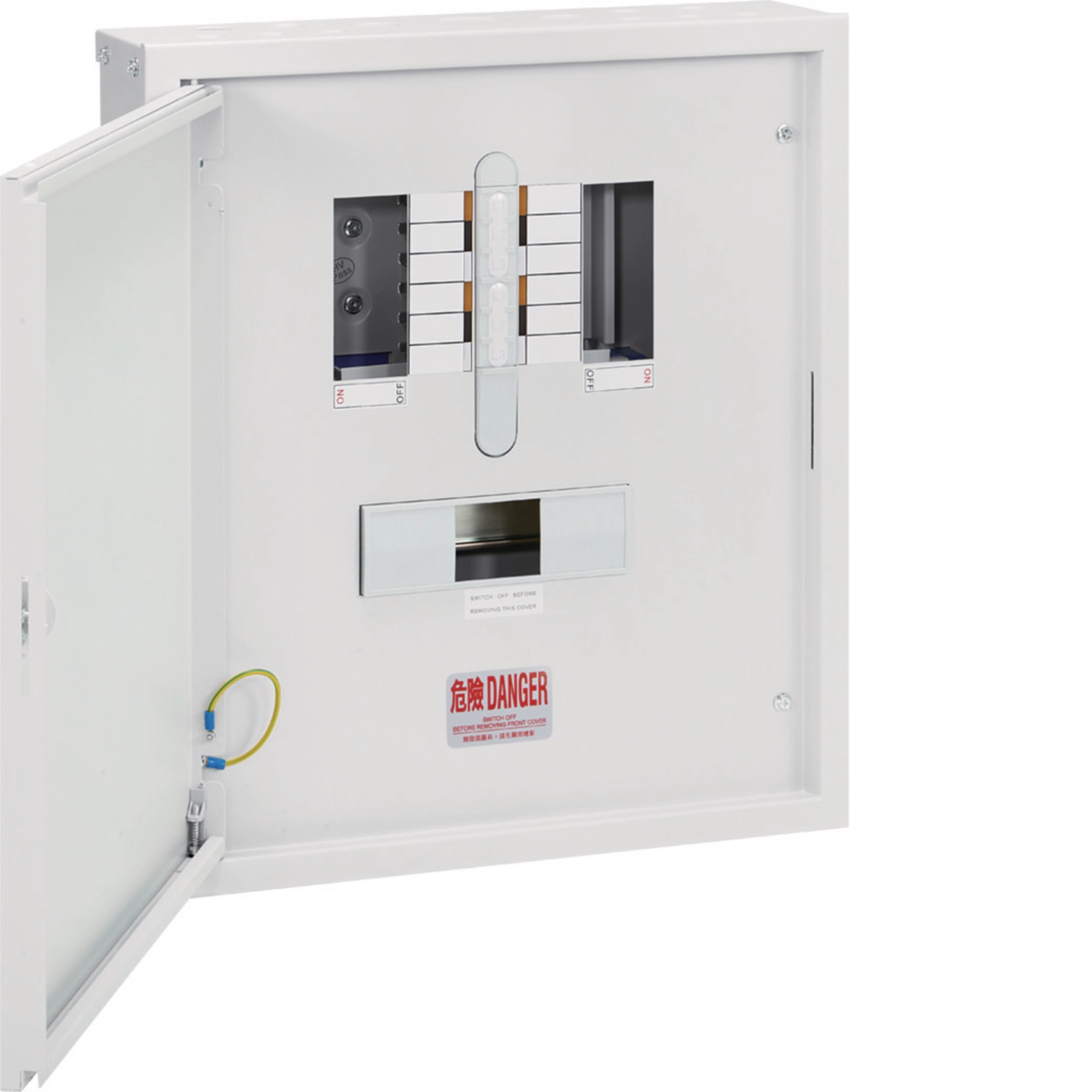

    125A TPN board, invicta,4 way, surface mounting JK1B04S1

    Add to a list
    Add to a list

    Login to create a product list

    You need to be logged into your myHager account to create product lists

    Create an account Sign in

    125A TPN board, invicta,4 way, surface mounting

    JK1B04S1

    • Accessories
    • Technical characteristics
    • Environmental value
    • Documentations
    • More products
    Download the sheet

    Complete your system

    Optional accessories

    • TPN/SPN boards 4 products available
    • Accessories/spare parts for low-voltage switch technology 2 products available

    Complete your system

    • TPN/SPN boards
    • Accessories/spare parts for low-voltage switch technology
    • JK1E01S

      125A TPN Spreader Box, invicta, surface mounting
      0.00 €  / *
    • JK1E16S

      125A TPN Extension box, invicta, 16 Module with Din Rail, depth120mmm, surface
      0.00 €  / *
    • JK1E32S

      125A TPN Extension box, invicta, 32 Module with Din Rail, surface
      0.00 €  / *
    • JK1E48S

      125A TPN Extension box, invicta, 48 Module with Din Rail, surface
      0.00 €  / *

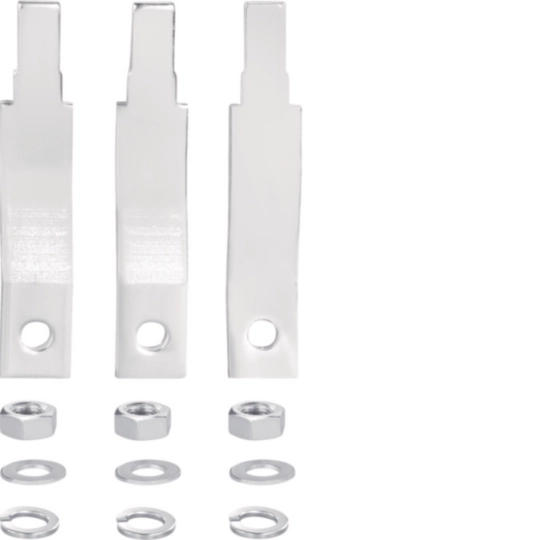

    • JK1L1003SM

      3 pole 63A/100A switch or MCB Incomer link kits for 125A TPN fixed load, invicta
      0.00 €  / *

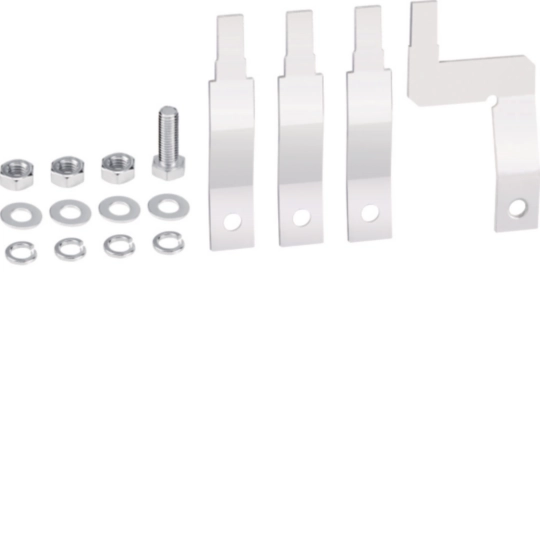

    • JK1L1004SM

      4 pole 63A/100A switch or MCB Incomer link kits for 125A TPN fixed load, invicta
      0.00 €  / *

    Technical characteristics

    Connection
    • Number of accessible phases
      3
    Installation, mounting
    • Mounting on
      Surface mounting
    Electric current
    • Breaking and opening capacity Idm
      0
    Equipment
    • Has mounting plate
      No
    • Equipped with switch
      No switch
    • Number of switches
      0
    • Type of busbar chassis
      Fixed load chassis
    Capacity
    • Number of modules
      4
    Dimensions
    • Height
      495 mm
    • Width
      405 mm
    • Depth
      115 mm
    Cover, door
    • Number of cabinet doors
      1
    • Door/cover is transparent
      No
    Materials
    • Material
      Steel
    • RAL code
      9002
    • Colour
      Grey white
    Safety
    • Protection class
      Isolation class I
    • Impact resistance IK
      IK05
    • Ingress Protection (IP) class
      IP41
    • Locking type
      Special tool, Without lock
    Architecture
    • Number of poles
      12

    Environmental value

    We are committed to bettering our environmental performance by reducing our footprint while acting as a sustainability enabler for our customers. Learn More

    RoHS conform Yes
    REACh-SVHC free Yes

    Certifications and documents

    125A 4 Way TPN Board c/w SD & SPD
    PDF
    17,17 MB
    Hager REACH declaration JK1B04S1
    PDF
    Hager RoHS report JK1B04S1
    PDF

    Downloads

    • Image JK1B04S1 | Hager

      Product Image JK1B04S1

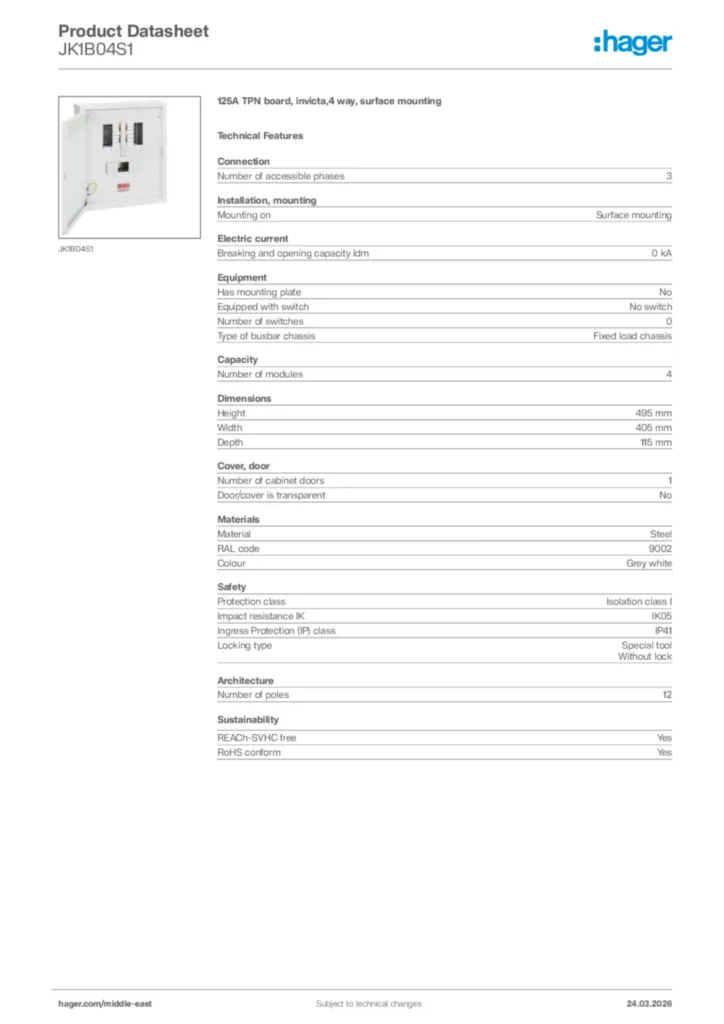

    • Product datasheet

      Image Hager Product data sheet JK1B04S1 | Hager

      Hager Product data sheet JK1B04S1

      125A TPN board, invicta,4 way, surface mounting

      PDF

    • Declaration of conformity

      Image Declaration of conformity en-GB 2024-08-28 | Hager

      Declaration of conformity en-GB 2024-08-28

      PDF
      262,65 kB
