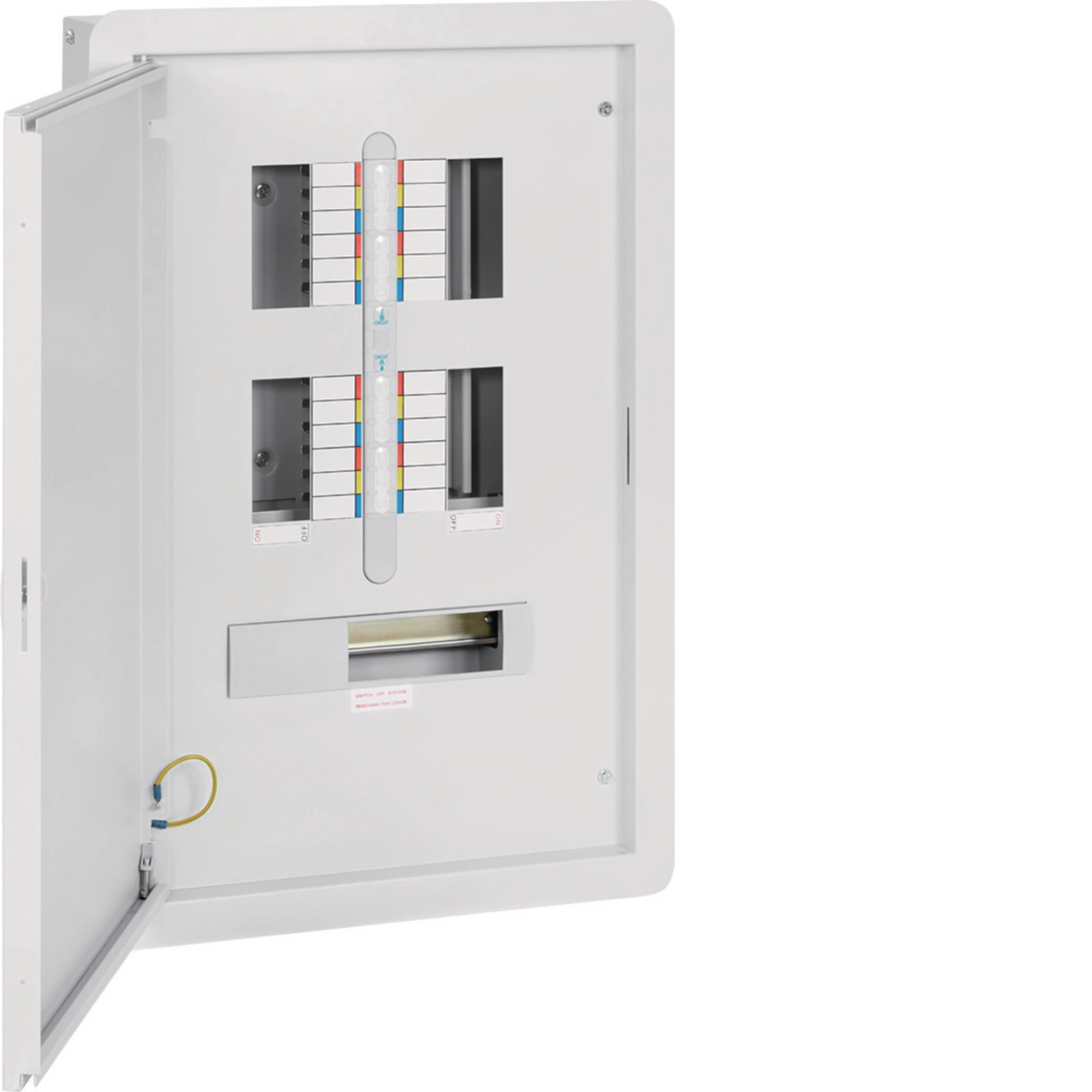

125A TPN board, invicta, 4 + 4 way, with wiring flush mounting JK1B044F2WA316
EAN-Nr.
3250611110965
Packaging
1 piece
Login to create a product list
You need to be logged into your myHager account to create product lists
Complete your system
Optional accessories
-
TPN/SPN boards 4 products available
Complete your system
-
JK1E01F
125A TPN Spreader Box, invicta, flush mounting, depth120mm
-
JK1E16F125A TPN Extension box, invicta, 16 Module with Din Rail, flush
-
JK1E32F125A TPN Extension box, invicta, 32 Module with Din Rail, depth120mmm, flush
-
JK1E48F125A TPN Extension box, invicta, 48 Module with Din Rail, depth120mmm, flush
Technical characteristics
Connection
-
Number of accessible phases3
Installation, mounting
-
Mounting onSurface mounting
Electric current
-
Breaking and opening capacity Idm0
Equipment
-
Has mounting plateNo
-
Equipped with switchNo switch
-
Number of switches0
-
Type of busbar chassisSplit chassis
Capacity
-
Number of modules0
Dimensions
-
Height690 mm
-
Width470 mm
-
Depth5 mm
Cover, door
-
Number of cabinet doors1
-
Door/cover is transparentNo
Materials
-
MaterialSteel
-
RAL code9002
-
ColourGrey white
Safety
-
Protection classIsolation class I
-
Impact resistance IKIK05
-
Ingress Protection (IP) classIP41
-
Locking typeSpecial tool, Without lock
Architecture
-
Number of poles12
