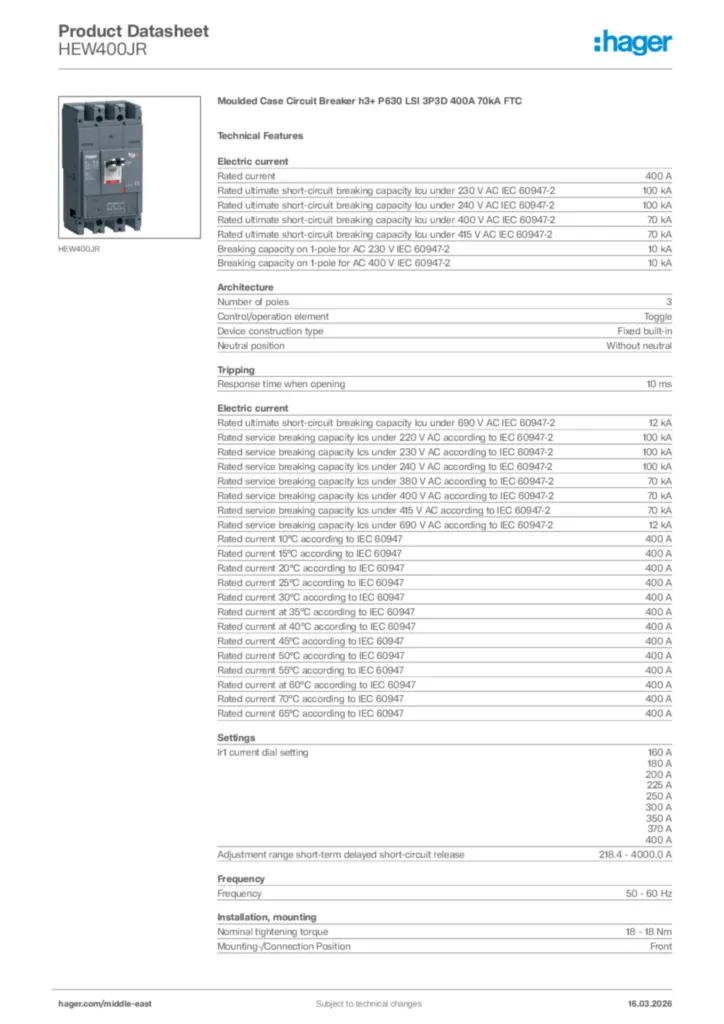

MCCB h3+ P630 LSI 3x400A 70kA • HEW400JR | Hager
Location Middle-East

  • Better buildings. Better tomorrows.

    • Menu
    Account
    EAN-Nr.
    3250613197896
    Packaging
    1 piece

    Moulded Case Circuit Breaker h3+ P630 LSI 3P3D 400A 70kA FTC HEW400JR

    Complete your system

    Optional accessories

  • See more (58)
    • Auxiliaries contact block 5 products available
    • Motor operator 12 products available
    • Mechanic accessories for low-voltage components 2 products available
    • Operating shaft for power breaker 3 products available
    • Connection Functions 6 products available
    • Handle with interlock for power breaker 1 products available

    Technical characteristics

    Electric current
    • Rated current
      400 A
    • Rated ultimate short-circuit breaking capacity Icu under 230 V AC IEC 60947-2
      100 kA
    • Rated ultimate short-circuit breaking capacity Icu under 240 V AC IEC 60947-2
      100 kA
    • Rated ultimate short-circuit breaking capacity Icu under 400 V AC IEC 60947-2
      70 kA
    • Rated ultimate short-circuit breaking capacity Icu under 415 V AC IEC 60947-2
      70 kA
    • Breaking capacity on 1-pole for AC 230 V IEC 60947-2
      10 kA
    • Breaking capacity on 1-pole for AC 400 V IEC 60947-2
      10 kA
    • Rated ultimate short-circuit breaking capacity Icu under 690 V AC IEC 60947-2
      12 kA
    • Rated service breaking capacity Ics under 220 V AC according to IEC 60947-2
      100 kA
    • Rated service breaking capacity Ics under 230 V AC according to IEC 60947-2
      100 kA
    • Rated service breaking capacity Ics under 240 V AC according to IEC 60947-2
      100 kA
    • Rated service breaking capacity Ics under 380 V AC according to IEC 60947-2
      70 kA
    • Rated service breaking capacity Ics under 400 V AC according to IEC 60947-2
      70 kA
    • Rated service breaking capacity Ics under 415 V AC according to IEC 60947-2
      70 kA
    • Rated service breaking capacity Ics under 690 V AC according to IEC 60947-2
      12 kA
    • Rated current 10°C according to IEC 60947
      400 A
    • Rated current 15°C according to IEC 60947
      400 A
    • Rated current 20°C according to IEC 60947
      400 A
    • Rated current 25°C according to IEC 60947
      400 A
    • Rated current 30°C according to IEC 60947
      400 A
    • Rated current at 35°C according to IEC 60947
      400 A
    • Rated current at 40°C according to IEC 60947
      400 A
    • Rated current 45°C according to IEC 60947
      400 A
    • Rated current 50°C according to IEC 60947
      400 A
    • Rated current 55°C according to IEC 60947
      400 A
    • Rated current at 60°C according to IEC 60947
      400 A
    • Rated current 70°C according to IEC 60947
      400 A
    • Rated current 65°C according to IEC 60947
      400 A
    Architecture
    • Number of poles
      3
    • Control/operation element
      Toggle
    • Device construction type
      Fixed built-in
    • Neutral position
      Without neutral
    Tripping
    • Response time when opening
      10 ms
    Settings
    • Ir1 current dial setting
      160 A, 180 A, 200 A, 225 A, 250 A, 300 A, 350 A, 370 A, 400 A
    • Adjustment range short-term delayed short-circuit release
      218.4 - 4,000.0 A
    Frequency
    • Frequency
      50 - 60 Hz
    Installation, mounting
    • Nominal tightening torque
      18 - 18 Nm
    • Mounting-/Connection Position
      Front
    Voltage
    • Rated impulse withstand voltage Uimp
      8,000 V
    • Rated insulation voltage Ui
      800 V
    • Rated operational voltage Ue
      220 - 690 V
    Functions
    • Trip unit
      LSI
    Power
    • Total power loss under IN
      57.8 W
    • Power loss per pole at In
      19.3 W
    Equipment
    • Number of auxiliary contacts as change-over contact
      0
    • Number of auxiliary contacts as normally closed contact
      0
    • Number of auxiliary contacts as normally open contact
      0
    Safety
    • Ingress Protection (IP) class
      IP4X
    Use conditions
    • Operating temperature
      -25 - 70 °C
    • Degree of pollution according to IEC 60664 / IEC 60947-2
      3
    Connection
    • Connector/plug type
      Terminal
    Cable
    • Cable material
      Copper
    Dimensions
    • Height
      260 mm
    • Width
      140 mm
    • Depth
      150 mm
    Controls and indicators
    • Motor drive integrated
      No
    Compatibility
    • Suitable for DIN Rail
      No
    • Compatible with RDC AOB
      Yes
    • Suitable for distribution board
      Yes
    Power supply
    • Position power supply
      Bidirectional
    Electrical protection
    • Long-time overload protection (ltd): delay (tr)
      0.5 s, 1.5 s, 2.5 s, 5 s, 7.5 s, 9 s, 10 s, 12 s, 14 s, 16 s
    • Short-time protection (std): current (Isd)
      1.5, 2, 3, 4, 5, 6, 7, 8, 10
    • Short-time protection (std): delay (tsd)
      50 ms, 100 ms, 200 ms, 300 ms, 400 ms
    • Instantaneous protection (li): dial setting coefficient
      3, 4, 5, 6, 7, 8, 10, 11, 12
