Alarm contact 1NO+1NC 250V AC (x160-P160-x250-P250-x630-P630) HXA024H
EAN-Nr.
3250613346423
Packaging
1 piece
Login to create a product list
You need to be logged into your myHager account to create product lists
Complete your system
Compatible products
-
Referenced by 334 products available
Referenced by
-
HEW251NRMoulded Case Circuit Breaker h3+ P630 Energy 4P4D N0-50-100% 250A 70kA FTC
-
HMT251DRMoulded Case Circuit Breaker h3+ P250 TM ADJ 4P4D N0-100% 250A 50kA FTC
-
HHB100ZMoulded Case Circuit Breaker X250 3P 25kA 100A TM
-
HHB125ZMoulded Case Circuit Breaker X250 3P 25kA 125A TM
-
HHB160ZMoulded Case Circuit Breaker X250 3P 25kA 160A TM
-
HHB200ZMoulded Case Circuit Breaker X250 3P 25kA 200A TM
-
HHB250ZMoulded Case Circuit Breaker X250 3P 25kA 250A TM
-
HNB160ZMoulded Case Circuit Breaker x250 3P 40kA 160A TM
-
HDA100ZMoulded Case Circuit Breaker h3 x160 TM FIX 3P3D 100A 18kA CTC
-
HNB250ZMoulded Case Circuit Breaker x250 3P 40kA 250A TM
-
HEW250NRMoulded Case Circuit Breaker h3+ P630 Energy 3P3D 250A 70kA FTC
-
HMW631NRMoulded Case Circuit Breaker h3+ P630 Energy 4P4D N0-50-100% 630A 50kA FTC
-
HEW400NRMoulded Case Circuit Breaker h3+ P630 Energy 3P3D 400A 70kA FTC
-
HEW401NRMoulded Case Circuit Breaker h3+ P630 Energy 4P4D N0-50-100% 400A 70kA FTC
-
HEW630NRMoulded Case Circuit Breaker h3+ P630 Energy 3P3D 630A 70kA FTC
-
HEW631NRMoulded Case Circuit Breaker h3+ P630 Energy 4P4D N0-50-100% 630A 70kA FTC
-
HMW250NRMoulded Case Circuit Breaker h3+ P630 Energy 3P3D 250A 50kA FTC
-
HMW251NRMoulded Case Circuit Breaker h3+ P630 Energy 4P4D N0-50-100% 250A 50kA FTC
-
HMW400NRMoulded Case Circuit Breaker h3+ P630 Energy 3P3D 400A 50kA FTC
-
HMW401NRMoulded Case Circuit Breaker h3+ P630 Energy 4P4D N0-50-100% 400A 50kA FTC
Technical characteristics
Electric current
-
Rated current3 A
-
Rated current 230 V AC153 A
Connectivity
-
Type of connectionquickconnect
-
Mounting typeClick mounting
Connection
-
Type of contacts1NC+1NO
-
Cross-section flexible conductor0.5 - 1.25 mm²
-
Cross-section rigid conductor0.5 - 1.25 mm²
Voltage
-
Rated insulation voltage Ui250 V
-
Rated impulse withstand voltage Uimp1,500 V
-
Type voltage supplyAC/DC
Power
-
Total power loss under IN3 W
Equipment
-
Number of INV contacts0
-
Number of NC contacts1
Safety
-
Ingress Protection (IP) classIP4X
Environmental value
We are committed to bettering our environmental performance by reducing our footprint while acting as a sustainability enabler for our customers. Learn More
Certifications and documents
Downloads
-
Product datasheet

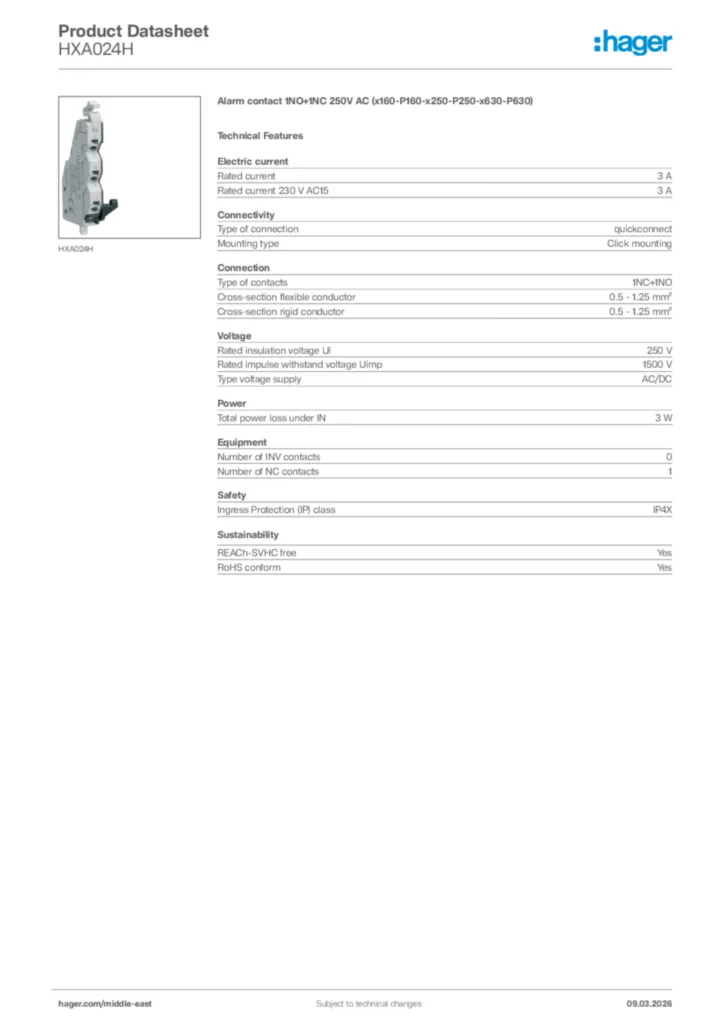

Hager Product data sheet HXA024H
Alarm contact 1NO+1NC 250V AC (x160-P160-x250-P250-x630-P630)
PDF -
Installation manual
Manual for HXA0xx - Shunt trip, undervoltage release (Date: 2020-06)
Installation manual International 2017-06-20
PDF6,65 MB -
Handbook
Technical catalogue
h3+ Moulded Case Circuit breakers up to 630A
PDF48,86 MB
