Wall trunking base f-mounted BRA 68x210mm lid 2x80mm of alu natural anodized BRA652101DELN
EAN-Nr.
4012740834209
Packaging
6 Meters
Login to create a product list
You need to be logged into your myHager account to create product lists
Complete your system
Must-have accessories
BRA0802ELN
Wall trunking lid to BRA width 80mm of aluminium natural anodized
Optional accessories
-
Internal corner for wall duct 1 products available -
Cover for external corner wall duct 1 products available -
External corner for wall duct 1 products available -
Junction box for wall duct 2 products available
Complete your system
Technical characteristics
Dimensions
-
Height68 mm
-
Width210 mm
-
Length2,000 mm
-
Inner cross-section12,060 - 12,060 mm²
Cover, door
-
Number of mountable lids2
-
Cover width 180 mm
-
Cover width 280 mm
-
Cover width 30
Capacity
-
Max. number of cables (Ø11 mm, 50% filled, with devices)23
-
Max. number of cables (Ø11mm, 50% filled, without devices)50
Compatibility
-
Device installation compatible formatStandard 60 mm, CEE, Ecoline, EIB, MCBs
Installation, mounting
-
Base perforationYes
Materials
-
MaterialAluminium
-
TreatmentAnodised
-
ColourAluminium
Safety
-
Impact resistance IKIK07
-
Ingress Protection (IP) classIP40
Use conditions
-
Operating temperature-5 - 90 °C
Connectivity
-
Trunking couplingCouplers as separate reference
Equipment
-
Cable retaining clip includedNo
-
Number of cable retainers per meter0
-
With protective filmYes
Environmental value
We are committed to bettering our environmental performance by reducing our footprint while acting as a sustainability enabler for our customers. Learn More
Certifications and documents
Downloads
-
Product datasheet

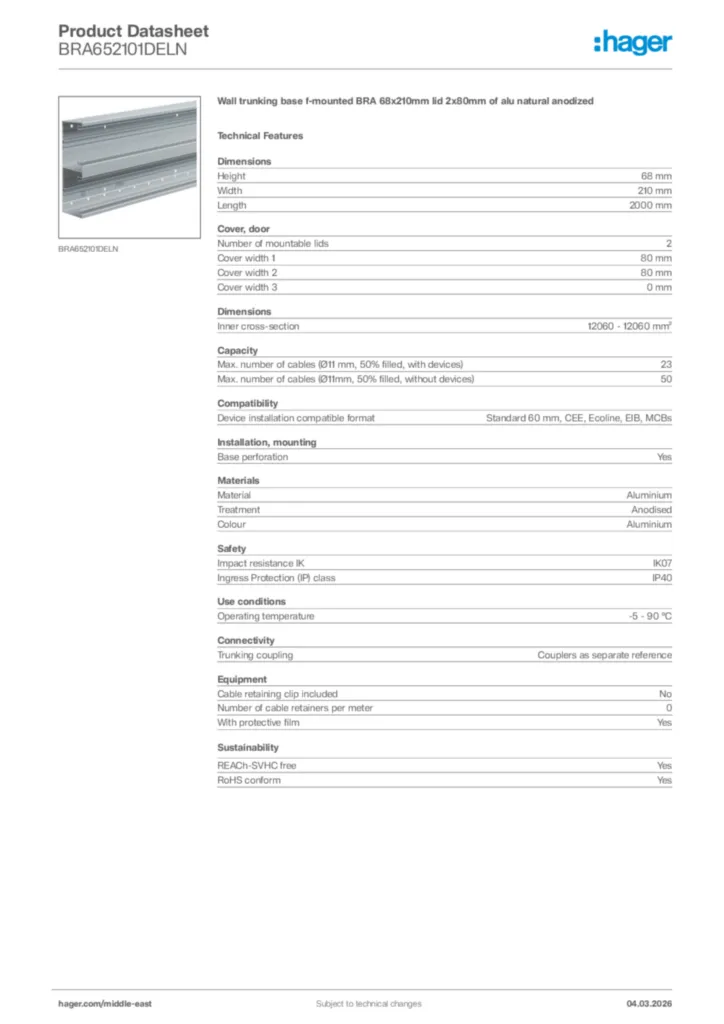

Hager Product data sheet BRA652101DELN
Wall trunking base f-mounted BRA 68x210mm lid 2x80mm of alu natural anodized
PDF -
DXF files
DXF files International 2023-02-02
DXF380,33 kB -
STEP files
STEP files International 2023-02-02
STP1,67 MB -
Product Drawing
Product drawing
Product Drawing International 2023-02-02
PDF68,88 kB -
Declaration of conformity
EU-Declaration BR_BRA_BRS T016A DE_EN 25072019
Declaration of conformity International 2019-08-23
PDF42,74 kB
