EAN-Nr.

3250611063759

Packaging

1 piece

RCBO 1P+N 4.5kA C-40A 30mA AC Class 60Hz ADC847F

Phase out product: please contact your electrical wholesaler for availability

Accessories
Technical characteristics
Environmental value
Documentations

Download the sheet

Complete your system

Under voltage coil 1 products available
Shunt release 2 products available
Undervoltage and overvoltage release 1 products available
Auxiliaries contact block 2 products available
Modular phase busbar 1 products available

Technical characteristics

Type of pole

1P+N

Ingress Protection (IP) class

IP20

Rated short-circuit breaking capacity Icn AC according to IEC 60898-1

4.50 kA

Type of connection

Screw terminal

Rated insulation voltage Ui

500 V
Rated impulse withstand voltage Uimp

4,000 V
Max. operating voltage

240 V
Rated operational voltage Ue

240 - 240 V
Type voltage supply

AC

Rated current

40 A
Rated residual operating current Idn

30 mA
Rated current -25°C

46.90 A
Rated current at -20°C

46.30 A
Rated current -15°C

45.60 A
Rated current -10°C

45 A
Rated current -5°C

44.40 A
Rated current at 0°C

43.80 A
Rated current 5°C

43.10 A
Rated current 10°C

42.50 A
Rated current 15°C

41.90 A
Rated current at 20°C

41.30 A
Rated current 25°C

40.60 A
Rated current 30°C

40 A
Rated current 35°C

39.40 A
Rated current at 40°C

38.80 A
Correction factor of rating current for 2 devices placed side by side

1
Correction factor of rating current for 3 devices placed side by side

0.95
Correction factor of rating current for 4 and 5 devices placed side by side

0.90
Correction factor of rating current for 6 devices placed side by side

0.85
Min./max. threshold value of the AC thermal operation

1.13 - 1.45 A
Rated service breaking capacity Ics AC according to IEC 60898-1

4.50 kA

Total power loss under IN

11.10 W

Frequency

60 - 60 Hz

Nominal tightening torque down terminal

2.10 - 2.10 Nm
Nominal tightening torque top terminal

2.10 - 2.10 Nm
Nominal tightening torque

2.10 - 2.10 Nm
Type of top connection for modular devices

Screw terminal
Type of bottom connection for modular devices

biconnect

Max. Altitude

2,000 m
Class of energy limitation I²t

3
Operating temperature

-25 - 40 °C
Storage/transport temperature

-25 - 70 °C
Degree of pollution according to IEC 60664 / IEC 60947-2

2
Air humidity protection

For all climates

Electric endurance in number of cycles

2,000
Number of mechanical operations

1,000

Cross-section flexible conductor

1 - 16 mm²
Cross-section rigid conductor

1 - 25 mm²
Cross-section of input with screws, for flexible conductors

1 - 16 mm²
Cross-section of input with screws, for massive conductors

1 - 25 mm²
Cross-section of input and output with screws, for flexible conductors

1 - 16 mm²
Cross-section of input and output with screws, for massive conductors

1 - 25 mm²

Number of modules

2

Height

83 mm
Width

35 mm
Depth

68 mm

Environmental value

We are committed to bettering our environmental performance by reducing our footprint while acting as a sustainability enabler for our customers. Learn More

RoHS conform Yes

Certifications and documents

RCBO 1P+N 6kA B-16A 30mA A

PDF

16,18 MB

Hager REACH declaration ADC847F

PDF

RoHS report ADC847F

PDF

Downloads

Product Image ADC847F

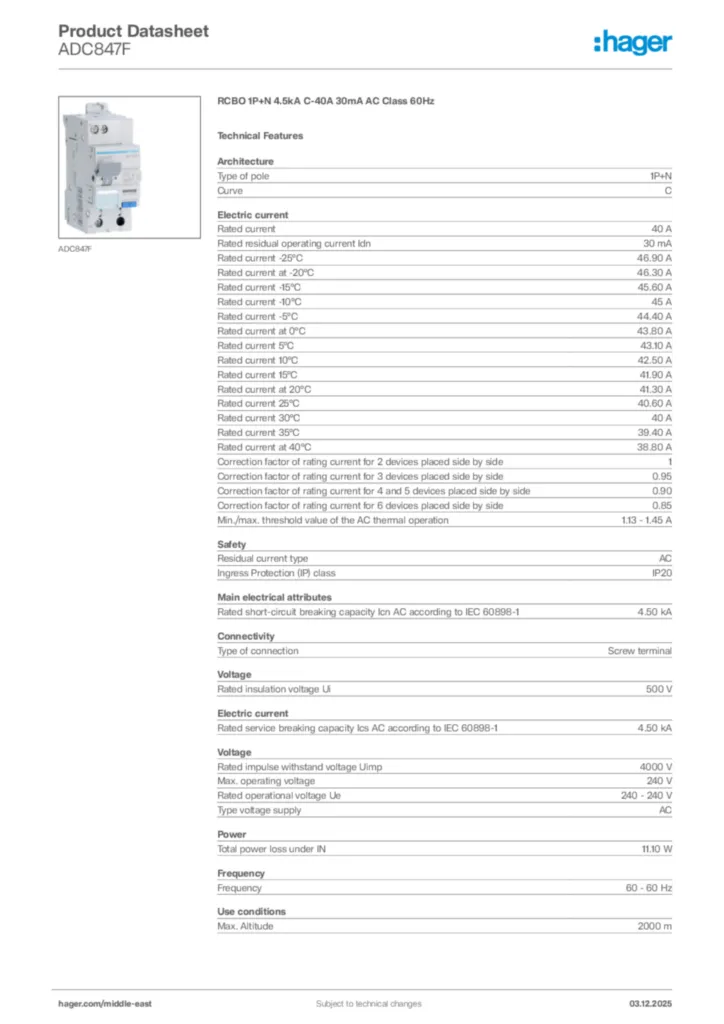

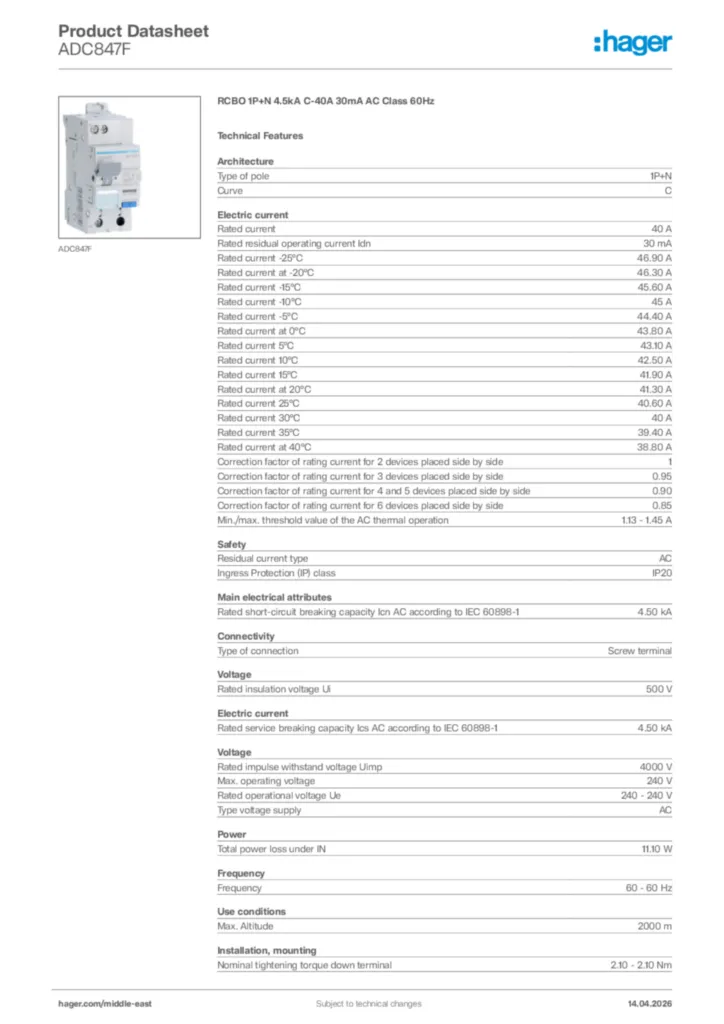

Product datasheet

Hager Product data sheet ADC847F

RCBO 1P+N 4.5kA C-40A 30mA AC Class 60Hz

PDF
