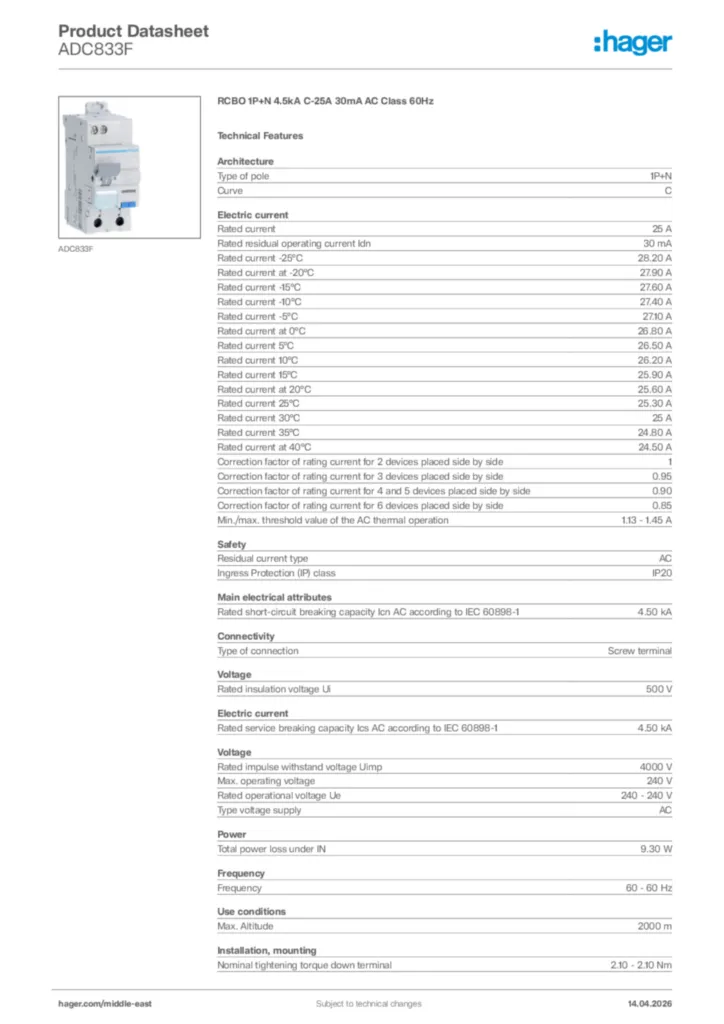

RCBO 1P+N 4.5kA C-25A 30mA AC Class 60Hz ADC833F
EAN-Nr.
3250611063735
Packaging
1 piece
Login to create a product list
You need to be logged into your myHager account to create product lists
Complete your system
Optional accessories
-
Under voltage coil 1 products available -
Shunt release 2 products available -
Undervoltage and overvoltage release 1 products available -
Auxiliaries contact block 2 products available -
Protective cap/strip for phase busbar 2 products available -
Modular phase busbar 1 products available
Complete your system
Technical characteristics
Architecture
-
Type of pole1P+N
-
CurveC
Safety
-
Residual current typeAC
-
Ingress Protection (IP) classIP20
Installation, mounting
-
Nominal tightening torque down terminal2.10 - 2.10 Nm
-
Nominal tightening torque top terminal2.10 - 2.10 Nm
-
Nominal tightening torque2.10 - 2.10 Nm
-
Type of top connection for modular devicesScrew terminal
-
Type of bottom connection for modular devicesbiconnect
Main electrical attributes
-
Rated short-circuit breaking capacity Icn AC according to IEC 60898-14.50 kA
Connectivity
-
Type of connectionScrew terminal
Voltage
-
Rated insulation voltage Ui500 V
-
Rated impulse withstand voltage Uimp4,000 V
-
Max. operating voltage240 V
-
Rated operational voltage Ue240 - 240 V
-
Type voltage supplyAC
Electric current
-
Rated current25 A
-
Rated residual operating current Idn30 mA
-
Rated current -25°C28.20 A
-
Rated current at -20°C27.90 A
-
Rated current -15°C27.60 A
-
Rated current -10°C27.40 A
-
Rated current -5°C27.10 A
-
Rated current at 0°C26.80 A
-
Rated current 5°C26.50 A
-
Rated current 10°C26.20 A
-
Rated current 15°C25.90 A
-
Rated current at 20°C25.60 A
-
Rated current 25°C25.30 A
-
Rated current 30°C25 A
-
Rated current 35°C24.80 A
-
Rated current at 40°C24.50 A
-
Correction factor of rating current for 2 devices placed side by side1
-
Correction factor of rating current for 3 devices placed side by side0.95
-
Correction factor of rating current for 4 and 5 devices placed side by side0.90
-
Correction factor of rating current for 6 devices placed side by side0.85
-
Min./max. threshold value of the AC thermal operation1.13 - 1.45 A
-
Rated service breaking capacity Ics AC according to IEC 60898-14.50 kA
Power
-
Total power loss under IN9.30 W
Frequency
-
Frequency60 - 60 Hz
Use conditions
-
Max. Altitude2,000 m
-
Class of energy limitation I²t3
-
Operating temperature-25 - 40 °C
-
Storage/transport temperature-25 - 70 °C
-
Degree of pollution according to IEC 60664 / IEC 60947-22
-
Air humidity protectionFor all climates
Endurance
-
Electric endurance in number of cycles2,000
-
Number of mechanical operations2,000
Connection
-
Cross-section flexible conductor1 - 16 mm²
-
Cross-section rigid conductor1 - 25 mm²
-
Cross-section of input with screws, for flexible conductors1 - 16 mm²
-
Cross-section of input with screws, for massive conductors1 - 25 mm²
-
Cross-section of input and output with screws, for flexible conductors1 - 16 mm²
-
Cross-section of input and output with screws, for massive conductors1 - 25 mm²
Capacity
-
Number of modules2
Dimensions
-
Height83 mm
-
Width35 mm
-
Depth68 mm
