RCBO 1P+N 6kA C-16A 30mA A Class ADA966G

Name: ADA966G
Brand: Hager
SKU: ADA966G

EAN-Nr.

3250611011095

Packaging

1 piece

Accessories
Technical characteristics
Environmental value
Documentations
More products

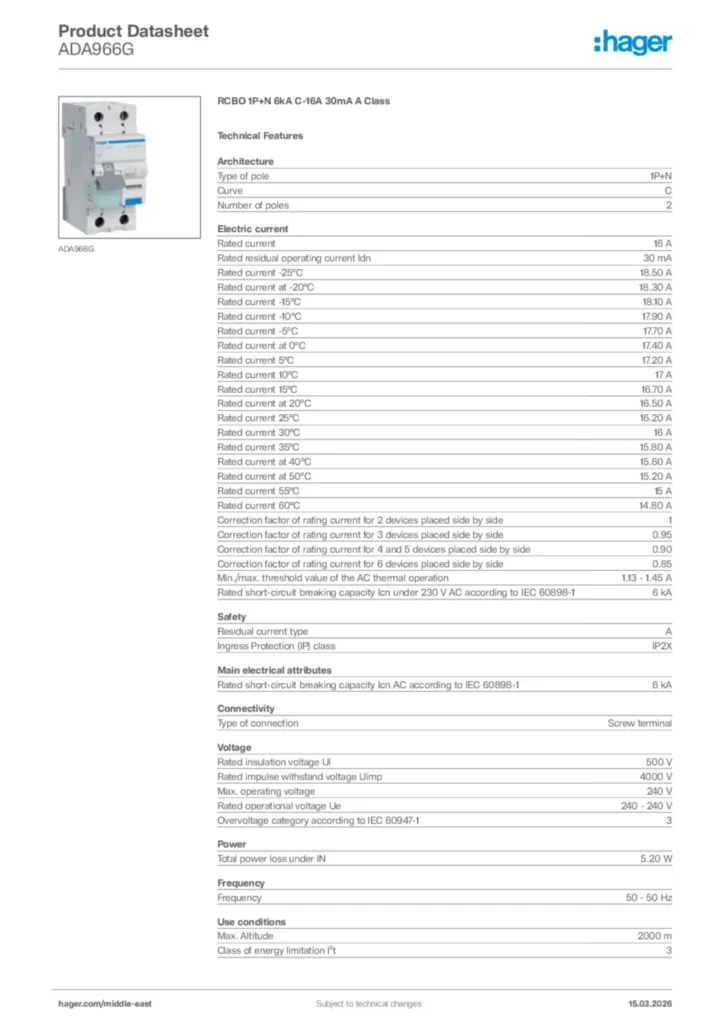

Download the sheet

Complete your system

Mechanic accessories for low-voltage components 1 products available
Under voltage coil 1 products available
Shunt release 2 products available
Undervoltage and overvoltage release 1 products available
Auxiliaries contact block 2 products available
Protective cap/strip for phase busbar 2 products available

Technical characteristics

Type of pole

1P+N
Curve

C

Rated current

16 A
Rated residual operating current Idn

30 mA
Rated current -25°C

18.50 A
Rated current at -20°C

18.30 A
Rated current -15°C

18.10 A
Rated current -10°C

17.90 A
Rated current -5°C

17.70 A
Rated current at 0°C

17.40 A
Rated current 5°C

17.20 A
Rated current 10°C

17 A
Rated current 15°C

16.70 A
Rated current at 20°C

16.50 A
Rated current 25°C

16.20 A
Rated current 30°C

16 A
Rated current 35°C

15.80 A
Rated current at 40°C

15.60 A
Rated current at 50°C

15.20 A
Rated current 55°C

15 A
Rated current 60°C

14.80 A
Correction factor of rating current for 2 devices placed side by side

1
Correction factor of rating current for 3 devices placed side by side

0.95
Correction factor of rating current for 4 and 5 devices placed side by side

0.90
Correction factor of rating current for 6 devices placed side by side

0.85
Min./max. threshold value of the AC thermal operation

1.13 - 1.45 A
Rated short-circuit breaking capacity Icn under 230 V AC according to IEC 60898-1

6 kA

Residual current type

A
Ingress Protection (IP) class

IP2X

Rated short-circuit breaking capacity Icn AC according to IEC 60898-1

6 kA

Type of connection

Screw terminal

Rated insulation voltage Ui

500 V
Rated impulse withstand voltage Uimp

4,000 V
Max. operating voltage

240 V
Rated operational voltage Ue

240 - 240 V
Overvoltage category according to IEC 60947-1

3

Total power loss under IN

5.20 W

Frequency

50 - 50 Hz

Max. Altitude

2,000 m
Class of energy limitation I²t

3
Operating temperature

-25 - 40 °C
Storage/transport temperature

-25 - 70 °C

Electric endurance in number of cycles

2,000
Number of mechanical operations

2,000

Cross-section flexible conductor

1 - 16 mm²
Cross-section rigid conductor

1 - 25 mm²
Cross-section of input with screws, for flexible conductors

1 - 16 mm²
Cross-section of input with screws, for massive conductors

1 - 25 mm²
Cross-section of output with screws, for flexible conductors

1 - 16 mm²
Cross-section of output with screws, for massive conductors

1 - 25 mm²
Cross-section of input and output with screws, for flexible conductors

1 - 16 mm²
Cross-section of input and output with screws, for massive conductors

1 - 25 mm²

Nominal tightening torque

2.10 - 2.10 Nm
Type of top connection for modular devices

Screw terminal
Type of bottom connection for modular devices

biconnect

Number of modules

2

Height

83 mm
Width

35 mm
Depth

68 mm

Suitable for DIN Rail

Yes
