SCHUKO socket outlet, w. plug-in terminals, Int. module inserts, anthracite matt 947782505
Login to create a product list
You need to be logged into your myHager account to create product lists
Also available in
Product colour - Anthracite
Complete your system
Must-have accessories
See all (11)
Optional accessories
-
Accessories/spare parts for domestic switching devices 1 products available
Compatible products
-
Referenced by 44 products available
Mandatory accessories
-
9191501Contact protection box 2gang, Integro module inserts, grey
-
9191502Contact protection box 2gang, Integro module inserts, grey
-
91820Contact protection box Ø 45 mm, Integro module inserts, grey
-
91933Contact protection box 3gang, Integro module inserts, grey
-
918282599Integro Flow-Frame 1-Gang with Hinged Cover, Imprint IP44, Polar White Glossy
-
918282597Integro Flow-Frame 1-Gang with Hinged Cover, Imprint IP44, Grey Glossy
-
918282595Integro Flow-Frame 1-Gang with Hinged Cover, Imprint IP44, Anthracite Matt
-
918282591Integro Flow-Frame 1-Gang with Hinged Cover, Imprint IP44, Brown Matt
-
918282568Integro Flow-Frame 1-Gang with Hinged Cover, Imprint IP44, Chrome Matt Lacquered
-
91887Contact protection box Ø 49 mm, Integro module inserts, grey
-
91883Contact protection box Ø 49 mm, deep, Integro module inserts, grey
Referenced by
-
919882502Integro Flow-Frame, 1-Gang, Hinged Cover and Labelling Field Polar White Glossy
-
918272599Integro Flow-Frame with Imprint 'IP44' Polar White Glossy
-
919882505Integro Flow-Frame, 1-Gang, Hinged Cover and Labelling Field Anthracite Matt
-
918272597Integro Flow-Frame with Imprint 'IP44' Grey Glossy
-
918272568Integro Flow Frame with Imprint 'IP44' Chrome Matt Lacquered
-
918032509Integro Flow Frame, 1-Gang with Labelling Field, Polar White Glossy
-
918032507Integro Flow Frame, 1-Gang with Labelling Field, Grey Glossy
-
918032505Integro Flow Frame, 1-Gang with Labelling Field, Anthracite Matt
-
918032568Integro Flow Frame, 1-Gang with Labelling Field Chrome Matt Lacquered
-
918272591Integro Flow-Frame with Imprint 'IP44' Brown Matt
-
919882506Integro Flow-Frame, 1-Gang, Hinged Cover and Labelling Field Grey Glossy
-
918282568
Integro Flow-Frame 1-Gang with Hinged Cover, Imprint IP44, Chrome Matt Lacquered
-
918282591
Integro Flow-Frame 1-Gang with Hinged Cover, Imprint IP44, Brown Matt
-
918282595
Integro Flow-Frame 1-Gang with Hinged Cover, Imprint IP44, Anthracite Matt
-
918282597
Integro Flow-Frame 1-Gang with Hinged Cover, Imprint IP44, Grey Glossy
-
918282599
Integro Flow-Frame 1-Gang with Hinged Cover, Imprint IP44, Polar White Glossy
-
918192524Integro Flow Frame, 3-Gang Stainless Steel Lacquered
-
918192568Integro Flow Frame, 3-Gang Chrome Matt Lacquered
-
918192511Integro Flow Frame, 3-Gang Brown Matt
-
918192510Integro Flow Frame, 3-Gang Black Glossy
Technical characteristics
Voltage
-
Rated voltage250 V
Electric current
-
Rated current16 A
Frequency
-
Frequency50 - 50 Hz
Materials
-
ColourAnthracite
-
RAL code7021
-
Surface finishMatt
-
MaterialThermoplastic
-
TreatmentUntreated
Dimensions
-
Height55.50 mm
-
Width55.50 mm
-
Number of units1
-
Built-in depth flush-mounted boxes32 mm
-
Built-in depth32.70 mm
Installation, mounting
-
Mounting onFlush mounting
Connectivity
-
Type of connectionScrew terminal
-
Mounting typeBuilt in installation, Screw mounting
Equipment
-
Connector/plug type socket outletSCHUKO
-
Rotated central insertNo
-
With hinged lidNo
-
With round protective earth pinNo
-
With signal lampNo
-
With lockNo
Accessories
-
Has labelling fieldNo
Capacity
-
Number of modules1
Safety
-
With enhanced contact protectionNo
-
Impact resistance IKIK05
-
Ingress Protection (IP) classIP20
Functions
-
With orientation lightingNo
-
With function lightingNo
Identification
-
With imprintNo
-
Related Systemsintegro
Environmental value
We are committed to bettering our environmental performance by reducing our footprint while acting as a sustainability enabler for our customers. Learn More

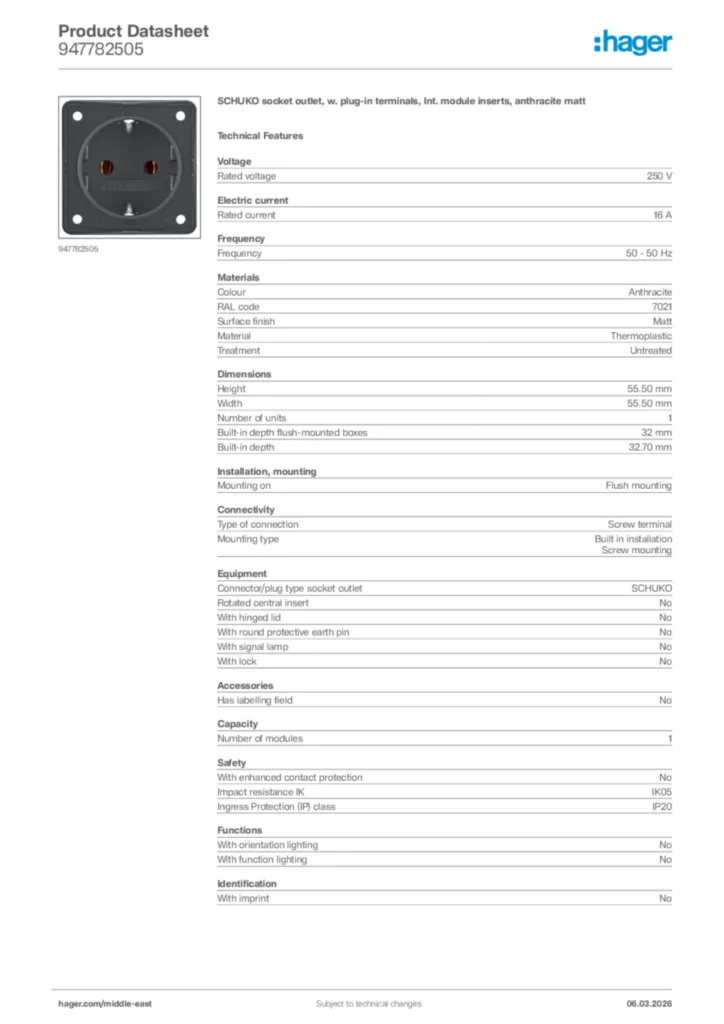

Certifications and documents
