B.IQ push-button 4gang comf, KNX - B.IQ, al., al. anodised 75164594

EAN-Nr.
4011334257578
Packaging
1 piece

You have to log in with your myHager profile to see prices and to order.

Add to a list
Add to a list

Login to create a product list

You need to be logged into your myHager account to create product lists

Create an account Sign in

B.IQ push-button 4gang comf, KNX - B.IQ, al., al. anodised

75164594

  • Accessories
  • Technical characteristics
  • Environmental value
  • Documentations
  • More products
Download the sheet

Complete your system

Must-have accessories

Previous
Previous
75040001
75040001
Bus coupling unit flush-mtd, KNX
Add to a list
Add to a list

Optional accessories

  • Labelling material for domestic switching devices 1 products available

Complete your system

  • Labelling material for domestic switching devices
  • 75900081

    B.IQlab. field for push-buttons 4gang, B.IQ, clear, trans.
    0.00 €  / *

Technical characteristics

Installation, mounting
  • Mounting on
    Flush mounting
Use conditions
  • Operating temperature
    -5 - 45 °C
Functions
  • With room temperature controller
    No
Dimensions
  • Height
    118.10 mm
  • Width
    88.50 mm
  • Depth
    16.65 mm
Equipment
  • Number of actuation points
    8
Controls and indicators
  • With LED indication
    Yes
Materials
  • Colour
    Aluminium
  • RAL code
    9006
  • Material
    Aluminium
  • Surface finish
    Matt
Accessories
  • Has labelling field
    No
Screen
  • With display
    No
Texts
  • Function
    For switch, push-button, dimmer and shutter functions
  • Protection
    With dismantling protection

Environmental value

We are committed to bettering our environmental performance by reducing our footprint while acting as a sustainability enabler for our customers. Learn More

REACh-SVHC free Yes

Certifications and documents

Push-button module 2gang, intg temp. sensor+bus coupl. unit,KNX-S.1/B.3/B.7
PDF
1,50 MB
REACH declaration 75164594
PDF

Downloads

  • Image 75164594 | Hager

    Product Image 75164594

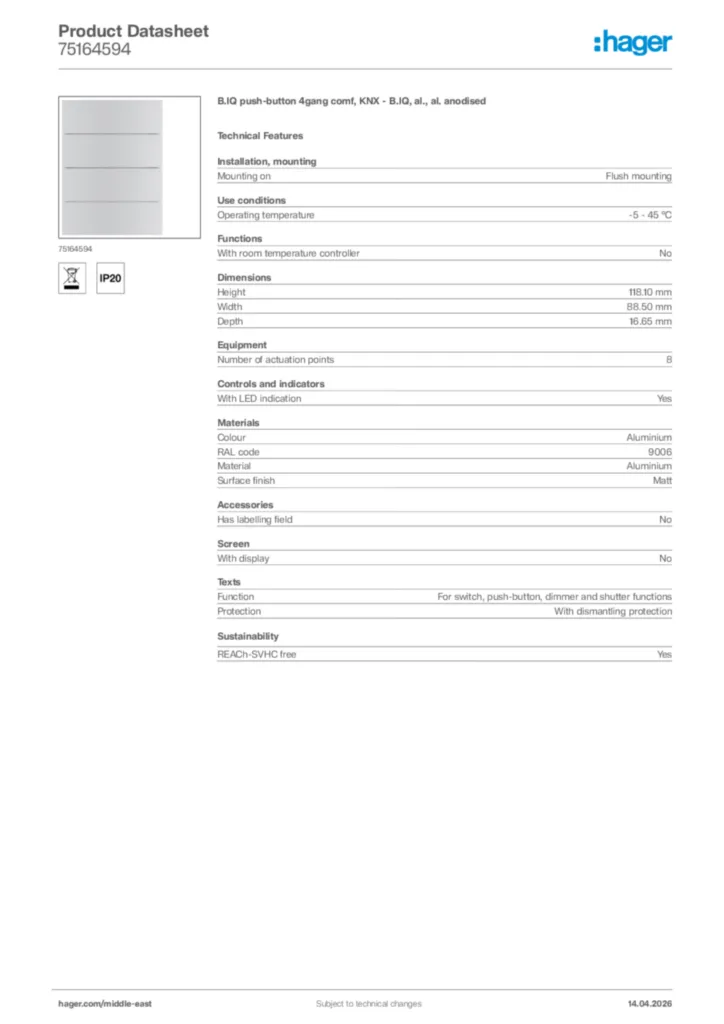

  • Product datasheet

    Image Hager Product data sheet 75164594 | Hager

    Hager Product data sheet 75164594

    B.IQ push-button 4gang comf, KNX - B.IQ, al., al. anodised

    PDF

  • Installation manual

    Image Manual for 751615xx-751625xx-751635xx-751645xx - B.IQ push-button 1gang comfort (DE-EN-NL-NO-ES, 2021-12) | Hager

    Manual for 751615xx-751625xx-751635xx-751645xx - B.IQ push-button 1gang comfort (DE-EN-NL-NO-ES, 2021-12)

    Installation manual International 2004-04-20

    PDF
    400,23 kB

  • Tool

    Image Label templates (DesignPro 2000) for B.IQ touch sensors - 7516xx-7566xx, as from: 2014-01 | Hager

    Label templates (DesignPro 2000) for B.IQ touch sensors - 7516xx-7566xx, as from: 2014-01

    Tool de-DE 2023-10-30

    ZIP
    72,77 kB

  • KNX product database

    Image KNX Database (from ETS2) for 751645xx - B.IQ push-button 4gang comfort (2012-10) | Hager

    KNX Database (from ETS2) for 751645xx - B.IQ push-button 4gang comfort (2012-10)

    KNX product database International 2023-08-25

    VD1
    101,37 kB
    Image KNX Database (from ETS2) for 7516459xx - B.IQ push-button 4gang comfort (2012-10) | Hager

    KNX Database (from ETS2) for 7516459xx - B.IQ push-button 4gang comfort (2012-10)

    KNX product database International 2023-08-25

    VD1
    194,08 kB

  • Application Guide

    Image Application description ETS for 7516159xx-7516259xx-7516359xx-7516459xx - B.IQ push-button comfort (EN, 2004-08) | Hager

    Application description ETS for 7516159xx-7516259xx-7516359xx-7516459xx - B.IQ push-button comfort (EN, 2004-08)

    Application Guide en-GB 2020-01-01

    PDF
    195,58 kB

  • Declaration of conformity

    Image Declaration of Conformity | Hager

    Declaration of Conformity

    Declaration of conformity International 2021-03-05

    PDF
    258,49 kB
    Image Declaration of Conformity | Hager

    Declaration of Conformity

    Declaration of conformity International 2021-03-05

    PDF
    258,73 kB
