    B.IQ push-button 4gang thermostat, display, KNX - B.IQ, p. white, matt, plastic 75664599

    Add to a list
    Add to a list

    Login to create a product list

    You need to be logged into your myHager account to create product lists

    Create an account Sign in

    B.IQ push-button 4gang thermostat, display, KNX - B.IQ, p. white, matt, plastic

    75664599

    • Accessories
    • Technical characteristics
    • Environmental value
    • Documentations
    • More products
    Download the sheet

    Complete your system

    Must-have accessories

    Previous
    Previous
    75040001
    75040001
    Bus coupling unit flush-mtd, KNX
    Add to a list
    Add to a list

    Optional accessories

    • Labelling material for domestic switching devices 1 products available

    Compatible products

    • Referenced by 1 products available

    Complete your system

    • Labelling material for domestic switching devices
    • 75900081

      B.IQlab. field for push-buttons 4gang, B.IQ, clear, trans.
      0.00 €  / *

    Referenced by

    • 75040001

      Bus coupling unit flush-mtd, KNX
      0.00 €  / *

    Technical characteristics

    Installation, mounting
    • Mounting on
      Flush mounting
    Use conditions
    • Operating temperature
      -5 - 45 °C
    Functions
    • With room temperature controller
      Yes
    Dimensions
    • Height
      149.20 mm
    • Width
      88.50 mm
    • Depth
      15 mm
    Equipment
    • Number of actuation points
      10
    Controls and indicators
    • With LED indication
      Yes
    Materials
    • Colour
      Polar white
    • RAL code
      9010
    • Material
      Thermoplastic
    • Surface finish
      Matt
    Accessories
    • Has labelling field
      No
    Screen
    • With display
      Yes
    Texts
    • Function
      For switch, push-button, dimmer, blind and thermostat functions, With valve protection function, Button help function can be activated
    • Operating mode
      Controller operating modes: comfort, standby, night and frost/heat protection mode
    • Protection
      With dismantling protection
    • Temperature
      Temperature measurement via internal Temperature sensor and/or external communication object (weighting ratio parameterisable), Provision of the internal temperature value via communication object

    Environmental value

    We are committed to bettering our environmental performance by reducing our footprint while acting as a sustainability enabler for our customers. Learn More

    RoHS conform Yes
    REACh-SVHC free Yes

    Certifications and documents

    REACH declaration 75664599
    PDF
    RoHS report 75664599
    PDF

    Downloads

    • Image 75664599 | Hager

      Product Image 75664599

    • Product datasheet

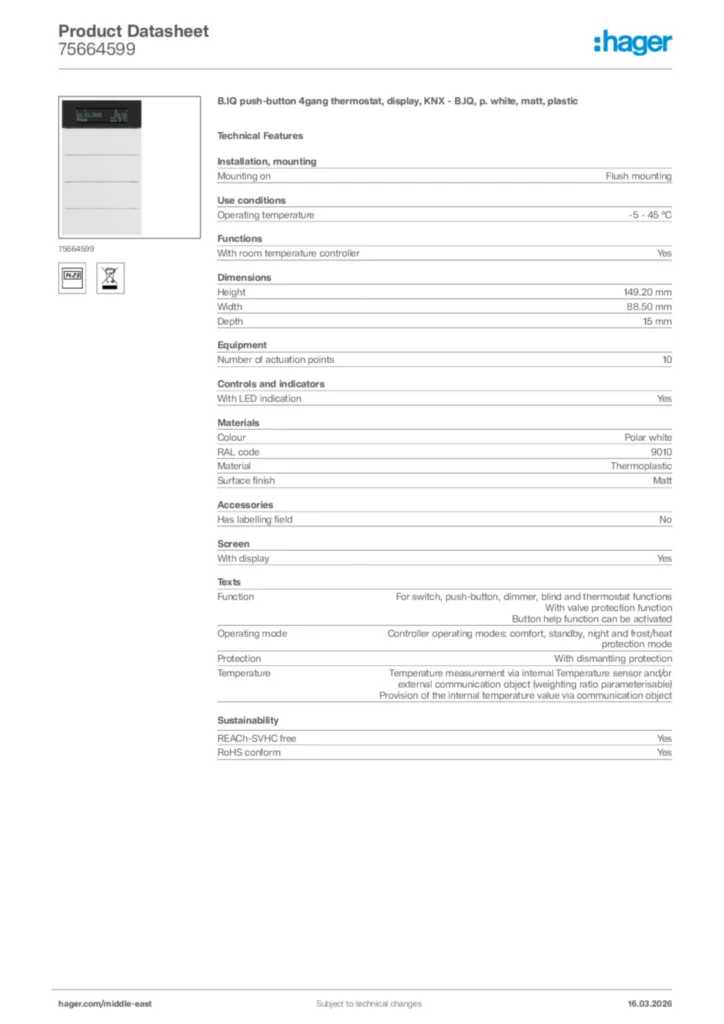

      Image Hager Product data sheet 75664599 | Hager

      Hager Product data sheet 75664599

      B.IQ push-button 4gang thermostat, display, KNX - B.IQ, p. white, matt, plastic

      PDF

    • Installation manual

      Image Manual for 7566xx - B.IQ push-button with thermostat (EN, 2021-01) | Hager

      Manual for 7566xx - B.IQ push-button with thermostat (EN, 2021-01)

      Installation manual en-GB 2007-01-23

      PDF
      2,09 MB
      Image Manual for 7566xx - B.IQ push-button with thermostat (EN, 2021-01) | Hager

      Manual for 7566xx - B.IQ push-button with thermostat (EN, 2021-01)

      Installation manual en-GB 2007-01-23

      PDF
      164,52 kB

    • Tool

      Image Label templates (DesignPro 2000) for B.IQ touch sensors - 7516xx-7566xx, as from: 2014-01 | Hager

      Label templates (DesignPro 2000) for B.IQ touch sensors - 7516xx-7566xx, as from: 2014-01

      Tool de-DE 2023-10-30

      ZIP
      72,77 kB

    • KNX product database

      Image KNX plugin for 7566xx-BIQ - B.IQ push-button with thermostat (V205) | Hager

      KNX plugin for 7566xx-BIQ - B.IQ push-button with thermostat (V205)

      KNX product database en-GB, de-DE 2023-08-25

      EXE
      9,16 MB
      Image KNX plugin for 7566359xx-7566459xx-7566559xx - B.IQ push-button with thermostat (V107B) | Hager

      KNX plugin for 7566359xx-7566459xx-7566559xx - B.IQ push-button with thermostat (V107B)

      KNX product database de-DE 2023-08-25

      ZIP
      7,59 MB
      Image KNX plugin for 7566359xx-7566459xx-7566559xx - B.IQ push-button with thermostat (V107B) | Hager

      KNX plugin for 7566359xx-7566459xx-7566559xx - B.IQ push-button with thermostat (V107B)

      KNX product database de-DE 2023-08-25

      EXE
      6,34 MB
      Image KNX plugin for 7566359xx-7566459xx-7566559xx - B.IQ push-button with thermostat (V108B) | Hager

      KNX plugin for 7566359xx-7566459xx-7566559xx - B.IQ push-button with thermostat (V108B)

      KNX product database en-GB 2023-08-25

      EXE
      7,72 MB
      Image KNX plugin for 7566359xx-7566459xx-7566559xx - B.IQ push-button with thermostat (V108B) | Hager

      KNX plugin for 7566359xx-7566459xx-7566559xx - B.IQ push-button with thermostat (V108B)

      KNX product database de-DE 2023-08-25

      EXE
      6,35 MB
      Image KNX plugin for 7566359xx-7566459xx-7566559xx - B.IQ push-button with thermostat (V108B) | Hager

      KNX plugin for 7566359xx-7566459xx-7566559xx - B.IQ push-button with thermostat (V108B)

      KNX product database en-GB 2023-08-25

      EXE
      6,35 MB
      Image KNX plugin for 7566359xx-7566459xx-7566559xx - B.IQ push-button with thermostat (V108B) | Hager

      KNX plugin for 7566359xx-7566459xx-7566559xx - B.IQ push-button with thermostat (V108B)

      KNX product database de-DE 2023-08-25

      EXE
      7,72 MB

    • Application Guide

      Image Application description ETS for 75663xx-75664xx-75665xx - B.IQ push-button with thermostat (EN, 2007-01) | Hager

      Application description ETS for 75663xx-75664xx-75665xx - B.IQ push-button with thermostat (EN, 2007-01)

      Application Guide en-GB 2020-01-01

      PDF
      200,30 kB
      Image Application description ETS for 756635xx-756636xx-756645xx-756646xx-756655xx-756656xx - B.IQ push-button with thermostat (EN, 2004-09) | Hager

      Application description ETS for 756635xx-756636xx-756645xx-756646xx-756655xx-756656xx - B.IQ push-button with thermostat (EN, 2004-09)

      Application Guide en-GB 2020-01-01

      PDF
      2,39 MB
      Image Application description ETS for 756635xx-756636xx-756645xx-756646xx-756655xx-756656xx - B.IQ push-button with thermostat (EN, 2007-07) | Hager

      Application description ETS for 756635xx-756636xx-756645xx-756646xx-756655xx-756656xx - B.IQ push-button with thermostat (EN, 2007-07)

      Application Guide en-GB 2020-01-01

      PDF
      2,63 MB

    • Declaration of conformity

      Image Declaration of Conformity | Hager

      Declaration of Conformity

      Declaration of conformity International 2021-05-04

      PDF
      269,33 kB
      Image Declaration of Conformity | Hager

      Declaration of Conformity

      Declaration of conformity International 2021-05-04

      PDF
      269,68 kB
