The Hager Gallery pilot wire thermostat offers precise room heating control for residential spaces. Rotary operated, it manages electric heaters via digital pilot wire input, switching up to 8 A at 230 V/50 Hz with a 1NO contact. Adjustable 5-30 °C with a 0.7 K differential for stable comfort. Compact (45×45×30 mm), IP20, polycarbonate, white. Energy efficiency class IV (2%). Ideal for centralized control of electric radiators.
EAN
3250617190046
VPE
1 piece
Gallery Rocker Rotary Dimmer Push & Turn Jet Black RAL9005 Snap-on IP20 WXF316
catalog.lists.product_addition.login_popup.title
catalog.lists.product_addition.login_popup.descriptive_text
product.page.accessories.title
product.page.accessories.must_have_products.title
product.page.accessories.compatible.title
-
product.page.accessories.referenced_by.title 19 product.page.accessories.products-available
product.page.accessories.referenced_by.title
-
WXP0104Frame gallery 4 modules entraxe 71 mm titane, plastic titane metallic
-
WXP9904Plate gallery plastic 4 modules enteraxe 71mm antibacterial
-
WXP9902Plate gallery plastic 1 gang antibacterial
-
WXD316DRocker for pilot thermostat wire dune
-
WXD316NRocker for pilot thermostat wire night
-
WXD316TRocker for pilot thermostat wire titane
-
WXP0002Frame gallery 1-gang pure, plastic white glossy
-
WXP0004Frame gallery 4 modules entraxe 71 mm pure, plastic white glossy
-
WXP0034Frame gallery 4 modules entraxe 57 mm pure, plastic white glossy
-
WXP0102Frame gallery 1-gang titane, plastic titane metallic
-
WXP4004Frame gallery 4 modules entraxe 71 mm moon glass, glass white matt
-
WXP0202Frame gallery 1-gang night, plastic black matt
-
WXP0204Frame gallery 4 modules night, plastic black matt
-
WXP0234Frame gallery 4 modules entraxe 57 mm night, plastic black matt
-
WXP0402Frame gallery 1-gang champagne, plastic golden matt
-
WXP0404Frame gallery 4 modules entraxe 71 mm champagne, plastic golden matt
-
WXP1002Frame gallery 1-gang anthracite, plastic dark grey matt
-
WXP1004Frame gallery 4 modules anthracite, plastic dark grey matt
-
WXP4002Frame gallery 1-gang moon glass, glass white matt
Technical characteristics
Architecture
-
Control/operation elementRotative
Electric current
-
Rated current IN8 A
-
Max. switching current8 A
Voltage
-
Nominal voltage230 - 230 V
Power supply
-
Supply voltage230 V
Frequency
-
Frequency50 - 50 Hz
Settings
-
Comfort temperature setpoint5 - 30 °C
Materials
-
ColourWhite
-
RAL code7011
-
MaterialPolycarbonate (PC)
-
TreatmentUntreated
Dimensions
-
Height45 mm
-
Width45 mm
-
Depth30 mm
Screen
-
With displayNo
Equipment
-
Switching temperature difference0.70 K
-
Type of thermostatDigital with pilot wire input
-
With heaterYes
Connection
-
Type of contacts1NO
Safety
-
Ingress Protection (IP) classIP20
Use conditions
-
Energy efficiency classIV (2%)
Downloads
-
GeneratedProductDatasheet

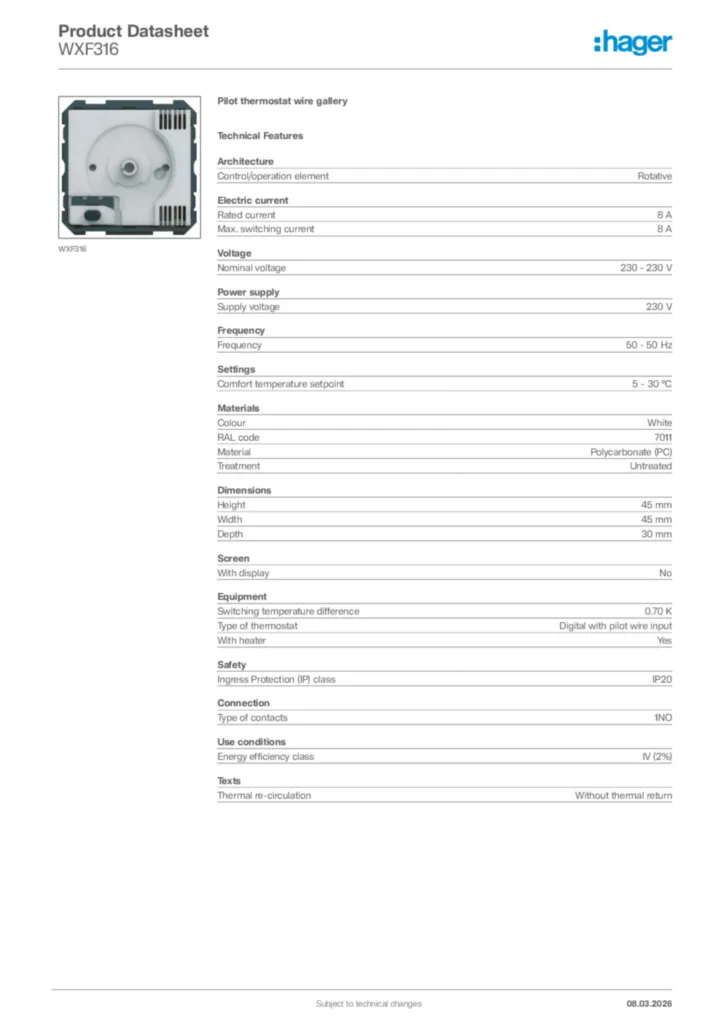

Hager Product data sheet WXF316
Pilot thermostat wire gallery
PDF -
ProductECDeclaration
Declaration of conformity International 2020-01-01
PDF211,44 kB
