Binary input 4 fold, 230V~, modular, KNX TXA304
EAN
3250616049277
Packaging
1 Piece
Login to create a product list
You need to be logged into your myHager account to create product lists
Technical properties
Architecture
-
Bus systemEIB
Settings
-
Supported configuration modeETS, easy
Electric current
-
Number of entry circuits4
Connectivity
-
With bus system KNX radioNo
Equipment
-
External signal voltage necessaryNo
-
Radio frequency bidirectionalNo
-
With batteryNo
-
With HVAC controlNo
Installation, mounting
-
Mounting onDIN rail
Internal use only
-
Number of half modules of 17,5 mm4
Lighting
-
LED controllingNo
Materials
-
MaterialPlastic
-
ColourLight grey
-
RAL code7035
Safety
-
Ingress Protection (IP) classIP20
Use conditions
-
Operating temperature0 - 45 °C
Voltage
-
Input voltage230 - 230 V
-
Operating voltage over bus21 - 32 V
-
Type voltage supplyAC
Dimensions
-
Length35 mm
-
Height90 mm
-
Depth69 mm
Texts
-
Type of connectionWith quickconnect plug-in terminals
Environmental value
We are committed to bettering our environmental performance by reducing our footprint while acting as a sustainability enabler for our customers. Learn More
Certifications and documents
Downloads
-

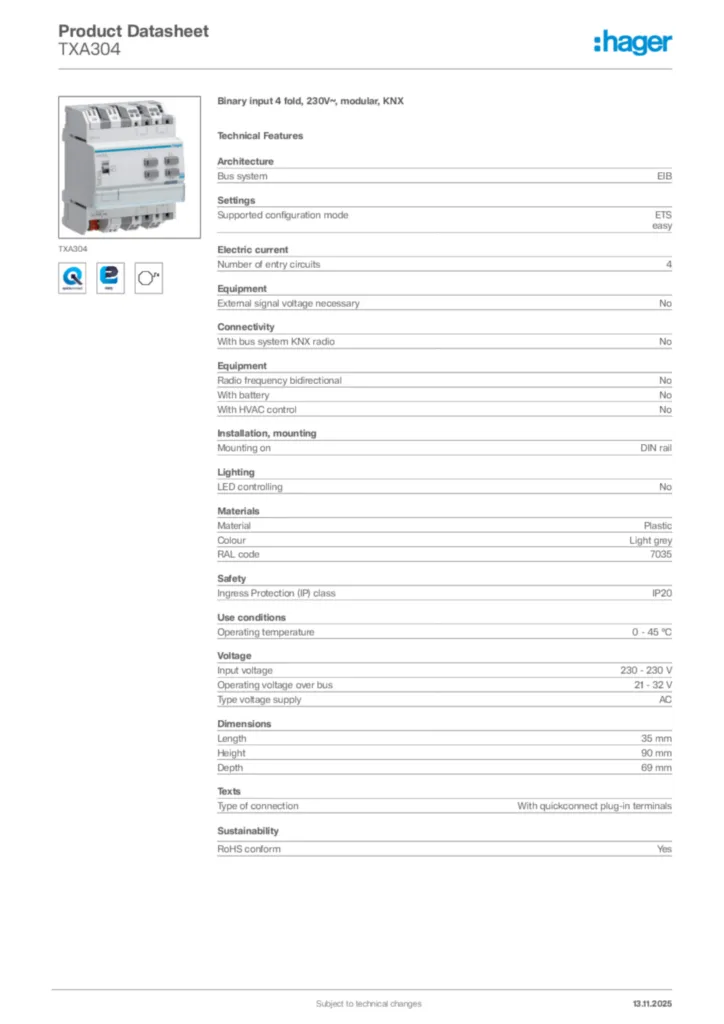

Product datasheet
undefined
PDF
More documentation
