The Hager BG 413 bar/cable-through current transformer converts 400 A to 5 A for accurate metering and protection. Class 1, 5 VA, 50-60 Hz for precise readings. Plug-in with 1.5-6 mm² wiring; 28×40 mm window suits bars/cables; mounts on DIN rail or plate. Robust: 3 kV withstand, 720 V max, -40…40 °C, Ith 60×Ipr, Idyn 2.5×Ith, FS5. Ideal for switchboards and energy monitoring.

EAN

4049857250004

VPE

1 piece

Plug-in Bar/Cable-through CT 600/5A 5VA Class 1, 28mm window, DIN-rail mount SRI04005

Technical characteristics
catalog.pageproduct.title_sustainability.h2

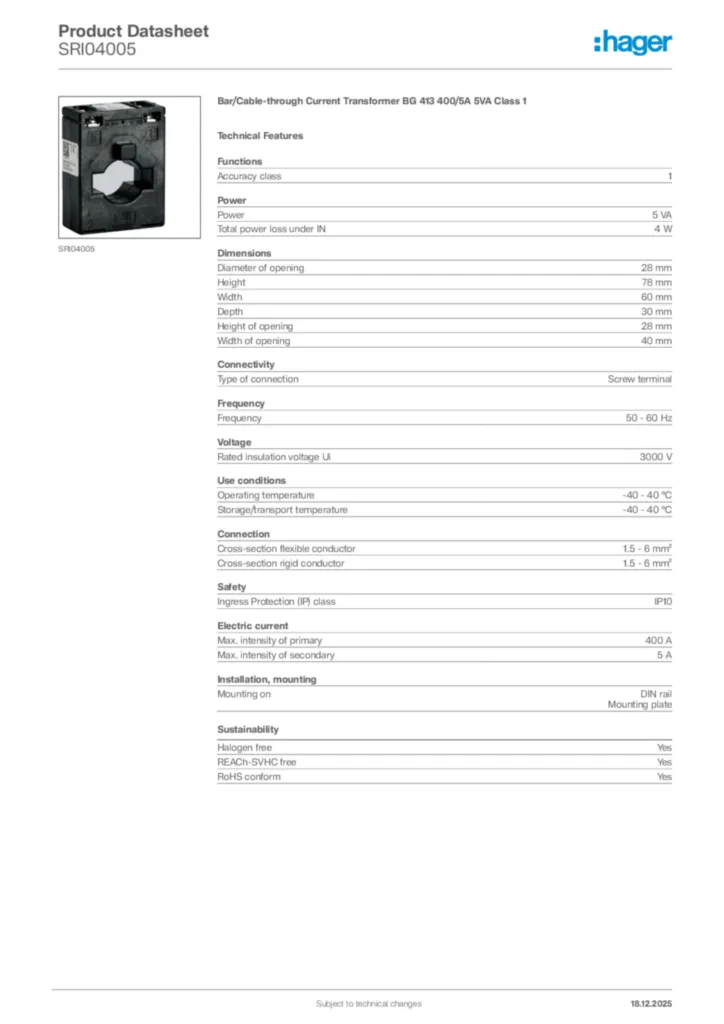

Documentations
More products

Technical characteristics

Filter Type product

Plug-in current transformer

Accuracy class

1

Power

5 VA
Power dissipation at IN

4 W

Diameter of opening

28 mm
Height

78 mm
Width

60 mm
Depth

30 mm
Height of opening

28 mm
Width of opening

40 mm

Type of connection

Wire connection

Frequency

50 - 60 Hz

Rated power-frequency withstand voltage (r.m.s.)

3000 V
Max. operating voltage

720 V

Operating temperature

-40 - 40 °C
Storage/transport temperature

-40 - 40 °C

Cross-section flexible conductor

1.5 - 6 mm²
Cross-section rigid conductor

1.5 - 6 mm²

Ingress Protection (IP) class

IP10
Insulating class

E

Rated primary current (Ipr)

400 A
Rated secondary current (Isr)

5 A
Rated current IN

400 A
Rated continuous thermal current

1,2*Ipr
Rated short-time thermal current (Ith/1s)

60*Ipr
Rated dynamic current

2.5*Ith
Over voltage limiting factor

FS 5

Mounting on

DIN rail, Mounting plate

catalog.pageproduct.title_sustainability.h2

We are committed to bettering our environmental performance by reducing our footprint while acting as a sustainability enabler for our customers. Learn More

RoHS conform Yes

REACh-SVHC free Yes

Halogen free Yes
